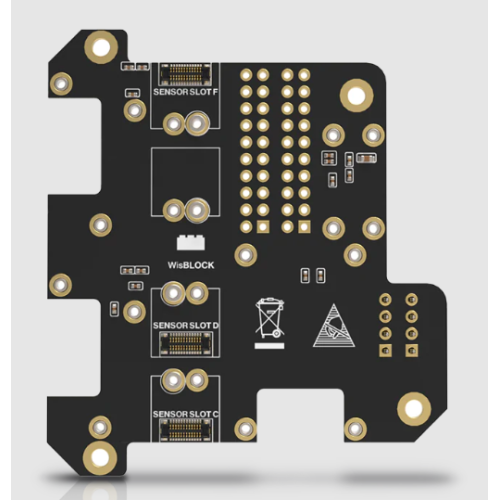

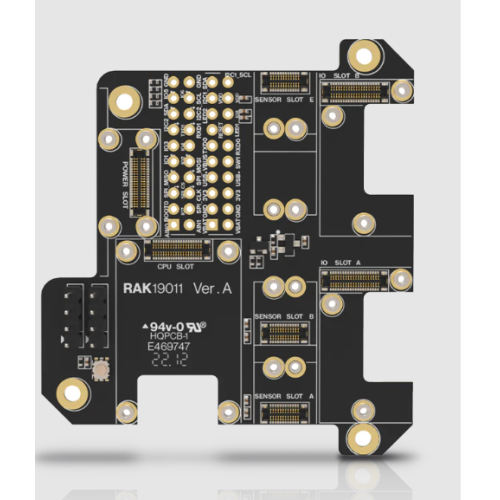

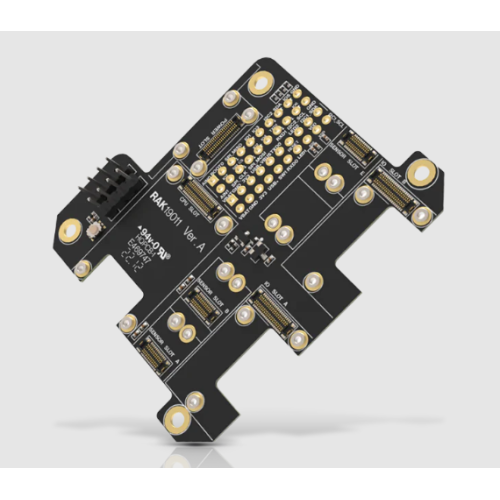

The RAK19011 belongs to our New Series of Base Boards. Featuring one WisBlock Core slot, two IO slot and six Sensor Slots.

The outstanding feature of the RAK19011 is not only its small size, but that it supports a vast variety of power supplies.

This is achieved by separating the power supply from the Base Board. The RAK19011 must be paired with our new Power Boards

RAK19012 - USB, battery and solar panel supply, just like our other Base Boards.

RAK19013 - Battery and solar panel supply without the USB, for applications where you do not want give users access to the devices firmware.

RAK19014 - Optimized for non-rechargeable batteries with a USB connector (coming soon)

RAK19015 - Optimized for non-rechargeable batteries without the USB connector, for applications where you do not want give users access to the devices firmware.

RAK19016 - The solution for variable supply voltages from 5 to 24 V DC. Ideal for industrial applications

RAK19017 - Power supply over an Ethernet cable, POE (coming soon)

Features :

Flexible building block design, which enables modular function realization and expansion
With high-speed interconnection connectors in the WisBlock Base board to ensure the signal
Integrity
Supports multiple types of low power MCUs
Supports six sensor slots and two IO slot
Fulfills Industrial level design
Compact size, the minimum size is: 60x67mm
