WisBlock Kit 1 consists of a Sensor Node to measures air temperature, air humidity, barometric pressure, and environment luminosity values. Transmitting data periodically to a LoRaWan server.
Note: If a non-rechargable battery is used with WisBlock Base Board it has to be unplugged before connecting the USB cable to the port on the board in order to configure the device. Not doing so might damage the battery and cause damage to the battery and board.
Application:
- WisBlock Kit 1 is used to track and monitor the weather in the location you want.
- Use WisBlock Kit 1 to measure air temperature, air humidity, barometric pressure, and environment luminosity values. With WisBlock Kit 1 you can gather the data that you need to learn more about the weather conditions in your chosen location. This kit can also transmit whatever data it acquires to a LoRaWAN® server regularly.
- WisBlock Kit 1 uses a sturdy enclosure that helps it withstand weather complications without a hitch.
Features:
RAK5005-O
- Easy Plug'n'Play slots for WisBlock Core MCU, WisBlock Sensor, and other WisBlock modules
- Small form factor
- Supports 3 different power supply sources
- Optimized for low power consumption applications
- I2C, UART, GPIO's an analog input accessible with solder contacts
- 2 user-definable LED's
- Reset button
- USB debug port
- 1 slot for WisBlock Core MCU
- 4 slots for WisBlock Sensor sensor modules
- 1 slot for another WisBlock extension modules
RAK4631
- LoRaWan® 1.0.2 protocol stack (supports Class A & C)
- Bluetooth Low Energy 5.0 protocol stack
- Nordic nRF52840
- Wide range of connections
- Semtech SX1262
RAK1901
- Using the Sensirion SHTC3 temperature & humidity sensor
- Low power consumption
- Small form factor
- ±2.0 °C temperature accuracy
- -40 to +125 °C temperature range
- ±2.0 % RH humidity accuracy
- 0 to 100% humidity range
RAK1902
- Using the ST KPS22HB barometric pressure sensor
- Low power consumption
- Small form factor
- Pressure range 260-1260 hPa
- Low power consumption of 3uA
RAK1903
- Using the TI OPT3001DNPR light sensor
- Low power consumption
- Small form factor
- Measurement range from 0.01 lux to 83865 lux
- Optical filtering to match the human eye
- Low power consumption of 1.8uA
Software Example Code
Weather Monitororing using wisblock Modules
- RAK5005-O Datasheet
- RAK4631 Datasheet
- RAK1901 Datasheet
- RAK1902 Datasheet
- RAK1903 Datasheet

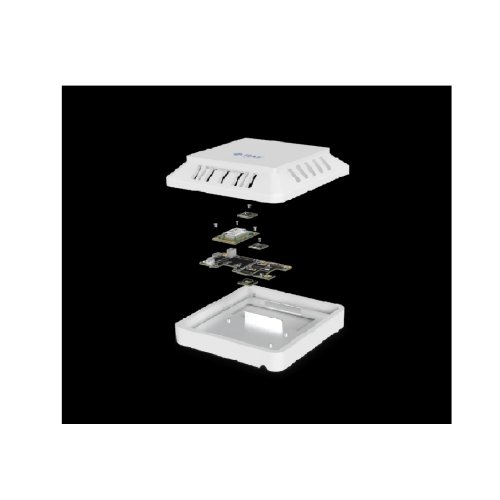

- Assembly Instructions

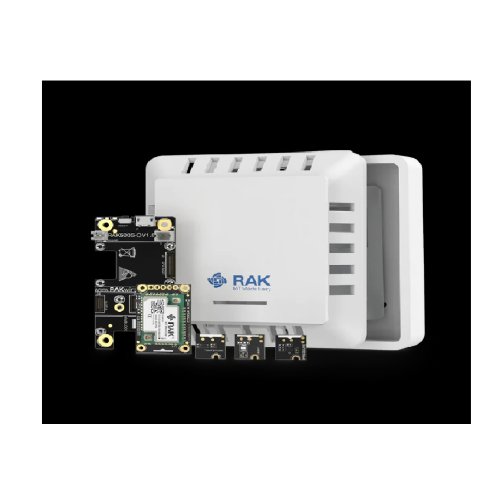

Package Includes:
- 1 x RAK5005-O
- 1 x RAK4631
- 1 x RAK1901
- 1 x RAK1902
- 1x RAK1903
- 1 x RAKBox-B3
- 1 x LoRa Antenna
- 1 x BLE Antenna
WisBlock Kit 1- Indoor Ambient Monitor
- Brand: Rakwireless
- Product Code:NR-RAK-WisBlock-Kit-1-Indoor
- Reward Points:75
- Availability:In Stock
-
रo 7,510.00
- Price in reward points:7510
-
- 2 or more रo 7,450.00
- 4 or more रo 7,390.00
- 10 or more रo 7,330.00
- 20 or more रo 7,270.00
