This is WiFi serial transceiver module, based on ESP8266 SoC. The SOC has Integrated TCP/IP protocol stack.

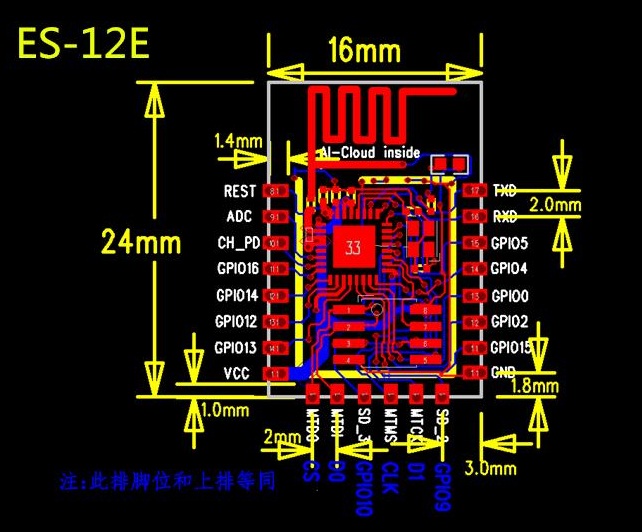

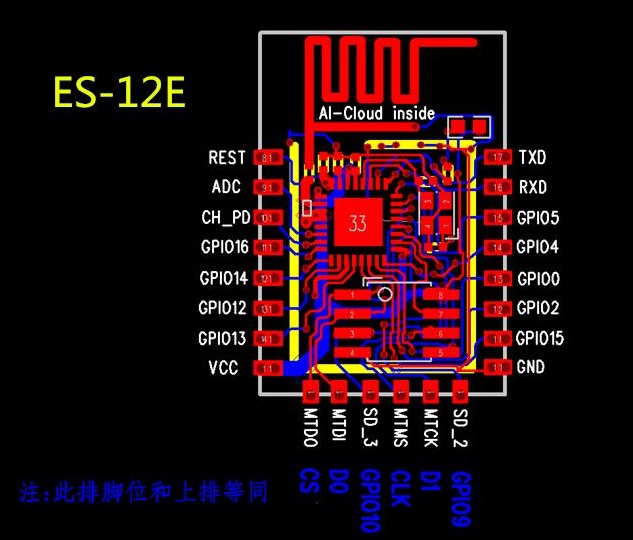

Please note this is ESP-12E which replaces ESP-12
ESP8266 is a highly integrated chip designed for the needs of a new connected world. It offers a complete and self-contained Wi-Fi networking solution, allowing it to either host the application or to offload all Wi-Fi networking functions from another application processor.
ESP8266 has powerful on-board processing and storage capabilities that allow it to be integrated with the sensors and other application specific devices through its GPIOs with minimal development up-front and minimal loading during runtime. Its high degree of on-chip integration allows for minimal external circuitry, and the entire solution, including front-end module, is designed to occupy minimal PCB area.
You can purcharse the break-out board for ESP-12 for making it breadboard compatible
Corresponding Interface:
- SDIO 2.0, SPI, UART
- 32-pin QFN package
- Integrated RF switch, balun, 24dBm PA, DCXO, and PMU
- Integrated RISC processor, on-chip memory and external memory interfaces
- Integrated MAC/baseband processors
- Quality of Service management
- I2S interface for high fidelity audio applications
- On-chip low-dropout linear regulators for all internal supplies
- Proprietary spurious-free clock generation architecture
- Integrated WEP, TKIP, AES, and WAPI engines

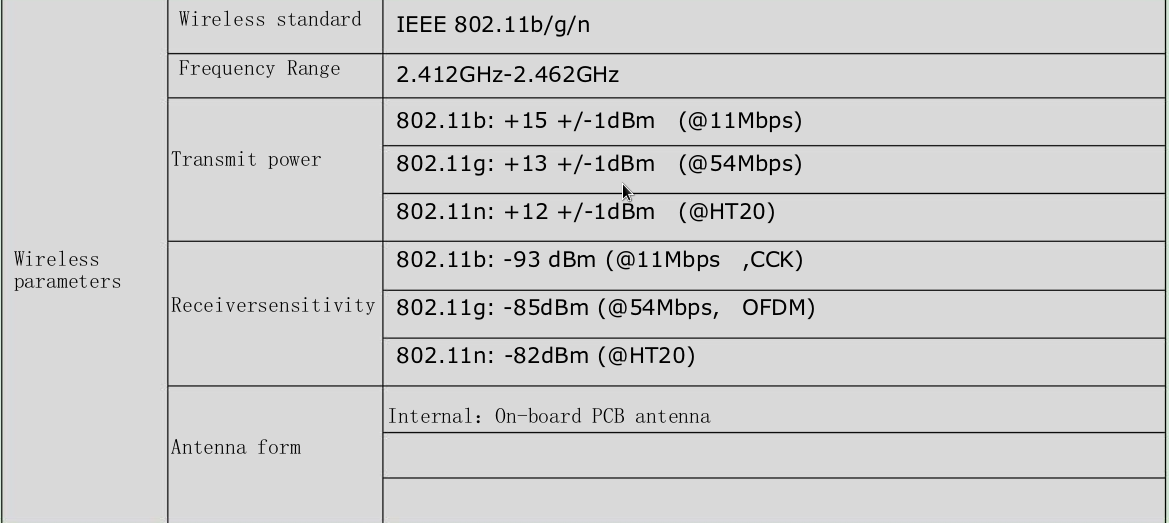

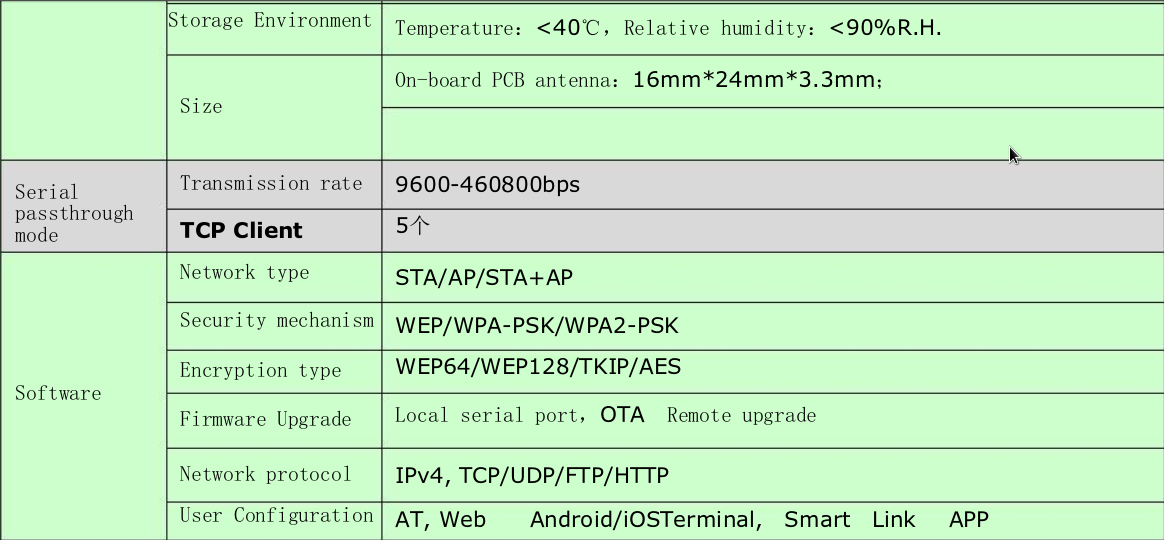

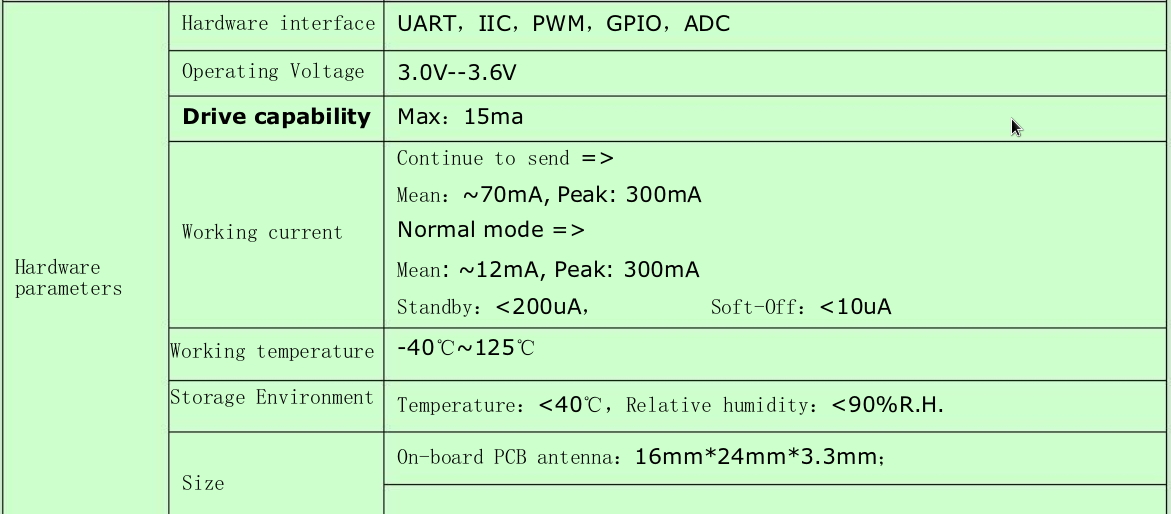

Specification:
- 802.11 b/g/n
- Wi-Fi Direct (P2P), soft-AP
- Integrated TCP/IP protocol stack
- Integrated TR switch, balun, LNA, power amplifier and matching network
- Integrated PLLs, regulators, DCXO and power management units
- +19.5dBm output power in 802.11b mode
- Power down leakage current of <10uA
- Integrated low power 32-bit CPU could be used as application processor
- SDIO 1.1/2.0, SPI, UART
- STBC, 1×1 MIMO, 2×1 MIMO
- A-MPDU & A-MSDU aggregation & 0.4ms guard interval
- Wake up and transmit packets in < 2ms
- Standby power consumption of < 1.0mW (DTIM3)
Resources:
- Arduino Code
- For detailed information on this module visit here

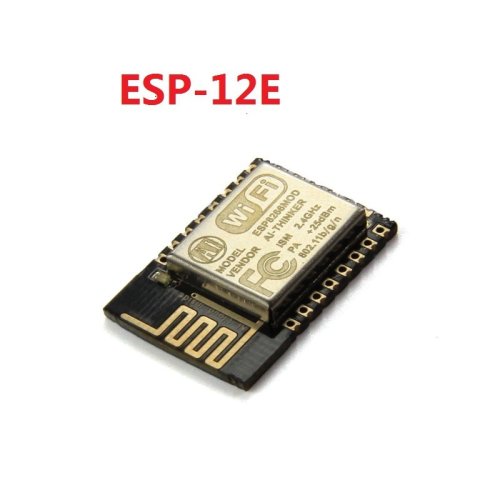

WiFi Serial Transceiver Module - ESP8266 ESP-12E
- Brand: Espressif Systems
- Product Code:PRC-WiFi-Srl-Trnscv-ESP8266-ESP12
- Reward Points:3
- Availability:In Stock
-
रo 302.00
- Price in reward points:302
-
- 50 or more रo 300.00
- 100 or more रo 297.00
- 245 or more रo 295.00
- 490 or more रo 292.00
