SIM7600X 4G Communication Module, Multi-Band Support, Compatible With 4G/3G/2G, With GNSS Positioning, 4G Module Optional

SIM7600X 4G Module

Supports 4G/3G/2G Communication And GNSS Positioning

Standard version

• 3× IPEX antenna connector, comes with 2× yellow pin header and FPC antenna

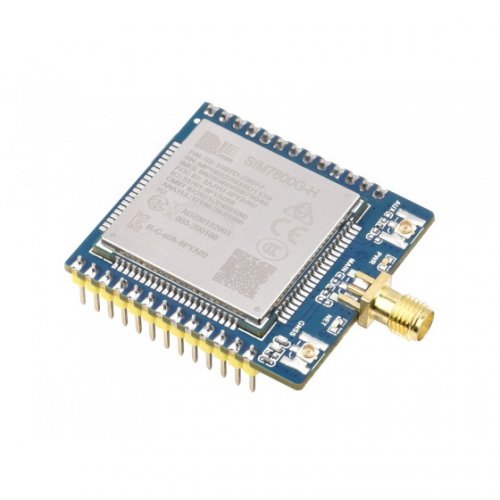

Pre-soldered version

• pre-soldered SMA main antenna connector and pin header, comes with SMA antenna

Features:

• Compatible with 2G/3G/4G network
• Supports dial-up, telephone call, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
• Supports GPS, BeiDou, Glonass, GALILEO, QZSS, LBS base station positioning
• Onboard USB and UART interface, for dial-up Internet access, cloud platform communication, GNSS positioning, etc.

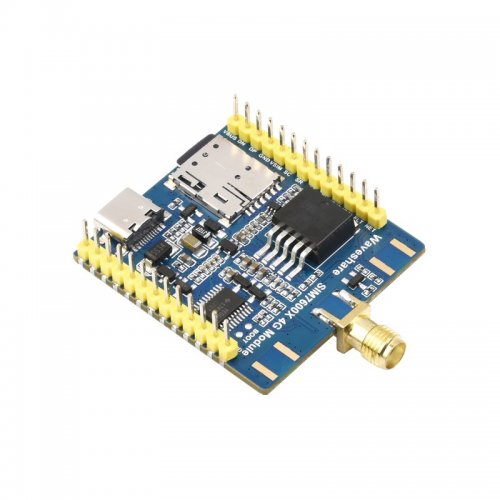

• Castellated holes with immersion gold design, small size, easy to integrate into the device by soldering directly or inserting via the pin header
• Adapting USB/UART/SIM card/GPIO control pins, easy to develop and debug, better expansibility
• Built in voltage translator, compatible with 3.3V/5V MCU motherboards such as STM32/ESP32/Arduino
• Supports multiple power supply methods: USB port, VIN pin, and VBAT pin (for 3.7V lithium battery)
• Onboard multiple protection circuits: TVS protection for SIM card, power supply isolation between the USB port and pin header, VIN pin power supply anti-reverse, and so on, more safe and reliable
• 2x LED indicators, easy to monitor the operating status
• Adopts SIMCOM recommended power supply solution, supports 5~26V wide voltage power supply and 3A high current output, to prevent the module from dropping and restarting due to the large instantaneous power consumption, more stable and reliable in industrial use.
• Onboard Nano SIM card slot, supports 1.8V and 3V SIM cards, near the edge of the board design, for easy accessing SIM card
• Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
• Adapting 3-ch antenna connector, IPEX antenna connector version and SMA connector version optional, supports mass customization

Specifications:

Compatible With Multiple Platforms

• Raspberry Pi
• Raspberry Pi Pico
• Jetson Nano
• ESP32
• Arduino
• STM32

Cloud Communication

• Supports Communication Protocols Including
• TCP, UDP, MQTT, MQTTS, FTP, FTPS, HTTP, HTTPS...

Pinout:

Documentation:

• Wiki

Package Includes:

• SIM7600X 4G Module
• 1 x OPTIONS SIM7600X 4G Module standard version
• 1 x FPC antenna
• 2 x 13PIN straight pin header
• SIM7600X 4G Module (B)

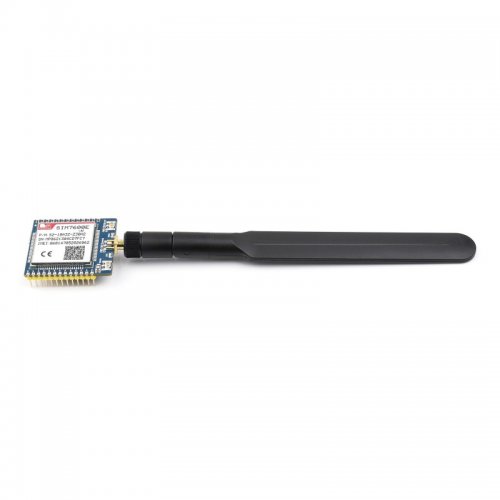

• 1 x OPTIONS SIM7600X 4G Module pre-soldered version
• 1 x 4G antenna
