Based on Raspberry Pi CM4, this is an industrial expansion module with a UPS module, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allowing additional 4G / 5G wireless communication modules to be connected via the M.2 or Mini-PCIe socket. There are also industrial interfaces/resources including RS485, CAN, and RTC. Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in the industrial automatic control system, and more.

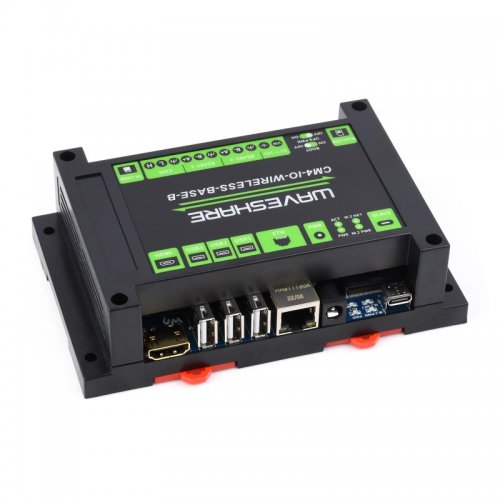

Industrial IoT Module Based On CM4 With UPS Module

• Suitable For IoT Applications Like IoT Getaway, Wireless Router, Intelligent Data Acquisition...
• 4G/5G Support, Multi Interfaces, Onboard UPS Module

• This is an industrial expansion module based on Raspberry Pi CM4 with UPS module, which features common interfaces such as Gigabit Ethernet, HDMI, USB, and GPIO, allows additional 4G / 5G wireless communication modules to be connected via the M.2 B KEY socket. There are also industrial interfaces/resources including RS485, CAN, and RTC.

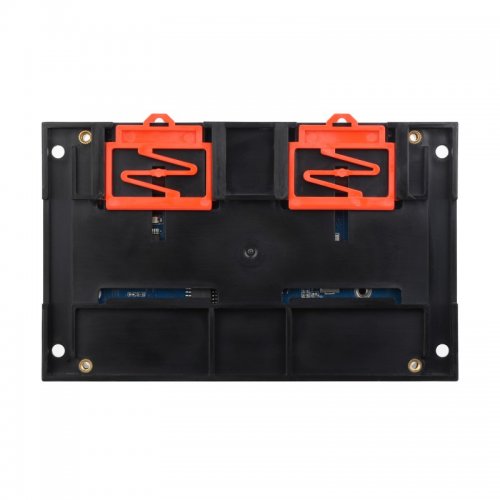

• Combined with the industrial rail-mount protection case, the module is an ideal choice for building IoT gateway, 4G/5G router, IoT data acquisition, or even the PLC device in industrial automatic control system, and more.

Specifications

• CM4 SOCKET: suitable for all variants of Compute Module 4

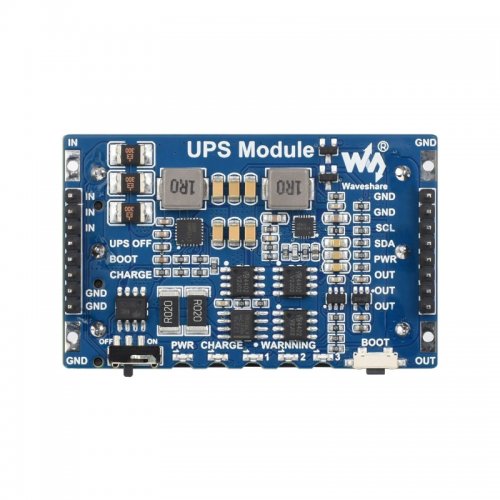

• UPS POWER: UPS Module, 5V/2.5A (Max) output, supports 3 × 10440 lithium batteries (NOT included)
• NETWORKING:
• Gigabit Ethernet RJ45
• M.2 B KEY, for connecting 5G / 4G wireless module
• Nano-SIM card slot, supports standard Nano-SIM card for 5G/4G/3G/2G communication
• USB: USB 2.0 × 3
• PIN HEADER: Non-isolated RS485 × 2, Non-isolated CAN × 1, Partial GPIO pins
• CAMERA: MIPI CSI-2 × 1 (15pin 1.0mm FPC connector)
• VIDEO: HDMI × 1, supports 4K 30fps output
• RTC: Real-time clock with battery socket and ability to wake Compute Module 4
• STORAGE: TF card socket for Compute Module 4 Lite (without eMMC) variants
• FAN HEADER: 5V/12V, allows speed adjustment and measurement
• POWER INPUT: 5V or 7~36V
• DIMENSIONS: 145 × 90 × 40mm

Note: An additional communication module is required to enable 5G/4G/3G/2G cellular network, recommended: SIM7600G-H-M.2, SIM8202G-M2, SIM8200EA-M2

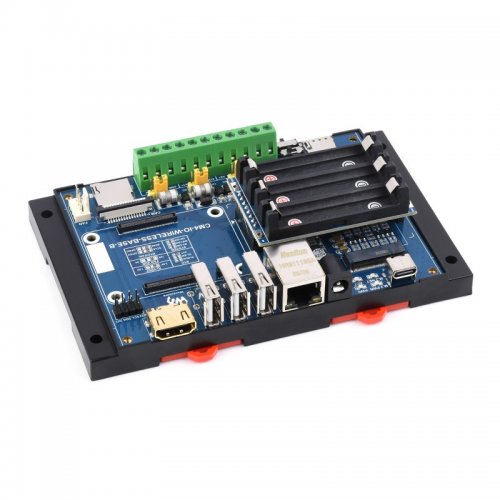

What's On Board

Documentation:

• wiki

Package Includes:

• 1 x CM4-IO-WIRELESS-BASE-B
• 1 x Screwdriver
• OPTIONS 4G module
• 1 x SIM7600G-H-M.2
• 1 x 12V 2A power adapter
• 1 x PCB antenna (IPEX connector)
