USB to CAN Adapter, Dual-Channel CAN Analyzer, Industrial Isolation.

Features At A Glance

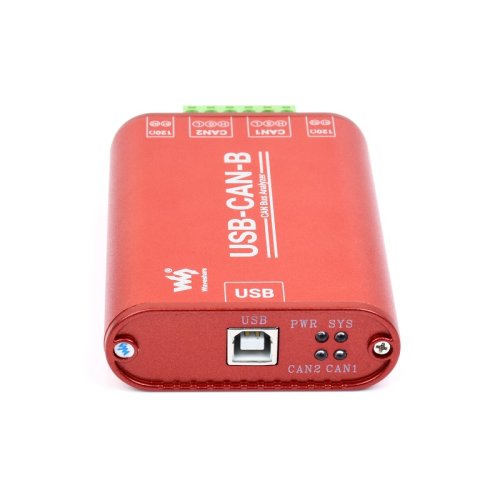

USB-CAN-B is an industrial high-performance USB to CAN adapter, CAN-bus communication interface card and CAN protocol data analyzer. Integrating dual independent channels with electrical isolation and multiple protection circuits. Supports Windows and Linux systems, comes with drivers, CANTools related software, secondary development examples and tutorials. It can be connected to the PC or industrial control host via USB port to realize transceiver control, data analysis, collection and monitoring of CAN bus network. Compact in size and easy to use, which can be used for learning and debugging of CAN bus, and secondary developmentand integration into various industrial, power communication and intelligent control applications that require CAN bus communication.

Specifications :

PRODUCT TYPE	Industrial grade: USB to CAN interface converter/CAN-bus communication interface card/CAN protocol data analyzer
USB	Operating voltage	5V (directly powered by USB port without external power supply)
	Connector	USB-B
	Protection	Power and signal fully isolation, 2500V DC isolation, ±8KV electrostatic discharge
CAN INTERFACE	CAN channel	Dual-channel: CAN1 and CAN2 (independent and isolated)
	Connector	CAN bus screw terminal
	Protection	Built-in GDT Ceramic discharge tube, can effectively release surge current
		Built-in EPCOS Common mode Choke, can improve anti-interference ability
		Built-in power and signal isolation module, 2500V DC isolation, ±8KV electrostatic discharge
	Terminal resistor	Each CAN channel has two built-in 120Ω terminal resistors, which can be enabled by switch
	Baud Rate	10Kbps~1Mbps
	Protocol Support	CAN2.0A, CAN2.0B, CANOpen, SAE J1939, DeviceNet, iCAN, ISO 15765 protocol
	Hardware Support	Single-wire CAN, High-speed CAN, Low-speed/Fault-tolerant CAN
	Transfer speed	The receiving and sending of each CAN channel can reach: 8500 frames/s
	Transmit buffer	2000 frames receiving buffer and 1000 frames sending buffer per channel (automatically retransmit when transmission fails)
INDICATORS	PWR	Red power indicator, light up when there is USB connection and voltage is detected
	TXD	Green TX indicator, light up when the USB port sends data
	RXD	Blue RX indicator, light up when the device ports send data back
CASE MATERIAL	Aluminum alloy case + 3D flame-retardant insulating sheets on both sides
DIMENSIONS	104 x 70 x 25 mm
OPERATING TEMPERATURE	-40~85℃
SYSTEM SUPPORT	Windows	Windows XP/7/8/10/11 (32/64 bits)
SYSTEM SUPPORT	Linux	Raspberry Pi OS, Ubuntu (Jetson Nano), VMware virtual PC and so on.

Supports Protocol Conversion

Between USB And CAN Bus

Adopt High-Speed USB2.0 Interface, Compatible With USB 1.1 And USB 3.0

Dual CAN Bus Interfaces Support Two-Way Transmission, Can Work Independently Without Affecting Each Other

Baud Rate Programmable, Support Automatic Detection

CAN Baud Rate Is Configurable In The Range Of 10Kbps-1Mbps

Supports Baud Rate Calculation, Auto-Detection, And Setting Via The Configuration Tool

Support Decoding And Analyzing For Multiple CAN Protocols

Support CAN 2.0A, CAN 2.0B, CANOpen, SAE1939, DeviceNet, ICAN, ISO 15765 Protocols

Support Single-Wire CAN, High-Speed CAN And Low-Speed/Fault-Tolerant CAN

CAN2 Can Be Set As Hig-Speed CAN Or Low-Speed/Fault-Tolerant CAN By The Software.

Support Various Development Environments

Provide examples for secondary development projects on various mainstream development platforms: C++Builder, C#, VC, VB, VB.NET, Delphi, LabVIEW, LabWindows/CVI, Q, Matlab, Python/Python-can, Qt samples under Linux

Support Windows And Linux System

Support Windows XP/7/8/10/11 and Linux systems such as Raspberry Pi OS and Ubuntu under Jetson Nano, provide corresponding driver libraries, development examples and usage tutorials, convenient for entry and secondary development
