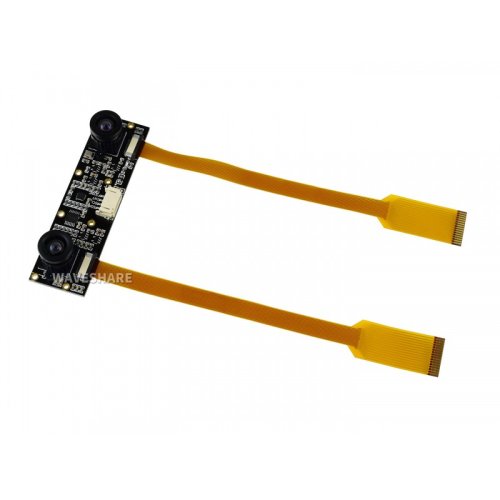

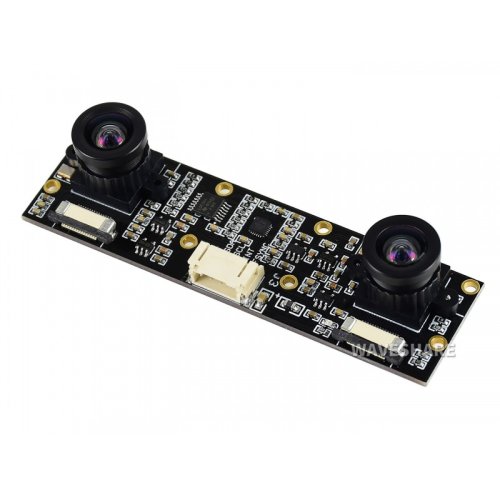

Binocular Stereo Vision Camera Module

IMX219 | 8 Megapixels

Features:

• Adopts IMX219 chip, onboard dual 8Megapixels cameras
• Suitable for AI vision applications like depth vision and stereo vision
• Supports Raspberry Pi 5 and Raspberry Pi CM3/CM3+/CM4 base boards like Compute Module IO Board Plus, Compute Module POE Board, etc
• Supports Jetson Nano, Jetson Xavier NX, Jetson Orin NX, and Jetson Orin Nano, etc.

Specifications:

PIXELS	8 Megapixels
Sensor	IMX219
Cameras	CMOS size	1/4inch
	APERTURE (F)	2.4
	Resolution	3280 × 2464 (per camera)
	Focal Length	2.6mm
	FIELD OF VIEW	83°(D) 73°(H) 50°(V)
	DISTORTION	< 1%
	Baseline Length	60mm
ICM20948	Accelerometer	Resolution: 16-bit
		Measuring Range (configurable): ±2, ±4, ±8, ±16g
		Operating Current: 68.9uA
	Gyroscope	Resolution: 16-bit
		Measuring Range (configurable): ±250, ±500, ±1000, ±2000°/sec
		Operating Current: 1.23mA
	Magnetometer	Resolution: 16-bit
		Measuring Range: ±4900μT
		Operating Current: 90uA
Dimensions	24 × 85mm
Applications	AI vision applications like depth vision and stereo vision.

Multiple Motherboards Support

Compatible With Raspberry Pi 5, CM3/3+/4 and Jetson Series Boards

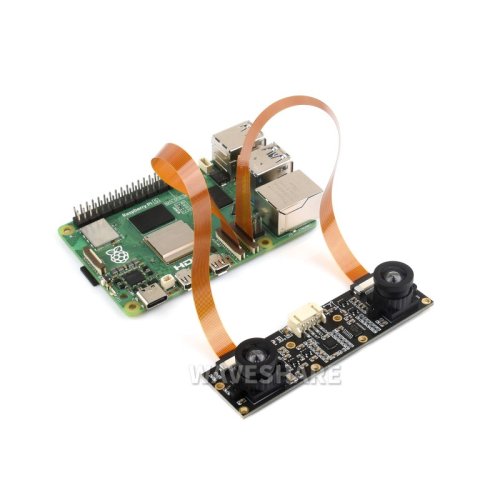

Connecting with Raspberry Pi 5



Connecting with CM4 IO Board



Connecting with Jetson Nano Kit



WIKI: www.waveshare.com/wiki/IMX219-83_Stereo_Camera

Package Includes:

• IMX219-83 Stereo Camera x1
• FPC 15pin 2PCS x1
• FPC 15pin to 22pin 2PCS x1
• PH2.0 4PIN wire x1
