PCIe TO USB 3.2 Gen1 HAT+ for Raspberry Pi 5, onboard 4x USB connectors, driver-free, plug-and-play, 4x high-speed USB ports, HAT+ standard.

PCIe To USB 3.2 Gen1 HAT For Raspberry Pi 5, PCIe To USB HUB, 4x High Speed USB Ports, Driver-Free, Plug And Play, HAT + Standard

PCIe TO USB 3.2 Gen1 HAT

Designed for Raspberry Pi 5, driver-free, plug and play

Connecting To PI5 Via 16PIN Cable

Based On 16PIN PCIe Interface Of Raspberry Pi 5

Note: for reference only, please refer to the Package Content for detailed part list

More USB Capability For Raspberry Pi 5

• Extends The PCIe Interface To 4x High Speed USB 3.2 Gen1 Ports For Connecting More Peripherals

Onboard Power Monitoring Chip And EEPROM

Real-Time Monitoring Of Power Status, Supports USB Port Power Control Via Software

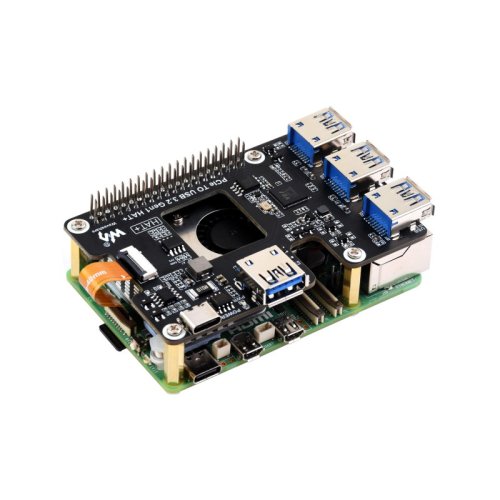

Reserved Airflow Vent For Cooling Fan

Better Cooling Effect For Pi5, More Stable Operation

for reference only, the Raspberry Pi 5 and cooling fan are NOT included

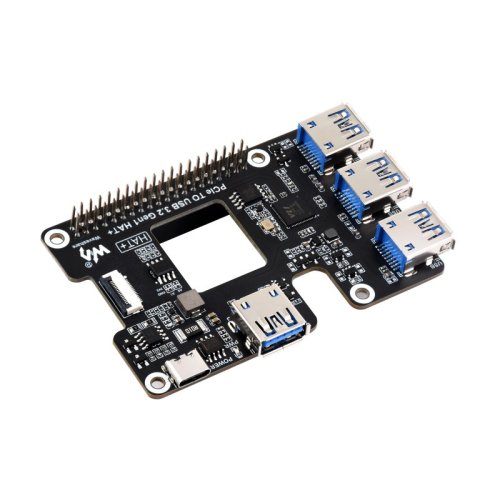

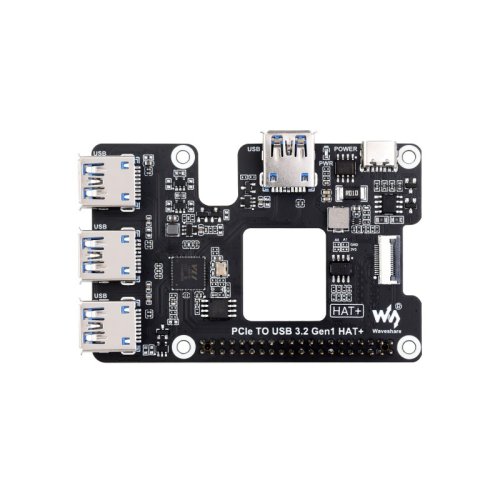

What's On Board:

• 1. Raspberry Pi GPIO header
• for connecting Raspberry Pi 5
• 2. USB 3.2 Gen1 expanded ports
• USB1~USB4
• 3. INA219
• Power monitoring chip
• 4. Power port
• for external Type-C 5V DC power supply
• 5. PWR LED
• Power indicator
• 6. MX25L3206
• FLASH chip
• 7. VL805
• PCIe to USB 3.2 Gen1 HUB
• 8. PCIe interface
• for connecting to the PCIe interface of Raspberry Pi 5

Features:

• PCI-E×1 Gen2 mode.
• Only support PI5B.
• Equipped with VL805 original high-performance main control chip.
• Reserved airflow vent for cooling fan, better cooling effect for Raspberry Pi 5, more stable performance.
• Support USB power control.

Note

• PCIE interface is not enabled on the Raspberry Pi by default.

Documentations:

• Wiki

Package Includes:

• 1 x PCIe TO USB 3.2 Gen1 HAT+
• 1 x Standoff pack
• 1 x 16P-Cable-40mm
