This is a USB TO TTL (D) converter, connecting the USB connector of the PC or other devices to the device with TTL logic level for data communication, for example, such as microcontrollers, sensors, etc.

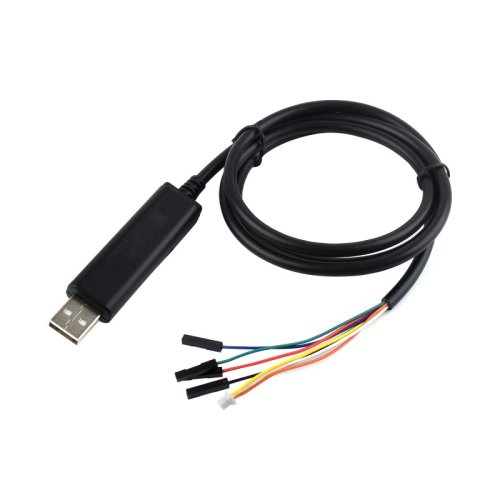

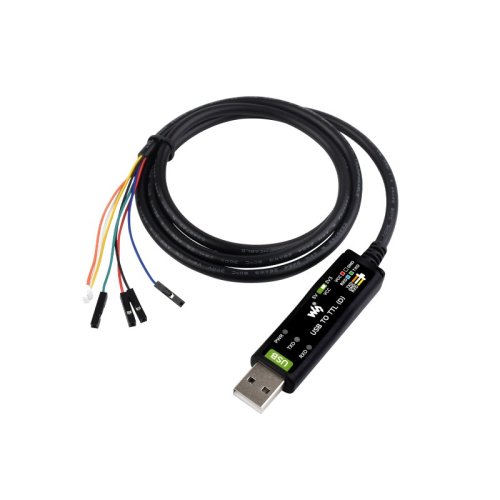

Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, With Separated 4pin Header + SH1.0 3PIN Connector, Suitable For Raspberry Pi 5 Serial Port Debugging
Industrial USB To TTL Serial Cable Type D
Original FT232RNL | Stable Transmission | Multi Devices | Multi Systems
Suitable for serial port debugging of industrial equipments, supports Raspberry Pi 5
Industrial USB TO TTL serial cable, adopts original FT232RNL chip, onboard power supply and signal indicators, supports 3.3V/5V voltage level switching, built in self-recovery fuse, ESD and IO protection diode circuits, etc. It is compact in size, suitable for serial port debugging of industrial equipments and can be directly connected to the Raspberry Pi 5.
Specifications:
- PRODUCT CATEGORY: Industrial USB TO TTL serial cable
- CHIP SCHEME: FTDI original FT232RNL
- HOST PORT: USB
- DATA RATE: 300bps ~ 3Mbps
- DEVICE PORT: UART
- USB PORT: Connector: USB-A
- Protection: self-recovery fuse, ESD protection
- UART PORT: Connector: separated 4pin female header + SH1.0 3PIN fool-proof connector
- Protection: IO protection diode
- INDICATOR PWR: power indicator, turns on when there is USB connection and voltage is detected
- TXD: TX indicator, turns on while the USB port is sending data
- RXD: RX indicator, turns on while the device port is sending data back
- CABLE Black, PVC sheath, total length 1m
Onboard Original Chips:
- Adopts Original FT232RNL Chips, Providing Better Stability And Compatibility

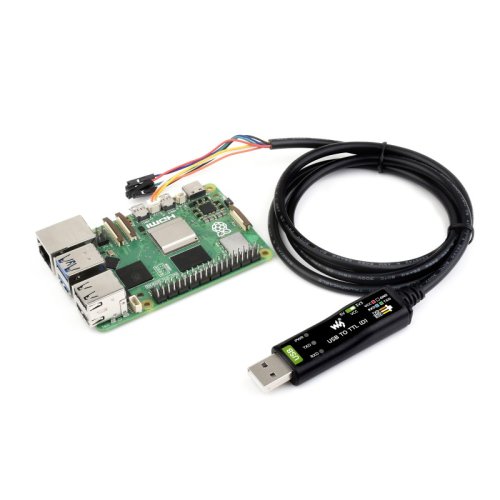

Raspberry Pi UART Debugging:
- Suitable For Raspberry Pi, Supports Multiple Connection Methods
- Connect to PI5 UART Debug Connector Via SH1.0 3PIN cable
Connect To Raspberry Pi 40PIN GPIO UART Interface Via Separated 4PIN Header
Note: for reference only, the Raspberry Pi 5 is not included.
Multiple Systems Support:
Compatible With Popular Systems Like Win7/8/8.1/10/11, Mac, Linux, Android...

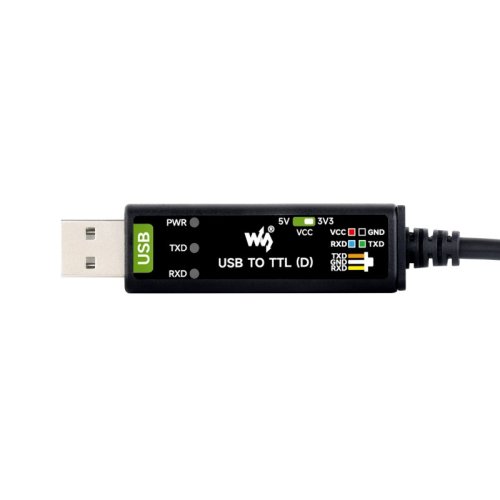

Three LED Indicators:
Easily Checking The Operating Status, Convenient For Programming / Debugging
Pinouts Definition:
VCC: 3.3V or 5V output, configured by switch
GND: Ground
TXD Connecting to MCU.RXD (signal direction: MCU.RX < < FT232 < < PC.TX)
RXD: Connecting to MCU.TXD (signal direction: MCU.TX > > FT232 > > PC.RX)
Documents:
Package Includes
- 1 x USB TO TTL (D)
Waveshare 26738 Industrial USB TO TTL (D) Serial Cable, Original FT232RNL Chip, Multi Protection Circuits, Multi Systems Support, Suitable For Raspberry Pi 5 Serial Port Debugging
- Brand: Waveshare Electronics
- Product Code:WaveS-Industrial-USB-TO-TTL-(D)
- Reward Points:7
- Availability:In Stock
- रo 782.00
-
रo 657.00
- Price in reward points:782
-
- 20 or more रo 776.00
- 40 or more रo 770.00
- 100 or more रo 763.00
- 200 or more रo 757.00
