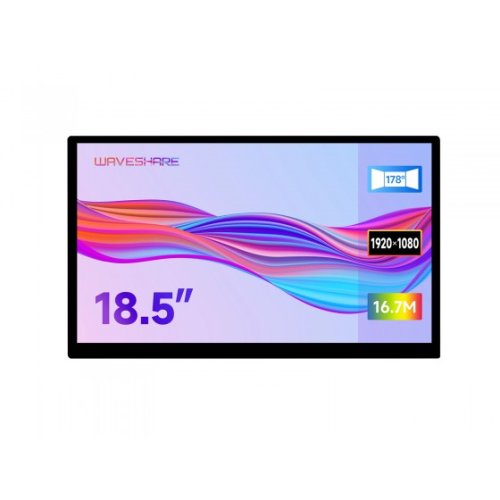

18.5inch Capacitive Touch Display, 1920×1080 Full HD, Brightness adjustable, Optical Bonding Toughened Glass Panel, Supports Raspberry Pi / Jetson Nano / PC, etc.

18.5″ Capacitive Touch Display

Commercial Quality, Suitable For Commercial IoT Displays, and Smart Home, etc.

Specifications:

• Size: 18.5"
• Resolution: 1920x1080
• Display Interface: HDMI/Type-C
• Display Color: 16.7M
• Viewing Angle: 178
• Touch Type: Capacitive
• Touch Port: Type-C
• Touch Points: 10-Point
• Touch Panel: Toughened Glass
• Touch Panel Tech: Optical Bonding
• Brightness: Supports DDC/CI Control
• OSD Menu: Brightness/Contrast
• Display Panel: IPS
• Audio Output 1: 3.5mm Jack
• Audio Output 2: 4PIN Header

Device & System Support

• Raspberry Pi
• Supports Raspberry Pi OS, 10-point touch, driver free
• Supports Ubuntu / Kali / WIN10 IoT, single point touch, driver free
• Supports Retropie, driver free
• Supports all versions of Raspberry Pi

Jetson Nano

• Supports Ubuntu, single point touch, driver free

PC

• Supports Windows 11 / 10 / 8.1 / 8 / 7, 10-point touch, driver free

Game Console

• Xbox360, PS4, Switch...

Smartphone

• Huawei, Samsung...(wired projection)

Connection Examples

Working with Raspberry Pi 5

Working with Raspberry Pi 4B

Working with Raspberry Pi 3B+

Working with Raspberry Zero 2 W

• You need to prepare additional mini HDMI adapter and USB cable

Working with Jetson Series Board

Working with mini PC

Working with laptop

Working with smartphone

• Please make sure that the laptop or smartphone itself features a full-featured Type-C interface
• For reference only, the above controller boards or hosts are NOT included
• Configurable Display Orientation
• The display orientation is landscape by default, 1920x1080 resolution (H×V).
• Change the software config for portrait display

Wide viewing angle IPS display panel

Excellent Display & Color Performance

Wide viewing angle up to 178°, color gamut up to 72% NTSC

10-Point Capacitive Touch

• up to 10-point touch, depending on the operating system
• up to 6H hardness toughened glass panel
• Optical bonding, display well and dustproof

Interface Introduction

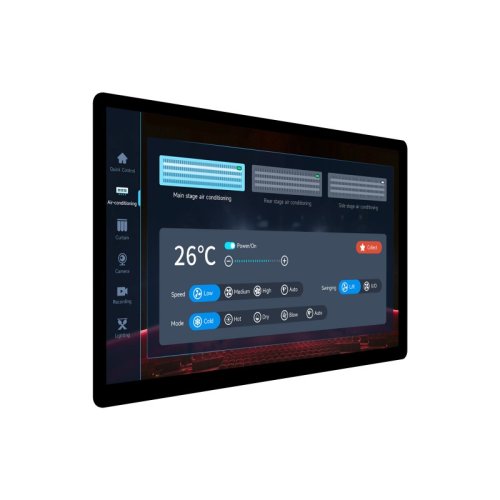

Application Scenarios

Dimensions

• Support touch screen customization
• Support the following ways to customize the touch screen display in bulk order

Over a decade

Waveshare grows with display

Documentations:

• Wiki: www.waveshare.com/wiki/18.5inch_FHD_LCD

Product Certification

HDMI Certified

Package Includes:

• 1 x 18.5inch FHD LCD
• 1 x HDMI cable ~1m
• 1 x HDMI to Micro HDMI adapter
• 1 x USB Type A to Type C cable ~1m
• 1 x Type C cable ~1m
• 1 x OPTIONS 12V 2A power adapter
• 1 x Triangular stand
• 1 x Button board
• 1 x 1.27H 4PIN button board cable
• 1 x Capacitive touch pen
