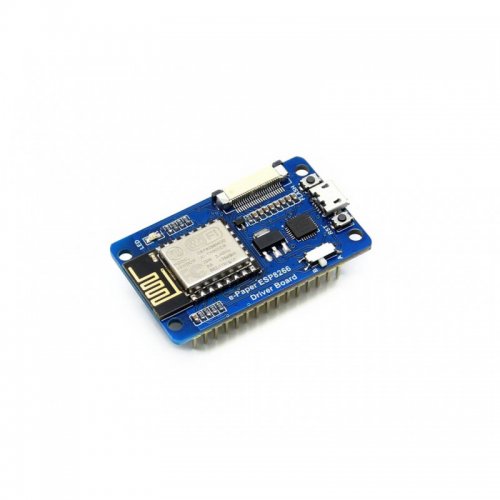

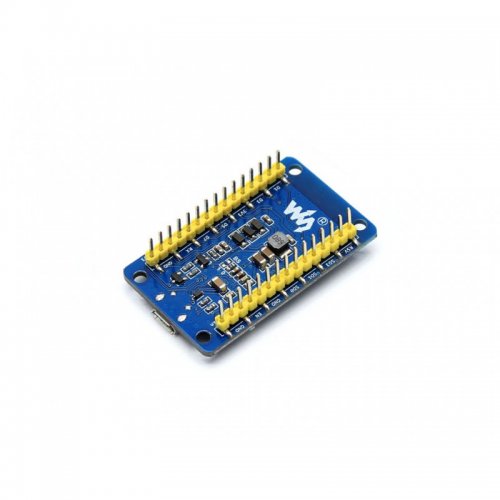

Universal E-Paper Driver Board With WiFi SoC ESP8266 Onboard, Supports Various Waveshare SPI E-Paper Raw Panels

This is a universal driver board for e-Paper raw panels, thanks to the WiFi connectivity, it is allowed to display images from PC / smart phone via WiFi conveniently.

Furthermore, it can also be used for Arduino development, just like any other normal Arduino board.

Features:

• Onboard ESP8266, supports Arduino development
• Provides HTML host code, allows to refresh display content via remote webpage, suit for Internet applications
• Supports Floyd-Steinberg dithering algorithm, more color combinations, better shadow rendering for the original image
• Supports popular image formats: BMP, JPEG, GIF, PNG, etc.
• Easy to be integrated into wireless applications
• Comes with e-Paper driver (open source)
• Comes with development resources and manual

Specifications:

• WiFi protocol: 802.11b/g/n
• Interface: 3-wire SPI, 4-wire SPI (default)
• Operating voltage: 5V
• Operating current: 50mA ~ 100mA
• Outline dimension: 29.57mm x 48.26mm
• Mounting holes size: 2.9mm

Dimensions:

Documentation:

• Wiki

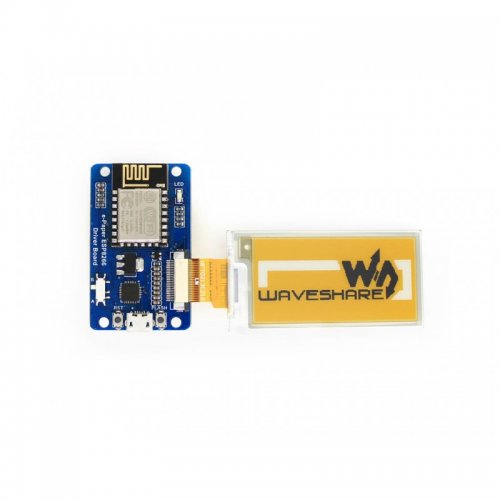

Note: e-Paper panels in the photos are NOT included.

Package Includes:

• 1 x e-Paper ESP8266 Driver Board

• 1 x e-Paper Adapter
• 1 x 24PIN FFC
