264x176, 2.7inch E-Ink Display HAT For Raspberry Pi, SPI Interface

2.7″ E-Paper HAT
Low Power, Wide Viewing Angle, Paper-Like Effect Without Electricity
Ideal for price tags, shelf labels, industrial instruments...

Size: 2.7
Resolution: 264×176
Viewing Angle>170°
Display Color: Black/ White
Grey Scale: 4
Communication: SPI
Display Panel: E-paper
Experience: Paper-like
Environment: Ambient Light Required
Display Type: Passively Reflective

Features At A Glance:

No backlight, keeps displaying last content for a long time even when power down
Ultra low power consumption, basically power is only required for refreshing

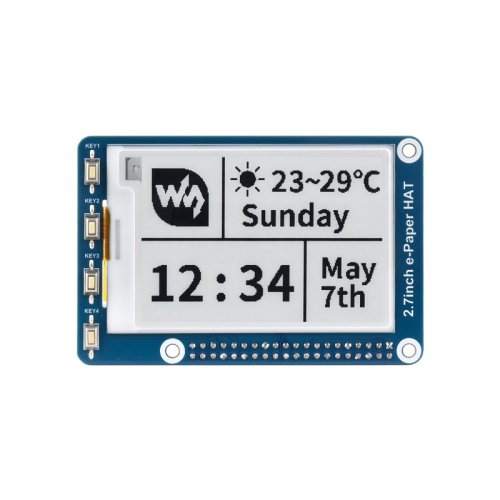

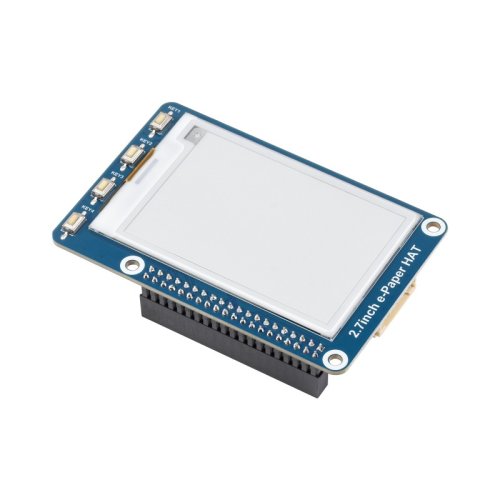

Onboard 4x Keys for extended applications

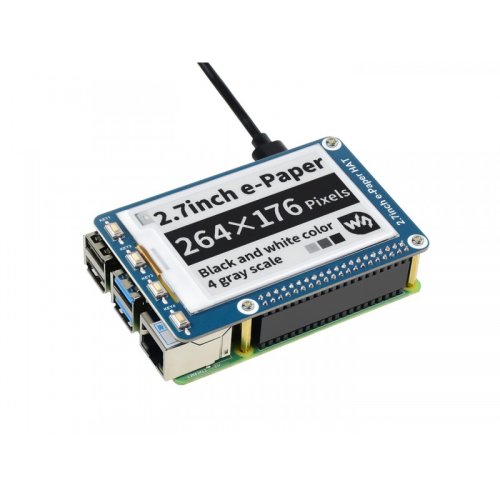

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
SPI interface, for connecting with controller boards like Raspberry Pi/Arduino/STM32, etc.

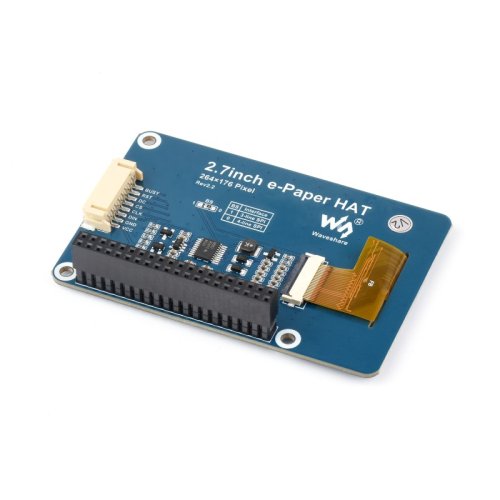

Onboard voltage translator, compatible with 3.3V/5V MCUs
Comes with development resources and manual(examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

OPERATING VOLTAGE	3.3V/5V	DISPLAY COLOR	black, white
INTERFACE	3-wire SPI, 4-wire SPI	GREY SCALE	4
OUTLINE DIMENSIONS	85 × 56mm	FULL REFRESH TIME	6s
DISPLAY SIZE	57.288 × 38.192mm	PARTIAL REFRESH TIME	0.3s
REFRESH POWER	24mW(typ.)	STANDBY CURRENT	<0.01uA (almost none)
DOT PITCH	0.217 × 0.217 mm	VIEWING ANGLE	>170°
RESOLUTION	264 × 176 pixels

Advantages Of EINK

E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.

E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
