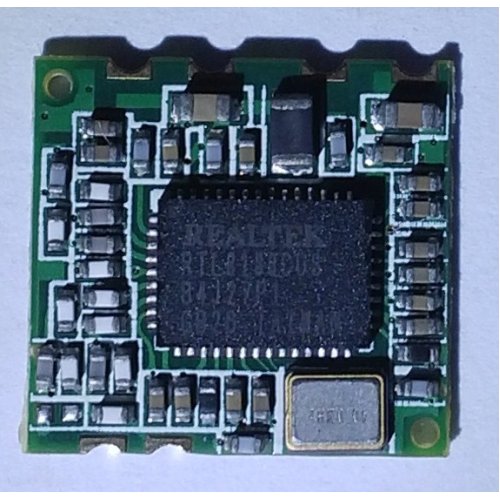

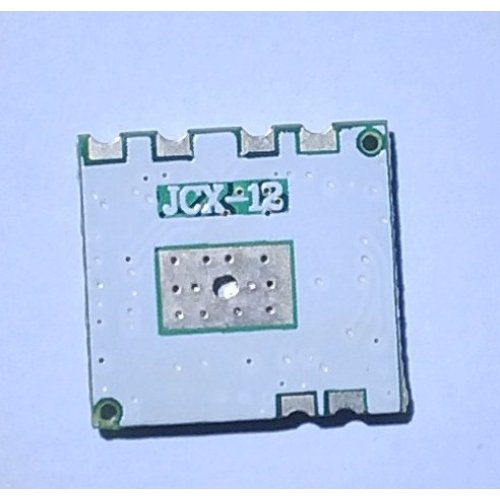

W10 USB WIFI module RTL8188CUS IEEE 802.11n/b/g with speed upto 150 mbps !
- Main Chip : Realtek RTL8188CUS
- Standard : 802.11b/g/n, 802.3, 802.3u
- Frequency range : 2.4~2.4835 GHz ISM Band
-
Spread Spectrum :
- IEEE 802.11b: DSSS (Direct Sequence Spread Spectrum)
- IEEE 802.11g/n:OFDM (Orthogonal Frequency Division Multiplexing)
- Data Transfer Rate : 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60,90,120 and maximum of 150Mbps
- Operation voltage : DC 3.3V
- Operation current : 95~140mA
- Interface : USB2.0
- Modulation Type : OFDM/DBPSK/DQPSK/CCK
- Channel Number : 14
- Wireless Tx Power : < 13dBm@11n,< 18dBm@11b,< 14dBm@11g
-
Wireless Rx Sensitivity :
- 11Mbps: -86dBm@8%
- 54Mbps： -73dBm@10%
- 130Mbps：-66dBm@10%
- Supported OS : Windows 2000,XP32/64,Vista 32/64,Win7 32/64,WIN CE,Linux,Mac,Android…
- Antenna : External
- RF Input Impedance : 50 Ω
- Transmission Range : Indoor 100m(Max.), Outdoor 300m(Max.)

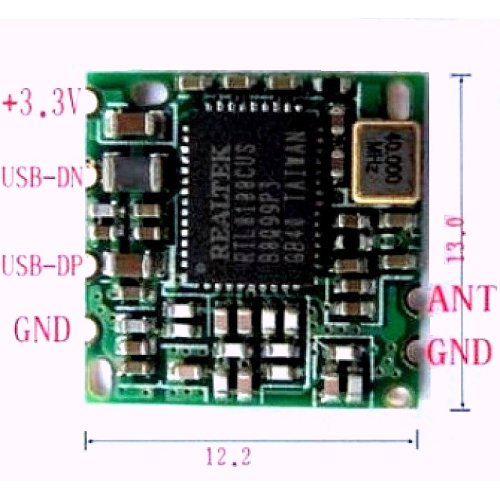

- Dimension : 13.0*12.2*1.8 mm (L x W x H)
- Manufacture workmanship : RoHS Compliant
WIFI USB Module RTL8188CUS, IEEE 802.11n/b/g - W10
- Product Code:PRC-Wifi-Module-RTL8188CUS-W10
- Reward Points:4
- Availability:In Stock
-
रo 357.00
- Price in reward points:357
-
- 40 or more रo 354.00
- 80 or more रo 351.00
- 210 or more रo 348.00
- 415 or more रo 345.00
