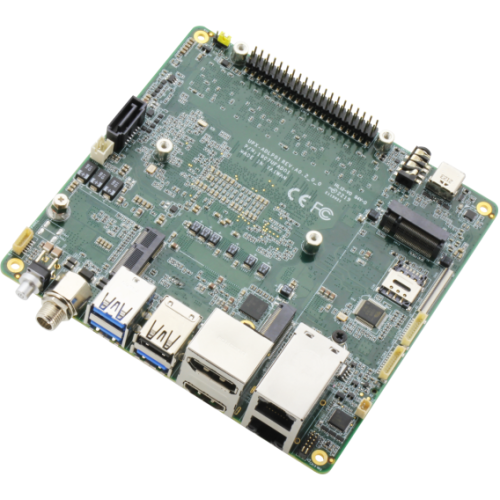

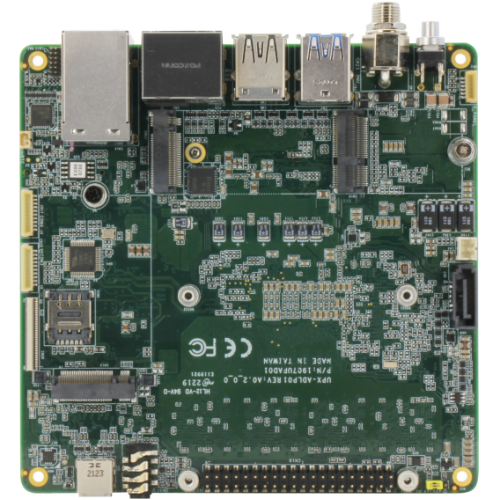

High performance developer board

• 12th Gen Intel® Core™ i7/i5/i3 (formerly Alder Lake-P) and Intel® Celeron® processor SoCs
• Intel® Iris® Xe Graphics
• Up to 16GB dual channel LPDDR5 RAM
• Powered by TPM 2.0
• 12-36V DC input
•  2.5GbE supports Time-Sensitive Networking (TSN)
• Supports Intel vPro® technology at 1GbE with i5 and i7 CPU SKUs

Specifications:

General

• Processor : Intel® Core™ i7-1260P
• Graphics : Intel® Iris® Xe Graphics
• VPU : Optional (via M.2 2280)
• Memory : 16GB
• eMMC / Storage : via SATA or M.2 2280 NVMe*
• FPGA : Lattice
• BIOS : UEFI
• RTC : Yes
• Wake-on-LAN (WoL): Yes
• Watchdog Timer: Yes
• PXE : Yes
• TPM: Equipped with TPM2.0
• Compatible OS Windows* 10 Enterprise 2021 LTSC

                                            Ubuntu 22.04

                                           Yokuto (undecided)

• Dimension 120.35×122.5mm

Display

• HDMI : 1 (HDMI 2.0)
• Display  Port : 1 x DP 1.4a

                                    1 x DP 1.4b via USB Type-C

• MIPI DSI/ eDP: 1x eDP1.4b

I/O

• USB          2x USB 2.0 (via 10 pin wafer)

                             1x USB 2.0 Type A

                              3x USB 3.2 Gen 2 Type A

                              1x USB4.0 Type C

• Audio : 1x audio jack (mic in, line out)
• UART : 1x HSUART (via 10-pin wafer)
• Serial Port : 2x RS-232/422/485 10 pin headers
• Expansion Slot    : 2x M.2 2280 M Key (PCIe Gen4x4),

                                             1x M.2 2230 E Key (PCIe/USB)

                                              1x M.2 3052 B Key (PCIe/USB3.0) with Nano SIM slot

• 40-pin GPIO header:  yes

Connectivity

• Ethernet 1x GbE (Intel® i219)

                                    1x 2.5GbE (Intel® i226IT)

• Wi-Fi : Optional (via M.2 2230)
• Bluetooth : Optional (via M.2 2230)
• LTE / 4G / 5G : Optional (via M.2 3052)

Power

• Power Requirement : 12-36V DC input
• Power Supply Type : AT/ATX mode
• Power Consumption (Typical) : Intel® Core™ i7-1270PE, LPDDR5 4800MHz 16GB, 5.86A@+ 12V (typical)

Environmental & Certification

• Cooling : Active heatsink
• Operating Temperature : 0℃～60℃
• Storage temperature : -40°F ～ 176°F (-40°C ～ 80°C)
• MTBF (Hours) : 362,068
• Certification : CE/FCC Class A,RoHS

Package

• Net Weight : 389g
• Gross Weight: 604g
• Package dimension (L x W x H) : 229×181×97mm
• HS Code : 8473302000
• Country of Origin : Taiwan

Accessories

• Accessories 1x RTC Battery

                                   1x Active heatsink

Package Includes:

• 1 x UP Xtreme i12. Core i7-1260P. 16GB RAM
