Enabling multi-LAN ports, TSN, and Vision Acceleration with UP Core Plus or UP Xtreme.
Specifications:
| EEPROM | 1x EEPROM on l2C0 4Kb with Jumper for A0~A2 address |
| USB 3.0 Type A | 1 |
| Ethernet | 4x Intel l211-AT / 4x Intel l210-IT |
| Cooling | passive cooling (fanless) |
|
Power requirement
|
DC 12V from UP Core Plus |
| Operation temperature | 32°F ~ 140°F (0°C ~ 60°C) |
| Operation Humidity | 0% ~ 90% relative humidity, non-condensing |
| Storage temperature | -40°F ~ 176°F (-40°C ~ 80°C) |
| Certification | CE/FCC Class A |
| Compatibility | UP Core Plus, UP Xtreme |
| Dimension | 56 mm × 90 mm |
Note: The cable is only needed when you connect with UP Xtreme. To work with UP Core Plus, there is no cable needed.
Package Includes:
- 1 x UP Net Plus x1/UP Vision Plus
- 1 x board to board connector (long-side)
- 1 x board to board connector ( short-side)
- 4 x standoff to stake with UP Core Plus
- 1 x Cable* to use with UP Xtreme
- 1 x Passive Heatsink for Vision Plus X

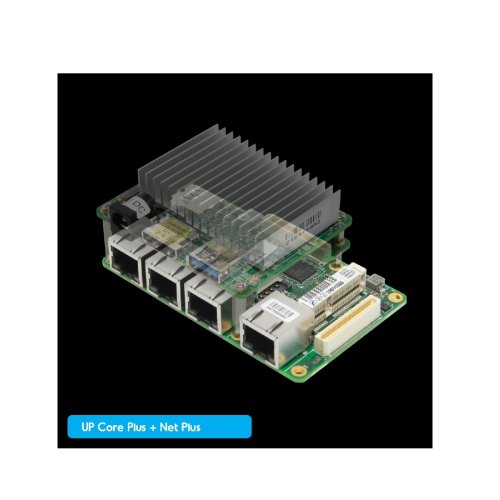

UP Core Plus and UP Xtreme UP Net Plus carrier board - i211-AT / i210-IT
- Brand: UP Shop
- Product Code:UP-Core-Xtreme-Board
- Reward Points:154
- Availability:In Stock
-
रo 15,247.00
- Price in reward points:15370
-
- 2 or more रo 15,124.00
- 5 or more रo 15,001.00
- 10 or more रo 14,878.00
