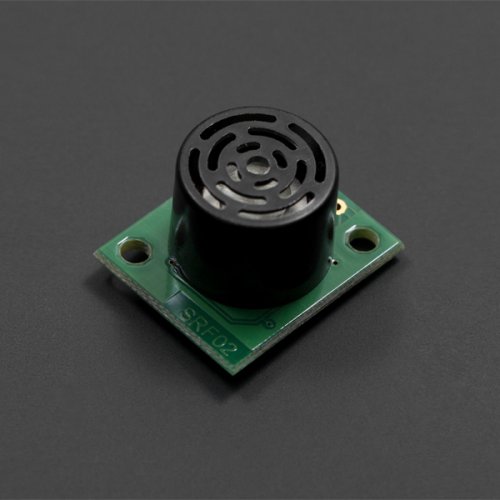

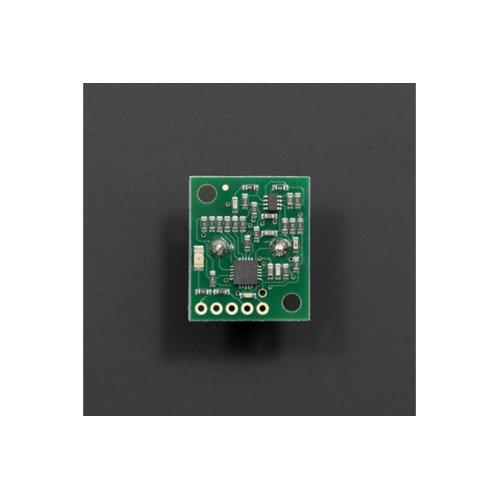

This low cost SFR02 ultrasonic ranger has both I2C and Serial interfaces. New AutoTune algorithms intelligently back the minimum range right up to the transducer ringdown for the very best performance possible, automatically, in the background, and with no calibration cycles necessary. Additional new commands allow for separate burst and ranging control.

The SRF02 arduino ultrasonic sensor features both I2C and a Serial interfaces. The serial interface is a standard TTL level UART format at 9600 baud,1 start, 2 stop and no parity bits, and may be connected directly to the serial ports on any microcontroller. Up to 16 SRF02's may be connected together on a single bus, either I2C or Serial.

New commands in the SRF02 include the ability to send an ultrasonic burst on its own without a reception cycle, and the ability to perform a reception cycle without the preceding burst. Because the SRF02 uses a single transducer for both transmission and reception, the minimum range is higher than our other dual transducer rangers. The minimum measurement range is around 15cm (6 inches). Like all Devantech rangefinders, the SRF02 can measure in microseconds, cm or inches.

Documents:

wiki (SRF02 ultrasonic sensor )

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

1 x Ultrasonic sensor - SRF02

Ultrasonic sensor - SRF02

Brand: DFRobot
Product Code:DFR-SRF02-Sensor
Reward Points:19
Availability:In Stock

रo 1,860.00
रo 1,614.00
Price in reward points:1921
7 or more रo 1,852.00
15 or more रo 1,844.00
40 or more रo 1,796.00

Qty

0 reviews / Write a review
