M.2 Wi-Fi Intel dual band ac Wi-Fi + BT 4.2 5ghz + antenna adhesive.

• Intel Dual Band Wireless Wi-Fi kit w/ 3168.NGWG AC and Bluetooth 4.2 module
• Dimensions: 4.9 x 3.5 x 0.4 inches
• Weight: 8.5g (0.3 oz)

Intel Dual Band Wireless Wi-Fi AC and Bluetooth 4.2 module (Intel AC3168) was released in 2016 so we suggest to use a recent distribution to find the latest drivers already installed. If you are using a Linux distribution you need at least the v4.6 of the Linux Kernel to make this module work properly.

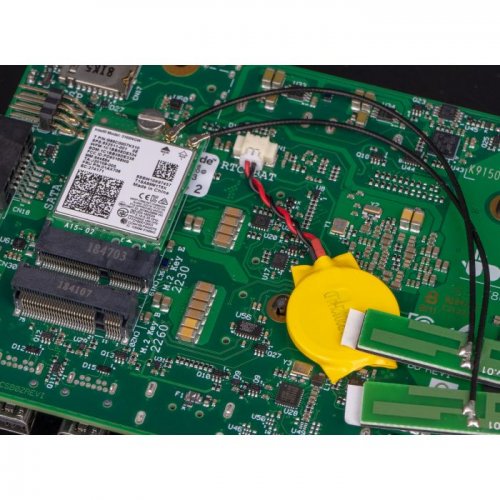

You need both the antennas to make the module work properly. Connect an antenna to the Main A connector to enhance Wi-Fi signal. Connect an antenna to the Aux B connector to enhance Bluetooth and Bluetooth LE signal.

Note: Screws/Spacers NOT included. The screws/Spacers are included only buying a UDOO X86 Board. The required Screws/Spacers are the following:

• M3x8mm Flat head Screw;
• 2mm Round Spacer;
• 0.5mm Flat washers;
• M3 Hex Nut.

Documents:

• X86

Package Includes:

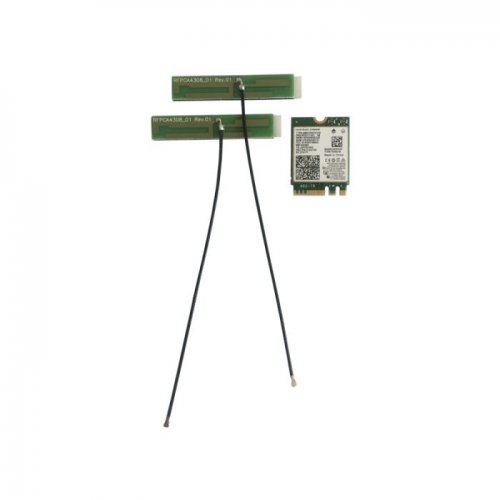

• 1 x M.2 Wi-Fi Intel dual band ac Wi-Fi + BT 4.2 5ghz module
• 2 x Antennas: MHF4 connector, 10cm IPEX cable, Adhesive backing on aerial plates
