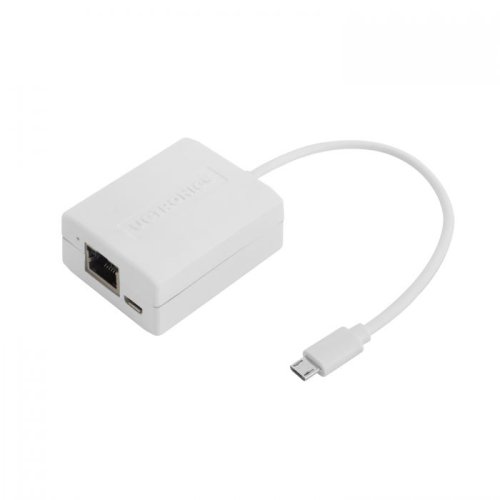

UCTRONICS U6113 is an ultimate Micro-USB Ethernet adapter with multiple working modes, which helps you supply Ethernet and power over a single Mi-cro-USB connector. With its PoE (Power over Ethernet) support, you can even use a single Ethernet cable to deliver both network con-nection and power supply to your Micro-USB devices (that support ethernet over Micro-USB port) in a stable hardwire connection.

Features:

• Standards: IEEE 802.3af

• Power Input: IEEE 802.3af PoE / 5V Micro-USB power
• PoE Port: 0/100Mbps
• LAN Port: RJ45
• Power Output: 12.5W Max (5V/2.5A)
• Safety & Emissions: FC, CE
• Operating Temp.: 0℃～40℃(32℉～104℉)
• Storage Temp.: -40℃～70℃(-40℉～158℉)
• Operating Humidity: 10%～90% RH, Noncondensing
• Storage Humidity: 5%～90% RH, Noncondensing

Working Modes:

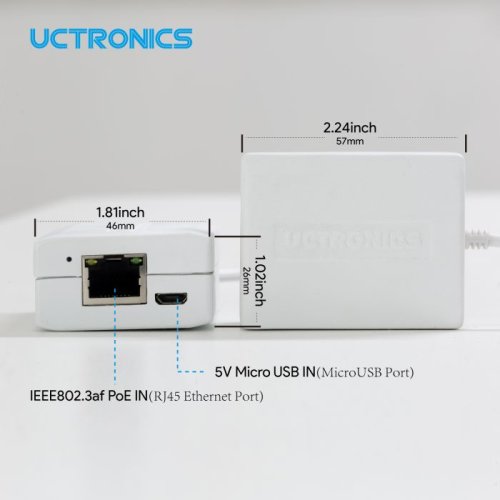

• PoE to Micro-USB Adapter Mode: Use an Ethernet cable running from the Power source (IEEE 802.3af compliant PoE switch or injector) to connect to the PoE/Ethernet IN port of this adapter, and then connect Micro-USB Out to your device.

• Fire TV Ethernet Adapter Mode: Connect an Ethernet cable with network connection to the PoE/Ethernet IN port of this adapter, insert an extra Micro-USB power supply to Micro-USB Power In and then connect Micro-USB Out to your device.
• Micro-USB Ethernet Adapter Mode: Connect an Ethernet cable with network connection to the PoE/Ethernet IN port of this adapter, and then connect Micro-USB Out to your device. The adapter will not feed power but will deliver Ethernet to your device, which should have been powered with another power supply.

Note:

• You need an PoE switch or injector (IEEE 802.3af recommended) to serve as the PSE (Power Source Equipment) when you are using this adapter in the PoE mode.

Documentation:

• User guide

Package Includes:

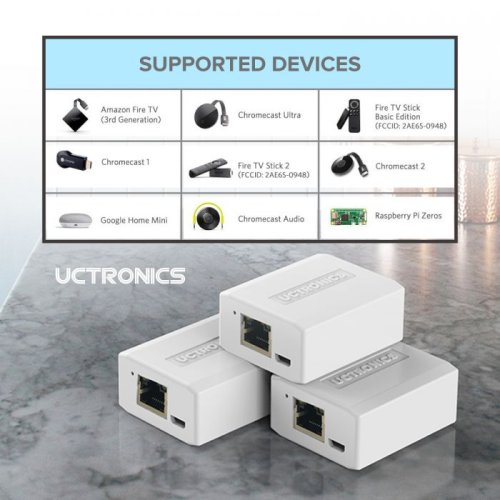

• 1 x UCTRONICS U6113 PoE Adapter to Micro USB (Ethernet+Power) for Raspberry Pi Zero, Fire TV Stick, Chromecast, Google Mini, and More, IEEE 802.3af Compliant
