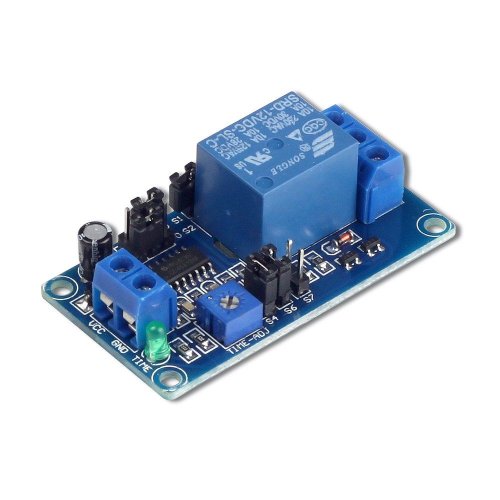

The DC 12V time delay relay module is versatile and adjustable. The delay time can be adjusted with potentiometer at shortest 0.1s up to 1h. User can delay time as needed, wildly used in Smart home, Tachograph, GPS, PLC control, industrial control, electronic experiment, Arduino robot etc.

Features:

  • Input voltage: 12V
  • Quiescent dissipation: 5.5mA
  • Maximum power consumption:42mA
  • Relay load capacity:
  • 250V 10A AC (2500W ideal power AC)
  • 30V 10A DC (300W ideal power DC)
  • Functions:

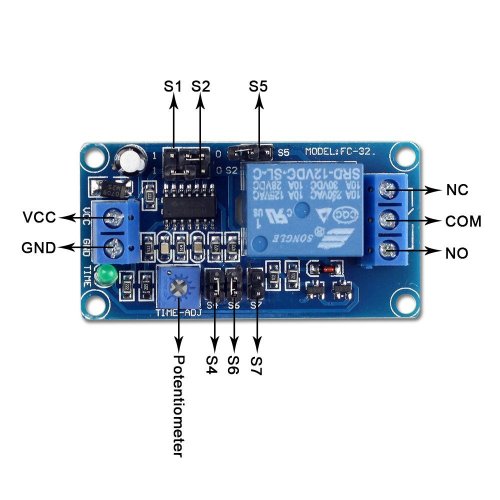

  • Plug on S6 ,delay turn off
  • Plug on S7, delay turn on
  • When you remove the jumper cap of S5, the relay and the load will be power supplied separately; otherwise, the relay and the the load will be power supplied at the same time.

Tips:Please remove the jumper cap of S5 when control the AC current or other DC current voltage rather than 12V, otherwise the module will be burnt or will not work properly.

UCTRONICS DC 12V Time Delay Relay Module for Smart Home, Tachograph, GPS, PLC Control, Industrial Control, Electronic Experiment, Arduino Robot

UCTRONICS DC 12V Time Delay Relay Module for Smart Home, Tachograph, GPS, PLC Control, Industrial Control, Electronic Experiment, Arduino Robot

UCTRONICS DC 12V Time Delay Relay Module for Smart Home, Tachograph, GPS, PLC Control, Industrial Control, Electronic Experiment, Arduino Robot

Documentation:

Package Includes:

  • 1 x  DC 12V Time Relay Module


Write a review

Please login or register to review

UCTRONICS U6031 DC 12V Time Delay Relay Module for Smart Home, Tachograph, GPS, PLC Control, Industrial Control, Electronic Experiment, Arduino Robot

  • Product Code:NR-ArdC-UCTRONICS-U6031-Time-Delay-Relay-Module
  • Reward Points:9
  • Availability:In Stock
  • रo 848.00
  • रo 742.00

  • Price in reward points:883

  • 15 or more रo 844.00
  • 30 or more रo 841.00
  • 75 or more रo 837.00
  • 155 or more रo 834.00
