The miniature GPS antenna are water-resistant, low-profile antenna suitable for use with Trimble's embedded and timing products as well as 3rd party receivers. They have magnetic mounting for quick, convenient placement on or inside vehicles, making it ideal for mobile asset management and the numerous other uses found for the Trimble OEM embedded board products.

Features:

• Trimble Miniature GPS Antenna
• Compact, active, magnetic mount antennas
• GPS (L1) only
• 3.0V or 5.0V versions
• SMA, SMB or MCX connectors
• 5m cable length, 27 dB gain
• -40°C to +85°C temperature operation

Specifications:

• Antenna Specifications:
• Connector:
• 66800-00: Straight SMB plug
• 66800-40: Straight SMA plug
• 66800-50: Straight MCX plug
• 66800-52: Straight SMA plug
• Cable:
• 5 meters, black, RG-174
• Cable pulling force: 49N (room temp)
• Mounting:
• Magnetic mount, minimum 29.4N pulling force
• Withstands up to a speed of 180Km/h
• Frequency: GPS L1, 1575.42 +/- 1.023 MHz
• Gain: 27dB +/-3 dB (all versions)
• Impedance: 50 Ohms
• Polarization: RHCP
• VSWR: 2.0 Max
• Other:
• 66800-00: Replaces 56237-40, 40767-40 and 34048-40 antenna
• 66800-40: Replaces 56237-40, 40767-40 and 34048-40 antenna
• 66800-50: Replaces 56237-50, 39265-50 and 34048-50 antenna
• 66800-52: Replaces 56237-52, 39265-52 and 34048-52 antenna
• Waterproof (JISD0203 S2)
• Polarization: RHCP
• General Specifications:
• Electrical:
• 66800-00: 5.0V +0.5V/-0.75V (i.e. 4.25V to 5.5V), 30mA maximum
• 66800-40: 5.0V +0.5V/-0.75V (i.e. 4.25V to 5.5V), 30mA maximum
• 66800-50: 3.0V ±0.3V, 15mA typical, 20mA maximum, 15 mA typical
• 66800-52: 3.0V ±0.3V, 15mA typical, 20mA maximum, 15 mA typical
• Mechanical: 37.4 mm x 34 mm x 12.9 mm
• Temperature:
• Temperature range (operation): -40 to +85° C
• Temperature range (storage): -40 to +100° C
• Humidity: 20% to 95%
• Weight: 25g without cable, 100g with cable
• Vibration: 10 to 200Hz. Log sweep 3.0G (sweep time: 15 min) 3 axis
• Shock: 50G vertical axis, 30G all axis
• MTBF: 5.0E+6Hr (570 years)
• Warranty: 1 Year
• RoHS: Compliant

Documents:

• Trimble Miniature GPS Antenna Datasheet
• Trimble 66800-40 Manual
• Trimble 66800-50 Manual
• Trimble 66800-50 Manual
• Trimble 66800-52 Manual

Warranty:

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

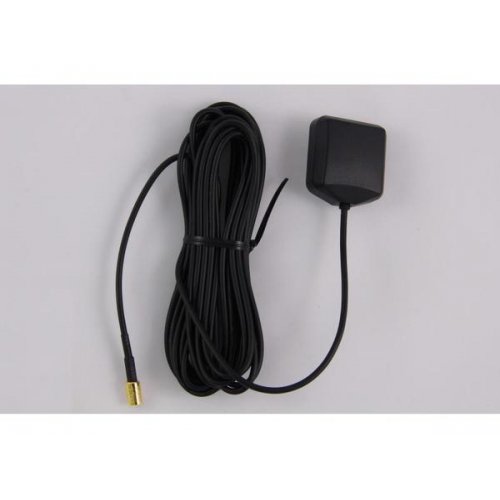

• 1 x Trimble Miniature 5.0V GPS Antenna - SMA Connector
