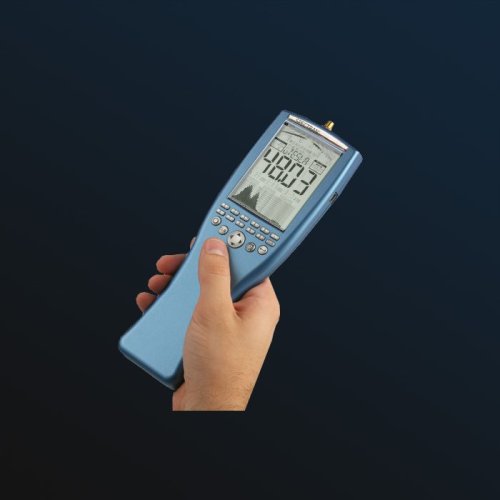

Spectran NF-5030 EMF spectrum analyzer for the professional at an unbeatable price!
AC analog input with high sensitivity (down to 200nV).
The optional Active Differential Probe for the NF-5030 is a "must have" for direct cable-measurements of DSL, ADSL, free running oscillators, mains etc..
Absolutely essential: The optional high performance multi-channel 65MSPS 12Bit DDC frequency filter (option 005) allows fast, extremely sensitive and super crisp frequency measurement of very weak signals down to 1pT (0.001nT). Measurement of the 125-135kHz RFID band (decoder software already in development) and more.
By adding the 20MHz or 30MHz frequency extensions, complete new applications become possible, e.g. assessment of the 13.56MHz RFID and VDSL2 frequency bands. A MUST-HAVE for EMC measurements. An ideal solution for technicians and authorities for accurate examination of signal sources up to 30MHz.
Technical Details:
- Inclusive PC Analyzer Software
- Vastly expanded range
- Measurement range up to DIN/VDE 0848
- 65 MSPS
- Lots of options
- Frequency range: 1Hz to 1MHz (optional 20/30MHz)
- Typ. level range E-Field: 0,1V/m to 5000V/m (typ. at 50Hz)
- Typ. level range H-Field: 1pT to 500µT (typ. at 50Hz)
- Typ. level range Analog in: 200nV to 200mV / -150dBm (Hz)
- Typ. accuracy: 3%

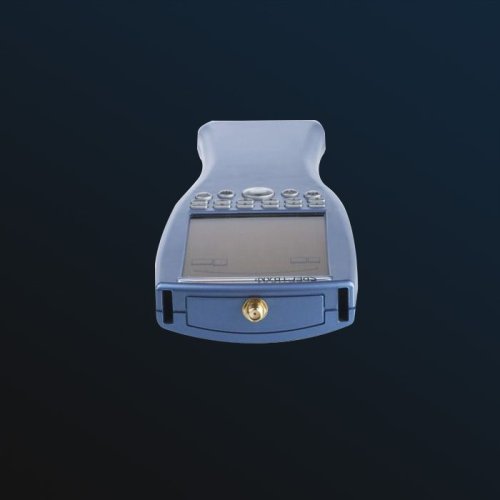

- External SMA signal input

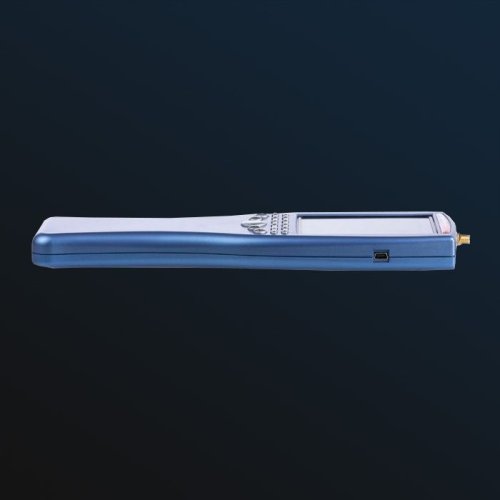

- USB 2.0 Interface
- Real-time FFT/DFT spectrum display
- Resolution (RBW):
- 0,3Hz to 10MHz (1-3-10 step)
- Detectors: RMS, Min/Max
- Units: V, V/m, T, G, A/m
- Demodulator: AM, FM
- Simultaneous M-Display X, Y, Z axes
- 3D magnetic field measurement
- True RMS signal strength measurement
- Average (AVG) measurement
- PEAK Hold
- Frequency and signal strength display
- High resolution multifunction display
- DIN/VDE 0848 exposure limit calculation
- Internal data logger
- Internet flash software updates
Specifications:
| Country of Manufacture | Germany |
| Frequency range | 1Hz to 1MHz (optional 20MHz / 30MHz) |
| Weight | 420g |
| Vector power measurement (I/Q) and True RMS | Yes |
| FFT (Resolution in points) | 1024 |
| Filter bandwidth (min/max) | 0,3Hz (min) / 10MHz (max) |
| Typ. precision base unit | 3% |
| Typ. level range | 1pT to 500µT |
| Range Analog input (typical) | 200nV (min) - 200mV (max) |

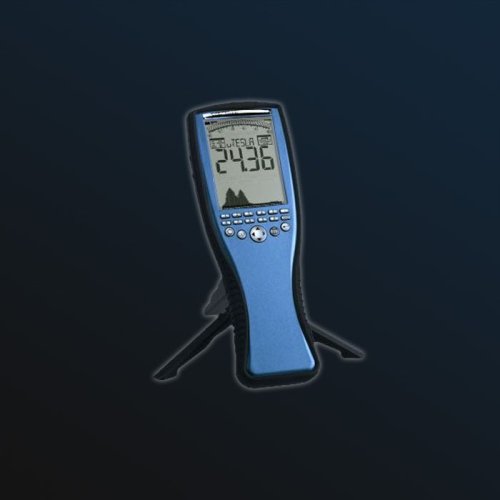

| Tripod connection | 1/4" |
Documents:
Package Includes:
- 1 x Spectrum Analyzer SPECTRAN NF-5030
- 1 x 1300mAh battery, battery charger

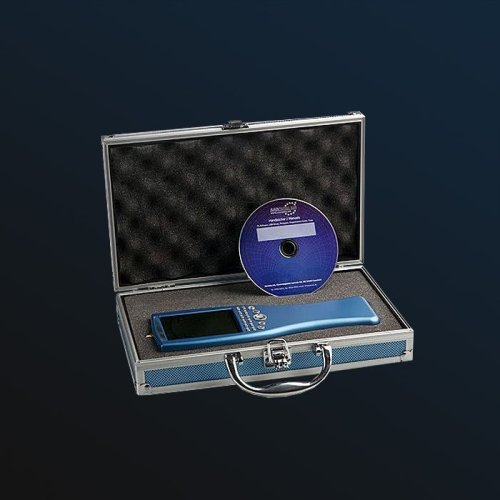

- 1 x Aluminum carrying case
- 1 x Protection Rubber
- 1 x USB-cable
- 1 x PC Analyzer Software and
- 1 x Detailed English manual (on CD)
Spectran NF-5030 EMF Spectrum Analyzer
- Product Code:Spectran-NF-5030
- Reward Points:1570
- Availability:Order now and get it in 25 days
-
