DSO Touch, is a 2 channels digital pocket size oscilloscope. It is only 10mm thick with an aluminum alloy appearance. The touch screen is 320x240 color display. It support SD card USB flash disk storage and USB charging. DSO Touch can be used in academic, experiment, electronics maintenance, engineering task etc.

FEATURES

• • ŸPocket size and light

• • ŸTouch screen

• • ŸTwo channels

• • ŸSignal Generator

• • ŸVarious Triggering Option

• • ŸEasy waveform storage

SPECIFICATION

• • ŸAnalog bandwidth: 1MHz

• • ŸMax sample rate: 10MSa/s

• • ŸMax sample memory depth: 8K

• • ŸAnalog input impedance: 1MΩ

• • ŸMax input voltage: ±40V (X1 probe)

• • ŸCouling: AC/DC

• • ŸVertical Sensitivity: 20mv/Div ~ 10V/Div (stepping in by 1-2-5 mode)

• • ŸŸHorizontal sensitivity: 1uS/Div ~ 2S/Div (1-2-5 stepping)

• • ŸMath waveforms: -A,-B; A+B; A-B; RecA, RecB, RecC

• • ŸTriggering Mode: Auto, Normal, Single, Noce, Scan

• • ŸRising/Falling Edge Trigger

• • ŸŸVertical precise, horizontal precise measurement

• • ŸWaveform functions auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage

• • ŸSignal Generator/10Hz ~ 1MHz square wave (duty adjustable) or 10Hz ~ 20KHz Sine/Square/Triangle/Sawtooth wave

• • ŸU disk waveform storage of 8MB, can store waveform data and waveform image

• • ŸŸPower supply internal 550mAh lithium battery, external USB port

• • ŸDisplay full color TFT LCD (320x240 pixels)

• • ŸCapacitive touchscreen: support input by finger sliding

• • ŸDimension: 100 x 56.5 x 10.7 mm

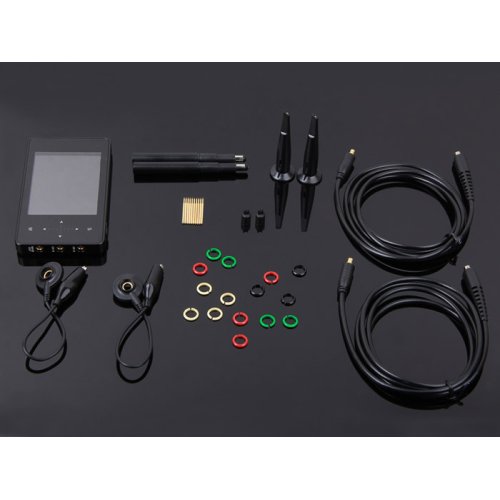

PART LIST

• • ŸDSO Touch x 1

• • ŸSpare probe x 2

• • ŸMetal Stand x 1

• • ŸSack x 1

• • ŸMicro USB Cable x 1

• • ŸScrew x 1

• • ŸDSO Touch User Manual x 1

DOCUMENTS

• For technical support and suggestions, please visit forum.

• Please click here to download the User Manual of DSO Touch, and please note that "DSO 202" in the User Maual is the same thing as DSO touch, only different in naming.
