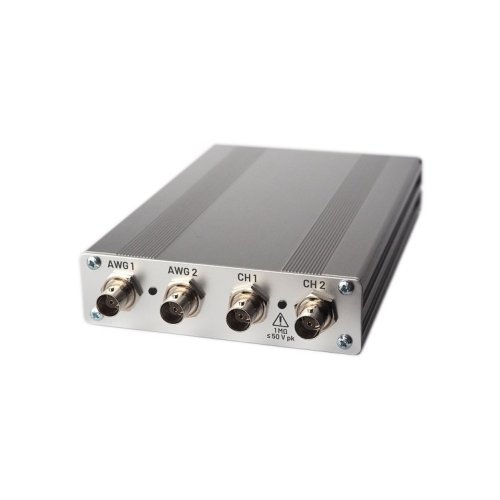

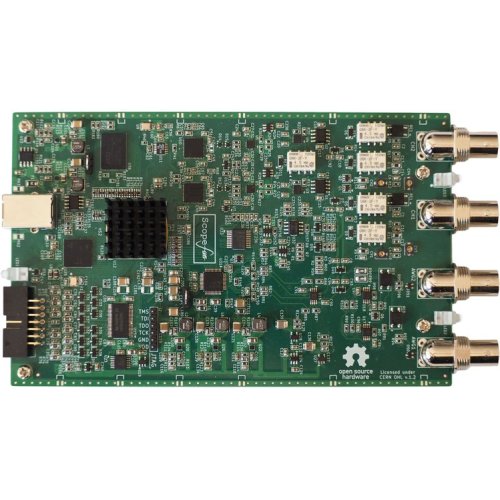

ScopeFun is Open Source All-in-One Instrumentation and it is affordable. A ScopeFun board in a custom made aluminum enclosure.

It provides the following tools:

Features & Specifications:

Oscilloscope
- Channels: Two
- Analog bandwidth (-3 dB): 100 MHz
- Real-time sampling rate: 250 MSPS dual channel / 500 MSPS single channel
- Equivalent time sampling (ETS): 2.0 GSPS
- Resolution: 10 bits
- Min. sensitivity: 0.098 mV
- Voltage ranges (with 1× probe): 10 mV to 2 V per division
- Memory depth: 128 million samples per channel
Arbitrary Waveform Generator
- Channels: Two
- Update rate: 200 MSPS
- Output amplifier bandwidth: 30 MHz
- Output impedance 50 Ohm
- Resolution: 12 bits
- Max. output voltage: +/- 2 V
- Custom waveform length: 32,768 samples per channel
Spectrum Analyzer
- Channels: Two
- Frequency range: DC to 125 MHz
Logic Analyzer
- Channels: 12*
- Maximum toggle rate: 125 MHz
- Maximum sampling rate: 250 MSPS
- Memory depth: 128 million samples per channel
Digital Pattern Generator
- Channels: 12*
- Maximum toggle rate: 125 MHz
- Maximum update rate: 250 MSPS
- Custom waveform length: 32,768 samples per channel
Primary Components
- FPGA: Xilinx Artix-7 XC7A35T
- Memory: 512 MB DDR3 SDRAM
- Connectivity: Cypress FX3 USB 3.0
Software
- Multi-platform: Windows, Linux, and Mac
- Server mode: remotely connect to the ScopeFun over an IP network
- Python API: read samples and control the ScopeFun directly from Python
- Advanced signal rendering: 3D frame history and virtual persistence

Package Includes:

ScopeFun
