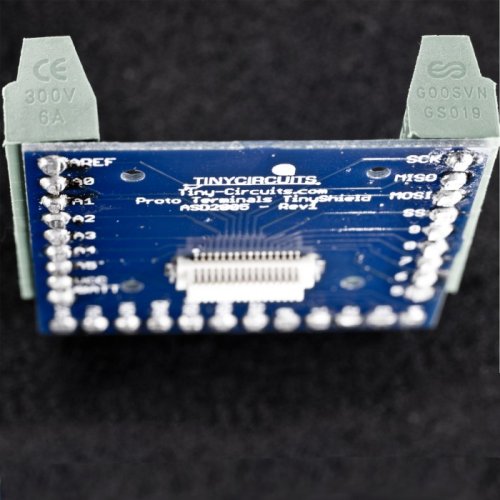

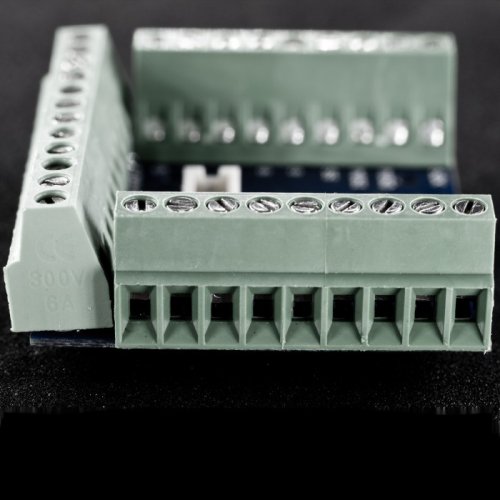

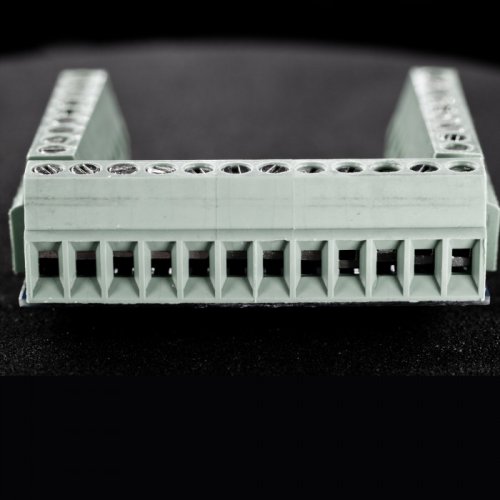

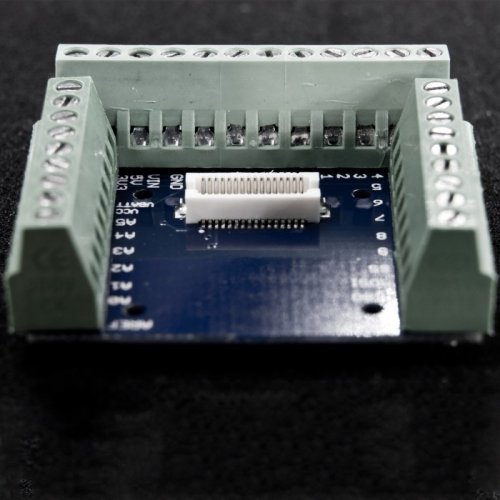

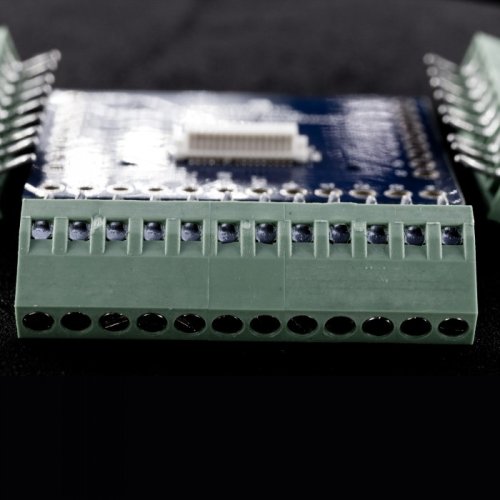

This board makes prototyping with the TinyDuino simple by adding screw terminals to every one of the signals available so you can create projects without having to solder. Just place a wire into the signal that you need and screw it down with a small screwdriver.

All of the shield signals are supported and are spaced with 0.1″ spacing, and placed along the edge of the board which extends past the normal edge of the TinyDuino stack. This makes connecting to any of the shield signals very easy, and additional TinyShields can be stacked on top of this proto board, so it can be placed anywhere in the TinyDuino stack for your project.

Specifications:

Ultra compact size and weight (smaller than a US Quarter!)
- Square Version: 20mm x 20mm (.787 inches x .787 inches)
- Max Height without Terminal Blocks (from lower bottom TinyShield Connector to upper PCB level): 2.81mm (0.111 inches)
- Max Height withTerminal Blocks (from lower bottom TinyShield Connector to upper PCB level): 11.81mm (0.111 inches)

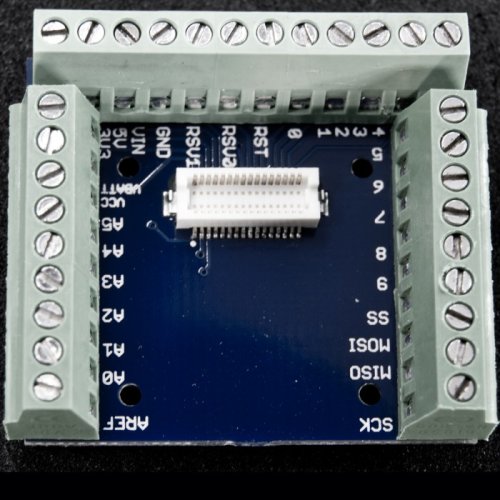

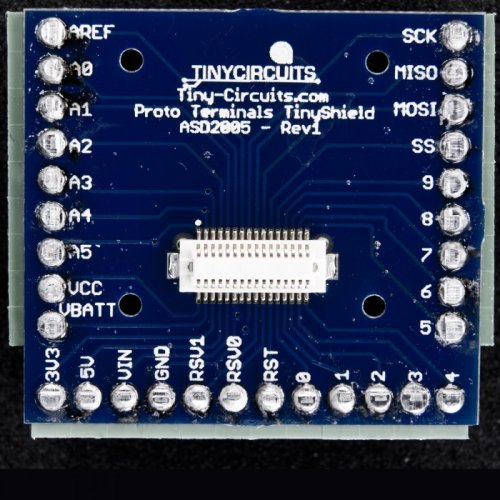

Includes the following signals:

VCC, VBATT,+3V3, +5V, VIN, GND, RSV2, RSV1, RSV0, RESET

IO0, IO1, IO2, IO3, IO4, IO5, IO6, IO7, IO8, IO9

SS, MOSI, MISO, SCK, AREF, AD0, AD1, AD2, AD3, AD4/SDA, AD5/SDL

There are three options when ordering this board:

1. No Terminal Blocks – Just the board itself without the terminal blocks, you can solder or clip onto any of the signals

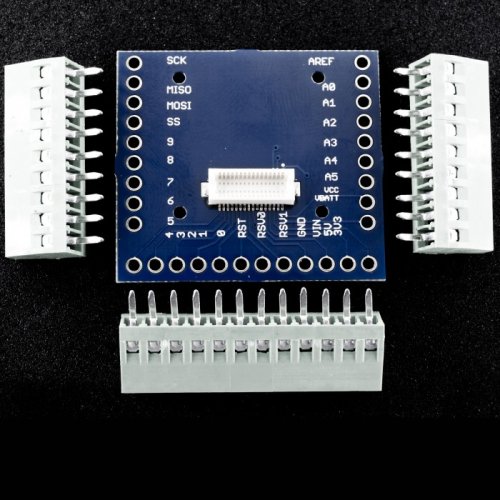

2. You Install the Terminal Blocks – the terminal blocks are shipped along with the board that you can solder on yourself

3. Terminal Blocks Installed – We solder the terminal blocks here and you receive the completed unit.
