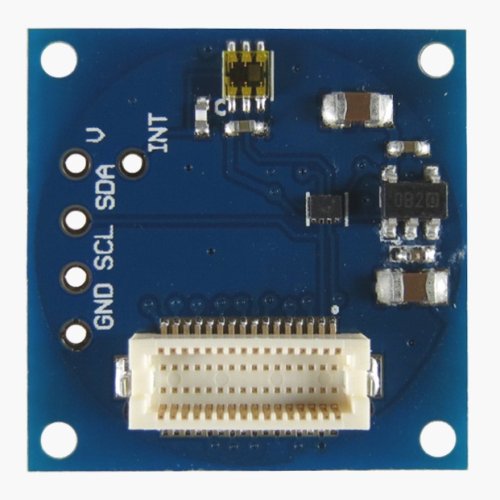

This TinyShield features the high performance and low power Honeywell HMC5883L 3-axis compass. The HMC5883L includes state-of-the-art, high-resolution HMC118X series magneto-resistive sensors plus an ASIC containing amplification, automatic degaussing strap drivers, offset cancellation, and a 12-bit ADC that enables 1° to 2° compass heading accuracy.



The Compass TinyShield incorporates level shifters and a local power supply to ensure proper and safe operation over the entire TinyDuino operating voltage range between 3 – 5V.



You can also use this shield without the TinyDuino – there are 0.1″ spaced holes for power, ground, and the two I2C signals along the side of the TinyShield to allow you to connect a different system.



Specifications:

• Ultra compact size and weight (smaller than a US Quarter!)
• Square Version: 20mm x 20mm (.787 inches x .787 inches)
• Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
• Weight: TBD grams (TBD ounces)
• TAOS TSL2572 Ambient Light Sensor
• Approximates Human Eye Response
• 45,000,000:1 Dynamic Range
• Operation to 60,000 lux in Sunlight
• Package UV Rejection Filter
• Wide Magnetic Field Range (+/-8 Oe)
• Low Power – Active: 200uA, Wait: 90uA, Sleep: 2.2uA
• I2C Mode used
• Arduino pins A4 and A5 are used by this shield
• Built in level shifters and linear power supply to allow your TinyDuino to run up to 5.0V operation.

Support

• Tutorials
• Schematic (pdf)
• Eagle Design Files (on GitHub)
