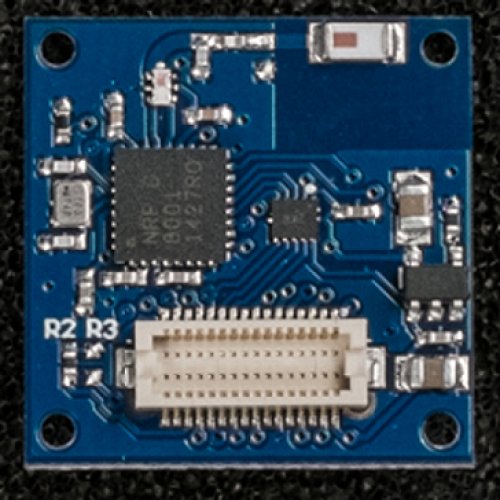

Bluetooth Low Energy (BLE) TinyShield allows you to connect your TinyDuino system to any compatible iOS or Android (4.3+) device using Bluetooth Low Energy (also known as Bluetooth Smart and Bluetooth 4.0). This technology is great for low power sensors and accessories and works with most modern phones without the need for jailbreaking on iOS devices. This TinyShield is based around the popular Nordic nRF8001chipset and allows wireless communication up to 10 meters away. The TinyShield also Includes power supply and level shifters on the board, so you can run your TinyDuino from 3.0V – 5V.

Note: This product is for ADVANCED USERS, and requires that the user develops their own iOS or Android BLE app in order to use this.

Specifications:

Fully Bluetooth Smart v4.0 compliant
- Supports slave mode
Integrated Bluetooth Smart stack
- LL, L2CAP, GAP, SM, ATT and GATT mandatory features for peripheral role operation
- Bluetooth Smart profiles
Radio performance
- Integrated chip antenna
- TX power: +0 dBm to -18 dBm
- Receiver sensitivity: -87 dBm
Ultra low current consumption
- Transmit: 11mA (0 dBm)
- Down to 4µA for 4s connection interval
- Down to 9µA for 1s connection interval
- Down to 16µA for 500ms connection interval
- Down to 30µA for 250ms connection interval
- Deep Sleep Mode: 0.5 uA
Ultra compact size and weight
- Rectangular Version: 20mm x 20mm (.787 inches x .787inches)
- Max Height (from lower bottom TinyShield Connector to upper top TinyShield Connector): 5.11mm (0.201 inches)
- Weight: 1.10 grams (.04 ounces)
SPI Mode used
- Arduino pins 2, 10, 11, 12 & 13 are used by this TinyShield
Built in level shifters and linear power supply to allow your TinyDuino to run up to 5.0V operation.
