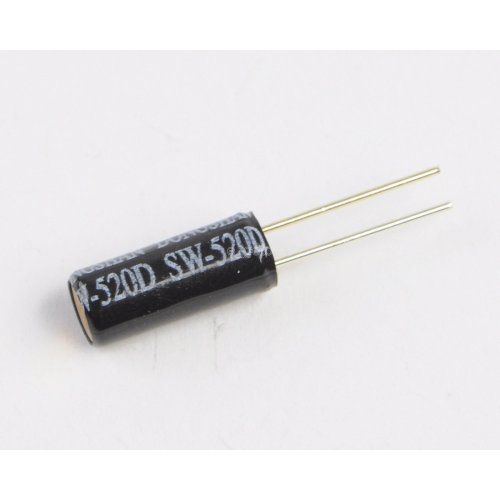

SW-520D Lacoste ball tilt switch
Electrical Characteristics:
- Voltage: < 12V
- Current: < 20ma
- Differential angle: 15 degree
- Contact Resistance: <10 ohm
- Insulation Resistance: >10M ohm
Mechanical Characteristics:
- Temperature Range: Operating: -40to 80°C, Storage: -40 to 80°C
- Pull force of terminal: 500gf for 1 minute
- Humidity: 95% RH, 40°C for 96 hours
- Operating lifespan: 100,000 cycles
- Solder Ability: After flux 260±10°C for 2±0.5 seconds 95% coverage
Roller Ball Tilt Switch
- Product Code:PRC-Tilt-swtch
- Reward Points:1
- Availability:In Stock
-
रo 15.00
- Price in reward points:15
