Low Power Consumption

Battery Life 367 Minutes: Samsung Galaxy S23+ 4700mAh

15X Zoom

Adjust the zoom with an intuitive, user-friendly pinch-to-zoom function. Seamlessly shift from near to far distances and go beyond what’s visible to the human eye.

Analyze with Ease

All the information you need for informed decisions: access post-process temperature data and generate professional reports on-the-go.

DIY Color Bar

Highlight the target area with a two-finger swipe or manually set the temperature.

Adjustable Emissivity

Adjust for ambient temperature, spot distances and emissivity to ensure accurate temperature readings across environments and surfaces.
Windown app download: here

12 Color Palettes

Accurately highlight temperature targets with the precision of 12 color palettes.

Specifications:

Model: P2 Pro Android | P2 Pro IOS
IR Resolution: 256×192 @12μm
Temp Accuracy: ±2℃ PCB Accuracy
Accessories: Magnetic Macro Lens

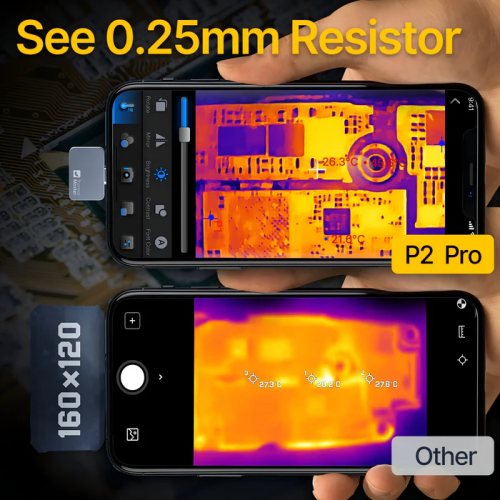

Circuit Board Testing: Observe 0.25mm resistor
Magnification: 15X Zoom
NETD: ≤40mK@25℃，F#1.0
Battery Life: 300~480 minutes (Eg: Samsung Galaxy S23+ 4700mAh batarry life 367 minutes)
Power Consumption: 0.33W
Frame Rate: 25Hz
IQ+ Precision Temp: Supported
Razor X: Supported
Colorbar Tech: Highlight temperature target
Free Prof Analysis: Free point/ line/ plane data analysis
Palette: 12 Palettes (white hot/ black hot/ iron red/ red hot + 8 other palettes)
Temperature Correction: Emissivity, Distance, Environmental temperature

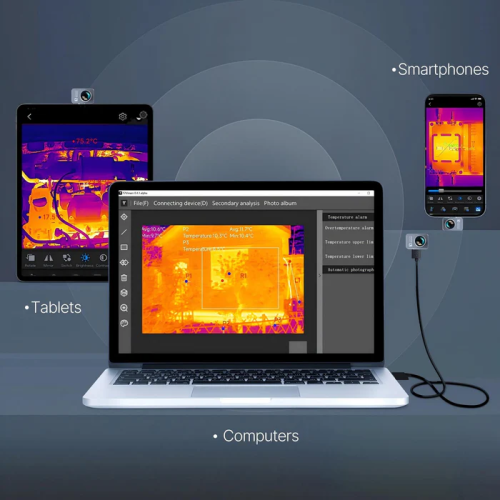

Adaptation Method: Smartphone/Tablet/Computer
Application Scenarios: Electrical/ HVAC/ Pipeline/ House/ Automotive Inspections
Infrared Core: Thermal Master High-Sensitivity Core
Focusing Mode: Athermalized Prime Lens
FOV: 56.0°(H)x42.2°(V)
Weight: 9g
Video Storage: Photo and video saving function
Size: 27mm×18mm×9.8mm
Operating Temperature: 5℉~131℉（-10℃～55℃）
Storage Temperature: -40℉~185℉（-40℃～85℃）
App Name: Temp Master
Support System: Android 6.0 and above | iOS 11 and above

Applications:

The P2 pro Android is an incredibly versatile tool, measuring temperatures from 4°F to 1112°F (-20°C to 600°C with ±2℃) accuracy. Easily detect heat signatures in the most challenging environments, whether you’re navigating rugged terrains to track games, or ensuring the safety of your home by locating animals or heat leaks.
