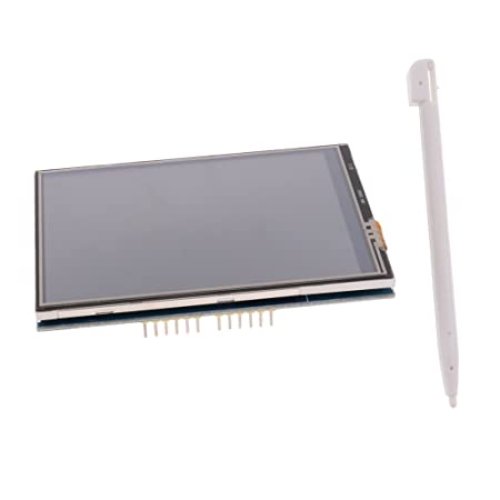

This 3.5 inch TFT LCD Module can be can be easy controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems which require display high quality colorful image. Please see the sample pictures, they are taken directly from the LCD display. The Module include a 5V>3.3V regulator, touchpad IC, PWM circuit and SD card slot.

This 3.5 inch TFT LCD Module is not an ordinary 3.5 inch Module, this module has a high resolution of 480x320, Ordinary 3.2 inch has only 320x240 resolution. This module has an double resolution and extremely fine dot pitch (0.139mmx0.139mm). It also include a touchpad and 12bit onboard touchpad controller. This LCD module is suitable for user require high resolution, brilliant display quality.

The TFT LCD Module has embedded Flash IC, which contain fonts of 10 sizes and 236 icons. The LCD module support Henning Karlsen's UTFT library, which can be downloaded here.

Features:

3.5 inch TFT LCD Module, High Resolution 480x320, ILI9481 Controller
Super fine dot pitch 0.1395 mm x 0.1395 mm
On board 32Mbit SPI Flash for storing fonts of 10 sizes and 236 icons for custom application development
Write images/icons to flash memory via SD card with zero programming
32Mbit can store 799 42x42 pixel icons/images
Touchpad: 12bit ADS7843 IC
On board PWM transistor for PWM backlight brightness control
Backlight: 6 white LED parallel
On board SD slot and Font IC for drawing text to the LCD
Module dimension: 99mm x 65mm x 15mm (including pin header extrusion)
Active Area: 74mm 49mm
Pixel pitch: 0.154mm x 0.154mm
Standard 2x 20 2.54mm pin header for connection to MCU/development board
Module weight: 65 grams
