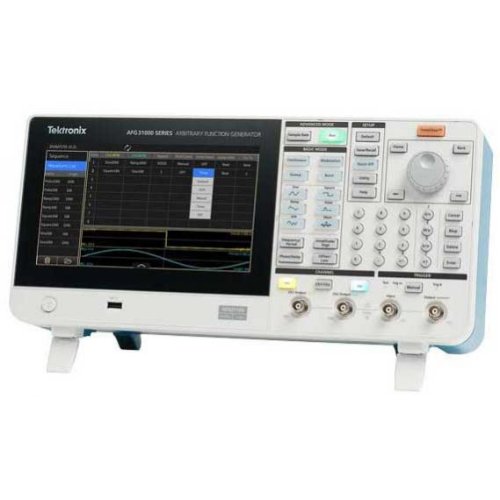

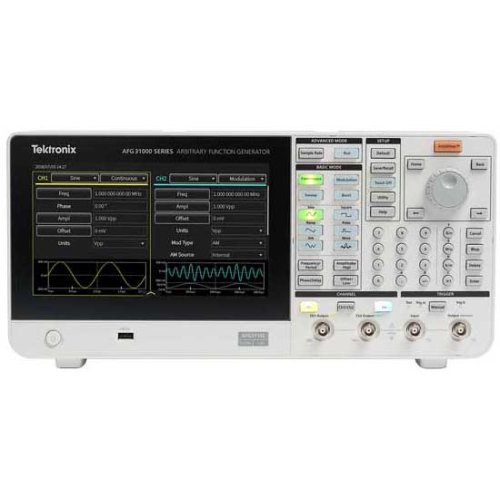

The Tektronix AFG31000 Series is a high-performance AFG with built-in arbitrary waveform generation, real-time waveform monitoring, and the largest touchscreen on the market. Providing advanced waveform generation and programming capabilities, waveform verification, and a modern touch-screen interface, the new AFG31000 is sure to delight and simplify the job of every researcher and engineer.

Features:

• Verify your waveform at the DUT:
  • Patented InstaView technology enables you to view the real waveform at the device under test (DUT) directly on the AFG without the need for an oscilloscope, probes, or additional equipment, saving test time and eliminating the risk of unmatched impedance in your test results.

• High-fidelity signals with advanced mode:
  • Generate long, precise waveforms in continuous mode with lengths up to 16 Mpts per channel right out-of-the-box. Variable sampling clock technology guarantees you will never lose any waveform data. Available upgrades let you take your testing to the next level and build and program complex waveforms at one-tenth the cost of a traditional AWG.
  • With optional upgrades you get:
    • Memory extension to 128 Mpts per channel (option MEM)
    • Sequence/triggered/gated modes (option SEQ) with up to 25 entries and controls for: branching, repeat, wait, jump, go-to, external trigger in, manual trigger, timed trigger, and SCPI command, for building long waveforms with complex and flexible timing.
• Simplified ARB waveform creation:

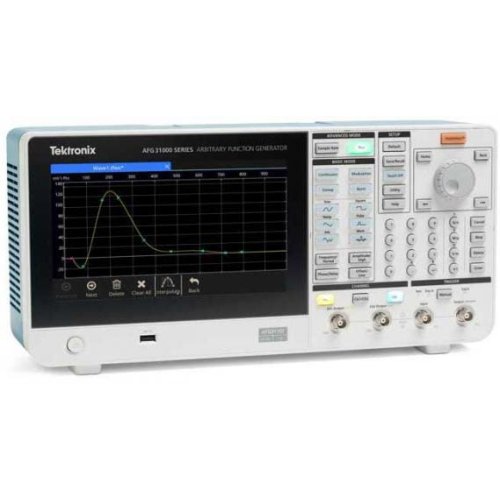

  • The built-in arb editing tool, ArbBuilder, includes all operations to create, edit and transfer an ARB waveform, eliminating the need to connect or transfer files to a PC. The amplitude and offset data is stored in the waveform, removing the need to adjust the settings after loading a normalized arb.
• Smart user interface:
  • Learn faster and work quicker with the largest AFG touchscreen on the market. The 9-inch screen works just like a smart device so you can pinch, zoom and scroll to easily locate settings and parameters on the simplified menu and find shortcuts to frequently used settings.
• Need more than two channels?
  • If you need more than two channels of waveforms to stimulate your device under test (DUT), multi-sync enables you to quickly sync up two or more units. The onscreen wizard will lead you through the process of cable connections and settings in less than three minutes.
• Strength in numbers:
  • 1 or 2 channel models
  • Output amplitude range 1 mVp-p to 10 Vp-p into 50Ω loads

• Reduce noise and jitter by 10x:
  • With a lower noise floor and output amplitude down to 1mVpp – the noise and jitter specs are 10x better than last generation technology ensuring clarity and fidelity for your test.

Applications:

• Advanced research
• Clock and system synchronization
• Replication of real world signals
• Component and circuit characterization and validation
• Embedded circuit design and test
• General purpose signal generation
• Double pulse test

Documents:

• Datasheet
• Manual
• Downloads

Warranty:

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x Tektronix AFG31021 / AFG31051 Arbitrary Function Generator
