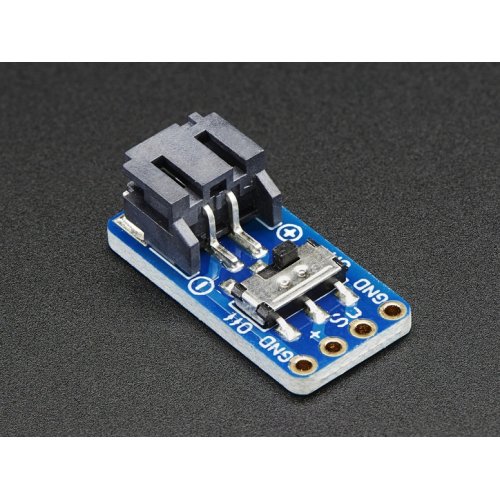

This switched JST connector is the best way to quickly prototype with our LiPoly batteries. We paired a genuine JST connector with a slide switch that can do up to 600mA. Both are soldered onto a breadboard-friendly breakout. There's two ground pins, one 'switched' power pin, and one pin that is always on. This is compatible with the "JST PH 2-pin" connectors we use in our battery packs.. Mates perfectly with all our 1-cell LiPoly and LiIon batteries as well as our 6V coin cell holder and 3xAAA battery pack.

Technical Details

Dimensions:

• 21mm x 10mm x 2mm / 0.8" x 0.4" x 0.08"
• Height with JST: 7.3mm
• Weight: 1g
• Datasheet for 2-pin R/A connector
• Datasheet for the onboard switch - we parallel-connected both switches
• EagleCAD PCB files on GitHub
• Fritzing object in the Adafruit Fritzing library
