Specifications:

• Measuring range: 0.03~25m
• Measurement accuracy:
•      ±15mm at 0.03m-2m, standard deviation of 5mm;
•      ±20mm at 2m-8m, standard deviation of 15mm;
•      ±30mm at >8m, standard deviation of 25mm
• Scanning angle: 360°
• Scanning frequency: 10Hz
• Measurement frequency: 21600 Hz
• Angular resolution: 0.167° @10Hz
• Operating voltage: 4.5~5.5V
• Power consumption: ＜300mA @5V
• Communication method: UART
• Anti-ambient light: 60klux
• Operating temperature: -10°C~ 50°C
• Storage temperature: -30°C~ 70°C

Applications:

Documentations:

• Datasheet
• Development Manual
• sdk_ldrobotsensorteam_stl_v3.0.5
• LdsPointCloudViewer-tool

Note: Please download all the files listed below and unzip them into the same folder.

• LdsPointCloudViewer tool Part1

• LdsPointCloudViewer tool Part2

• LdsPointCloudViewer tool Part3

• LdsPointCloudViewer tool Part4

• LdsPointCloudViewer tool Part5

Package Includes:

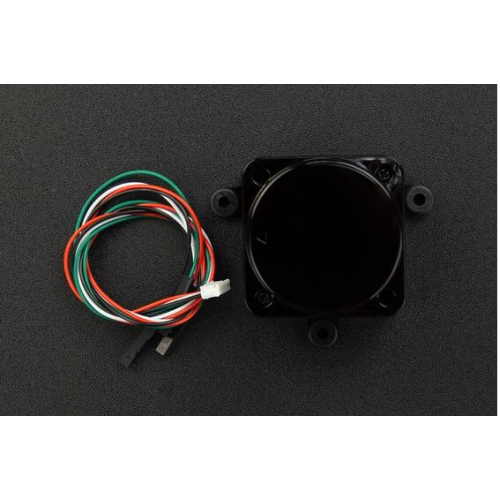

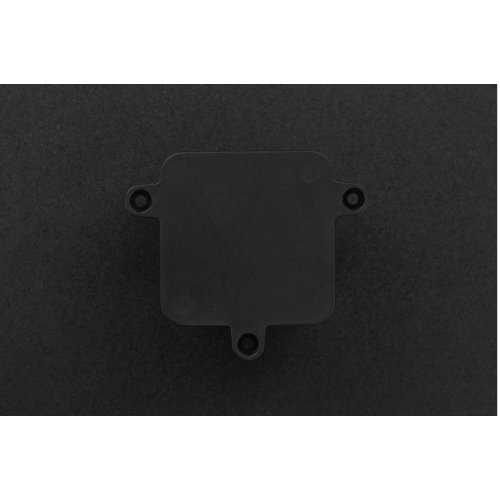

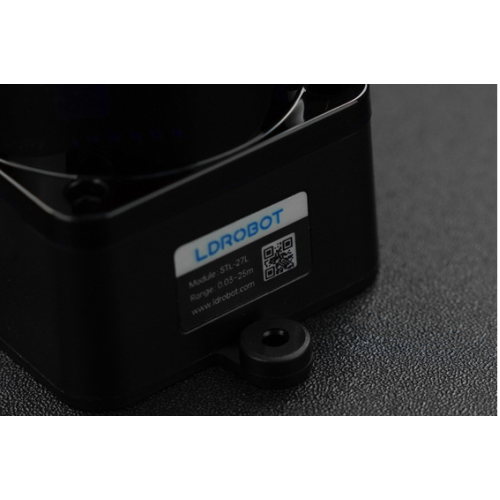

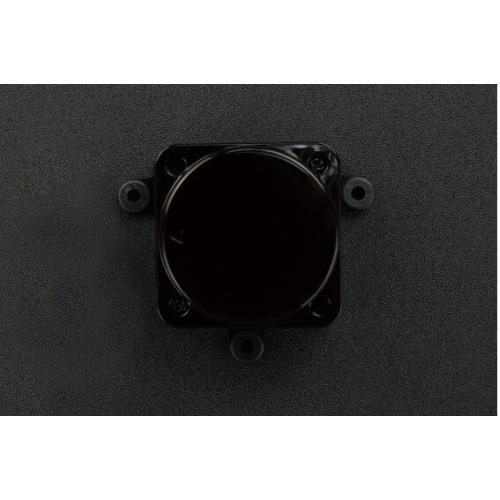

• 1 x STL27L 360° LIDAR (25m)

• 1 x 4-pin DuPont cable
