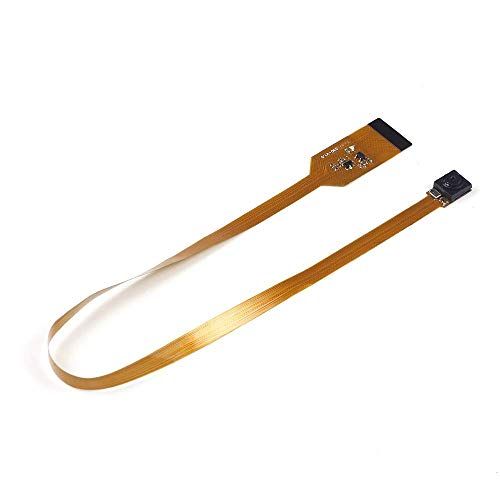

The board itself is tiny, at around 300mm x 16mm. The neck width of the camera module is 6mm, this highlight making it perfect for endoscope, spy surveillance or other applications where size and image quality are important. It connects to Raspberry Pi by way of a short ribbon cable. The camera is connected to the BCM2835/BCM2836 processor on the Pi via the CSI bus, a higher bandwidth link which carries pixel data from the camera back to the processor. This bus travels along the ribbon cable that attaches the camera board to the Pi.

The sensor itself has a native resolution of 5 megapixel, and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images, and also supports 1080p30, 720p60 and 640x480p60/90 video. It attaches to Raspberry Pi by way of one of the two small sockets on the board upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing to cameras. The CSI bus is capable of extremely high data rates, and it exclusively carries pixel data. The camera is supported in the latest version of Raspbian, Raspberry Pi’s preferred operating system.
Specifications:
SensorOmnivision OV5647 sensor
Optical Size1/4” (OV5647)
Resolution5MP 2592×1944
Frame Rates1080p 30 fps, 720p 60fps, 480p 90fps
IR SensitivityIntegral IR-cut filter, visible light only
Focus Distance1 m to infinity
Field of View(FOV)62°(H), 47°(V)
Full-frame SLR lens equivalent35mm
Focus TypeFixed Focus
Lens TypeStock Lens
Dimension300 x 16 mm flex cable, neck wide is 6mm

Applications:
  • Cellular phones
  • PDAs
  • Toys
  • Other battery-powered products
  • Can be used in all Raspberry Pi platforms
Note:
  • Raspberry Pi Board is not included in the package
  • It does not directly work with Pi Zero, please search SKU “B006603” to get raspberry pi zero camera
Documentations:
Package Includes:
  • 1 x ArduCAM B0066 1/4 Inch 5 Megapixels Sensor Spy Camera Module with Flex Cable for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+, 4

Write a review

Please login or register to review

ArduCAM B0066 1/4 Inch 5 Megapixels Sensor Spy Camera Module with Flex Cable for Raspberry Pi Model A/B/B+, Pi 2 and Raspberry Pi 3, 3B+, 4

  • Brand: ArduCAM
  • Product Code:ArdC-B0066-1/4-Inch-5MP-Sensor
  • Reward Points:29
  • Availability:In Stock
  • रo 2,738.00
  • रo 2,396.00

  • Price in reward points:2852

  • 10 or more रo 2,715.00
  • 25 or more रo 2,727.00
  • 50 or more रo 2,692.00
