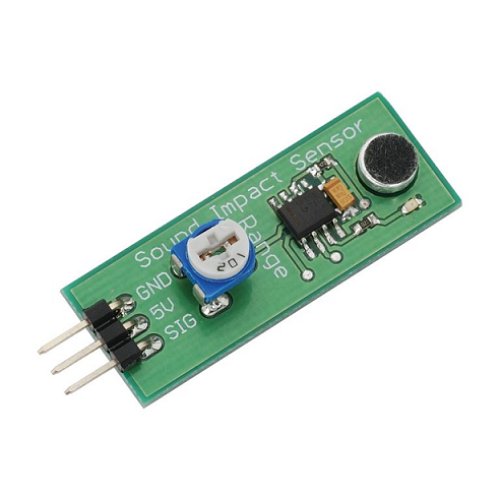

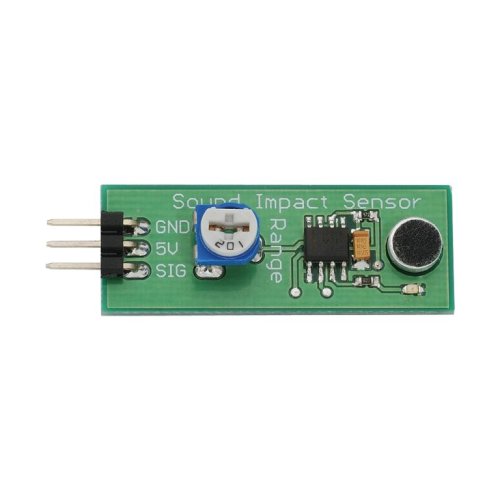

The Sound Impact Sensor detects sound from up to 3 meters away, lending noise-activation possibilities to your microcontroller projects.
Key Features:
- Detection range up to 3 meters away
- On-board potentiometer provides an adjustable range of detection
- 3-pin SIP header ready for breadboard or through-hole projects
- Easy interface to any microcontroller
Specifications:
- 3-pin SIP header ready for breadboard or through-hole projects
- Voltage requirements: 5 VDC
- Communication: Single bit high/low output
- Dimensions: 0.6 x 1.5 in (1.5 x 3.8 cm)
- Operating temp range: 32 to +158 °F (0 to +70 °C)
Application Ideas:
- Noise activated alarm system
- Holiday animated props
- Monitoring systems
Downloads:
- Sound Impact Sensor BS2 Example Code - 378 bytes
- Sound Impact Sensor Documentation - 60.17 KB
- Sound Impact Sensor Propeller Code - 7.6 KB
- Sound Impact Sensor Schematic & Eagle Files - 58.73 KB
Parallax 29132 Sound Impact Sensor
- Brand: Parallax Inc.
- Product Code:Plx-29132-Sound-Impact-Sensor
- Reward Points:7
- Availability:In Stock
-
रo 744.00
- Price in reward points:744
-
- 20 or more रo 738.00
- 40 or more रo 732.00
- 100 or more रo 726.00
- 200 or more रo 720.00
