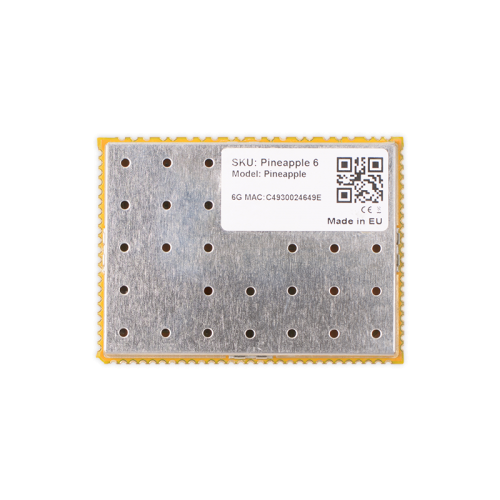

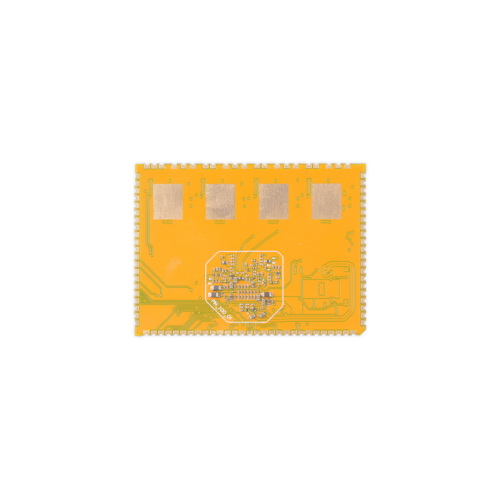

Pineapple 6E Designed for multi-gigabit applications. Pineapple is an 802.11ax Wi-Fi 6 and Wi-Fi 6E radio module for ultra-high speed enterprise connectivity.
Versions:
- Pineapple 2: 2400-2500MHz operating frequency range, 28dBm RF power per chain.
- Pineapple 5: 4920-5925MHz operating frequency range, 27dBm RF power per chain.
- Pineapple 6: 5925-7125MHz operating frequency range, 27dBm RF power per chain.
Specifications:

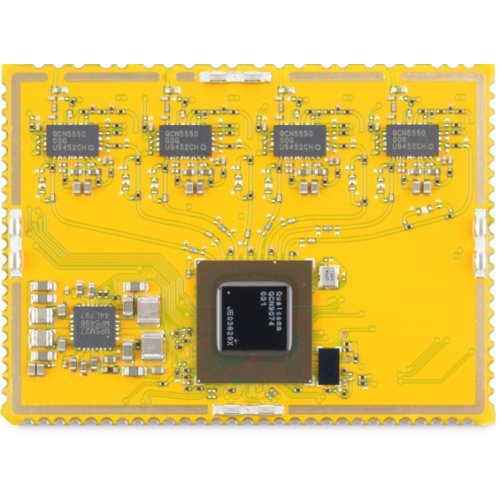

- Based on Qualcomm’s QCN9074 (Pine) chipset
- Commercial and industrial temperature range
- 4x4 MU-MiMo radio
- 160MHz channel width support
- 1024 QAM modulation
- Up to 4.8 Gbps data rate
- 4 download and upload OFDMAs
- Tri-band: 2.4 GHz, 5 GHz, 6 GHz full band support
Documents:
Package Includes:
- 1 x Pineapple 6E
8devices Pineapple 6E - Radio module
- Brand: 8devices
- Product Code:8dC-Pineapple-6E
- Reward Points:101
- Availability:In Stock
-
रo 10,175.00
- Price in reward points:10175
Available Options
