This product measures soil moisture levels by capacitive sensing, rather than resistive sensing like other types of moisture sensor. It is made of a corrosion resistant material giving it a long service life. Insert it into soil and impress your friends with the real-time soil moisture data!

The product includes an on-board voltage regulator which gives it an operating voltage range of 3.3 ~ 5.5V. It is compatible with low-voltage MCUs (both 3.3V and 5V logic). To make it compatible with a Raspberry Pi, an ADC converter is required.

This sensor is compatible with our 3-pin "Gravity" interface, which means it can be directly connected to the Gravity I/O Expansion Shield.

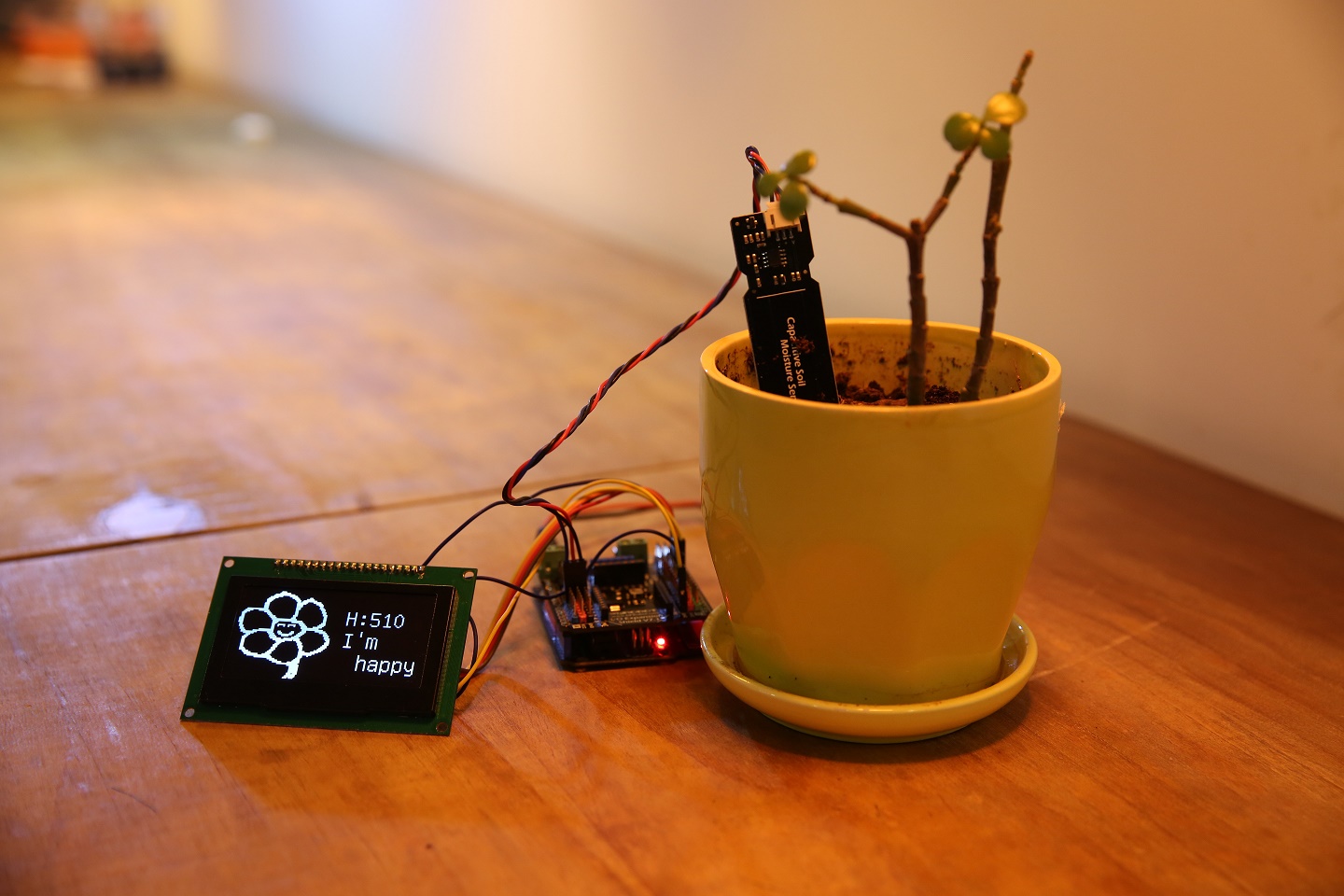

The following image shows an example project - a device that notifies you when a plant needs to be watered.




FEATURES

  • Supports Gravity 3-Pin Interface
  • Analog Output



APPLICATIONS

  • Gardening & Farming
  • Moisture Detection
  • Intelligent Agriculture



SPECIFICATION

  • Operating Voltage: 3.3 ~ 5.5 VDC
  • Output Voltage: 0 ~ 3.0VDC
  • Interface: PH2.0-3P
  • Dimension: 98mm * 23mm (3.86in x 0.905in)
  • Weight: 15g





DOCUMENTS



SHIPPING LIST

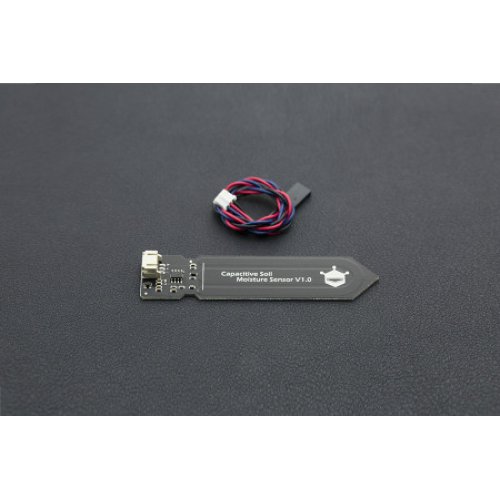

  • Capacitive Soil Moisture Sensor x1
  • Analog Sensor Cable x1

Write a review

Please login or register to review

Gravity: Analog Capacitive Soil Moisture Sensor- Corrosion Resistant

  • Brand: DFRobot
  • Product Code:DFR-Soil-Moisture-Sensor
  • Reward Points:6
  • Availability:In Stock
  • रo 579.00
  • रo 502.00

  • Price in reward points:598

  • 25 or more रo 576.00
  • 50 or more रo 574.00
  • 120 or more रo 559.00
