This power supply has the temperature protection, over current protection and short circuit protection, AC90 ~ 240 V input voltage, wide U ac/dc, high and low voltage isolation, DC5V output, small size, 431 precision voltage regulator

Use Environment

- Working temperature:-20 - 60°C

- Relative humidity:40 - 90%RH

Technical requirements

- Input voltage range:AC 90- 240v (DC 100-370V)

- Input current:0.0273A(AC110V)

0.014A(AC220V)

- Input Inrush Current: 20A

- Output voltage range:4.7V-5.2V, 0-700mA

- Output power:0 -3.5W

- Output efficiency:85%

- Size:4*1.5*1.8(cm)

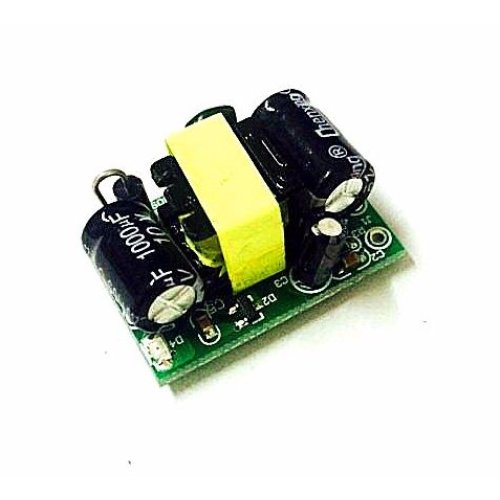

AC-DC Power Supply Buck Converter Step Down Module 5V 700mA

Product Code:PRC-Power-SM014-AC-DC
Reward Points:3
Availability:Out Of Stock

रo 230.00
रo 140.00
Price in reward points:285

Qty

0 reviews / Write a review
