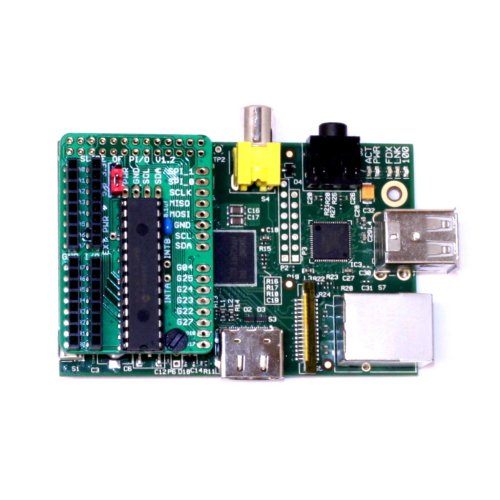

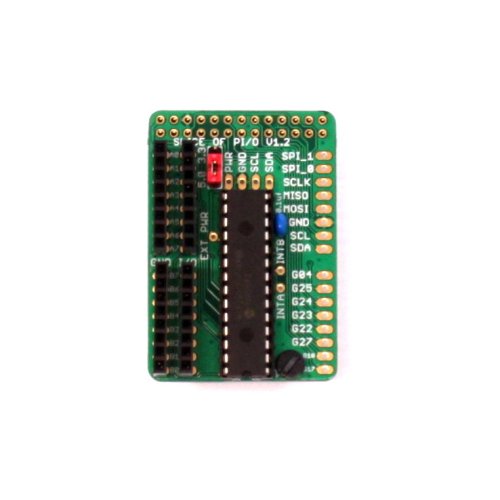

The Slice of Pi/O gives a Raspberry Pi an extra 16 buffered inputs or outputs. There's now quite a few people making boards with the MCP23017 driver chip on so there's lots of code examples about. The main features are:

Buffered output/input (protects your PI from miswires, shorts, overload and general abuse)
Construction is very easy (suitable even for children with basic soldering skills)
Supports 3.3v and 5v operation (selectable by jumper)
Can be powered externally also (for when your project needs more than the Pi can provide, remove red jumper and wire to pad "EXT POWER")
SPI and I2C pins to standard 2.54mm pitch holes (fast and easy access)
GPIO pins to standard 2.54mm pitch holes (fast and easy access)
Daisy chainable to 128 ports! (for when you need more than just 16 I/O's)
4 wire daisy chain connector (PWR/GND/SCL/SDA)
I2C address selectable (means you can run more than a single I2C board)

Features:

Gold plated finish (Protection against oxidization means your device will outlast normal solder finish boards)

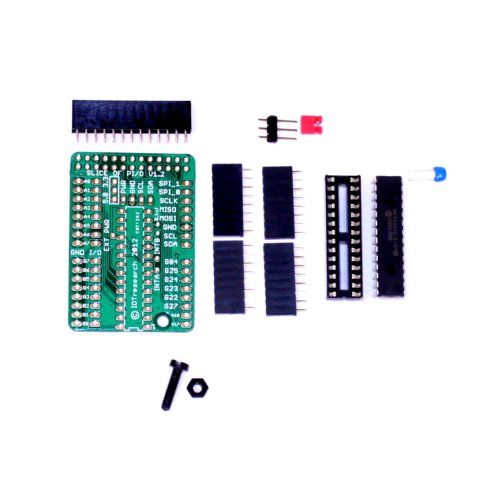

Comes as a complete "self solder" kit of parts
IC chip has decoupling capacitors to minimise noise
Upto 200ma at 5v can be drawn by the Pi
Upto 50ma at 3.3v can be drawn by the Pi
Pads for the MCP interupt pins
IC chip is socketed to allow for replacement if needed
Made in the UK
Dimensions: 35.5mm x 51.5mm x 18.9mm
