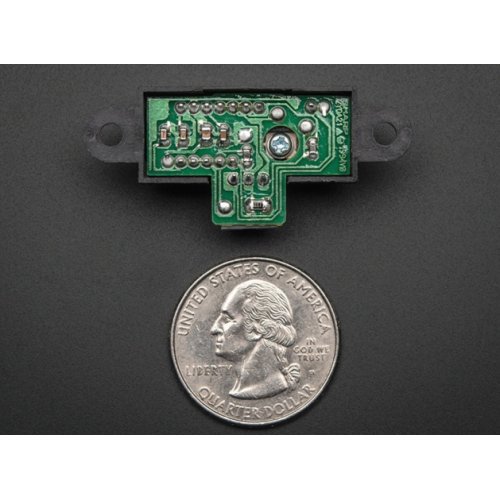

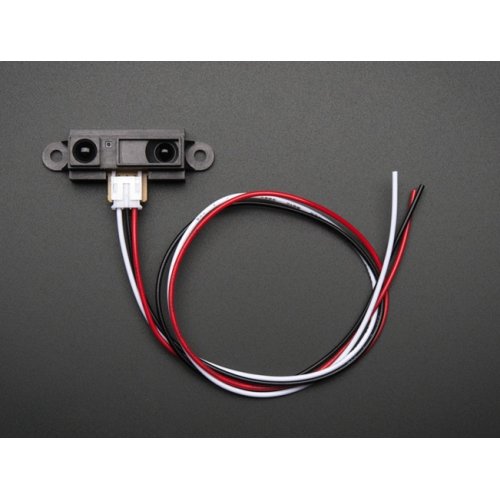

IR Distance Sensor - Sharp GP2Y0A21YK0F with wire connector

Features and Specifications:

  • Measuring Detecting distance is 10 to 80 cm
  • The maximum allowable Angle : > 40 °
  • The power supply voltage : 4.5 to 5.5 V
  • The average power consumption : 35 mA
  • Peak power consumption : about 200 mA
  • The frequency of updates/cycle : 25 Hz/40 ms
  • Analog output noise : < 200 mV
  • Less influence on the color of reflective objects, reflectivity
  • Line-up of distance output/distance judgement type :
  • Distance output type (analog voltage) : GP2Y0A21YK
  • Distance judgement type : GP2Y0D21YK
  • Judgement distance is  24cm
  • Adjustable within the range of 10 to 80cm [Optionally available])
  • External control circuit is unnecessary
  • Low cost

Write a review

Please login or register to review

IR Distance Sensor - Sharp GP2Y0A21YK0F

  • Product Code:PRC-IR-Object-Sensor-Sharp-GP2Y0A21YK0F
  • Reward Points:5
  • Availability:In Stock
  • रo 481.00

  • Price in reward points:481
