The EMC2101 from Microchip/SMSC is a fan controller with temperature monitoring, and it will take care of all of that for you. Programmable PWM output and tachometer input, with both internal and external temperature sensing, with a 1°C accuracy, it's a perfect friend for any 3 or 4-pin PC fan you may find.
Four pin PC fans have a power and ground pin (those are red and black) and then two more pins. One of those extra pins, the PWM pin, allows you to set the speed of the fan. The last TACH pin is for a tachometer output that allows the EMC2101 to monitor the speed of the fan to make sure it's working as expected. Instead of using a PWM output and counter input on your microcontroller, this chip will take care of that all for you, all over every-day I2C.
In addition to allowing you to control a fan, the EMC2101 includes an internal temperature sensor, as well as connections for an external temperature sensing diode. If you use an external temperature sensor, you can even configure a lookup table (LUT) that allows you to set different fan speeds depending on the temperature, and the EMC2101 will automatically adjust the speed depending on the temperature.
Warranty: 90 Days
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:
- 1 x I2C PC Fan Controller and Temperature Sensor

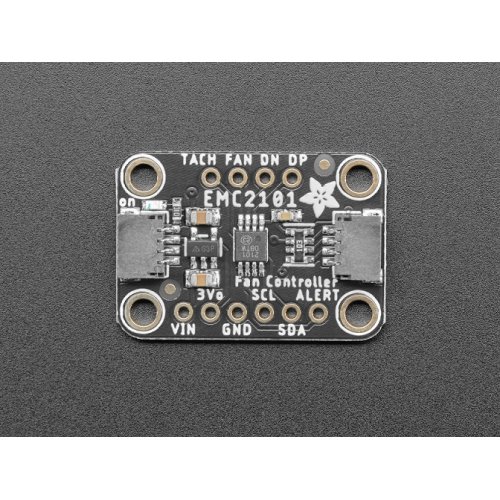

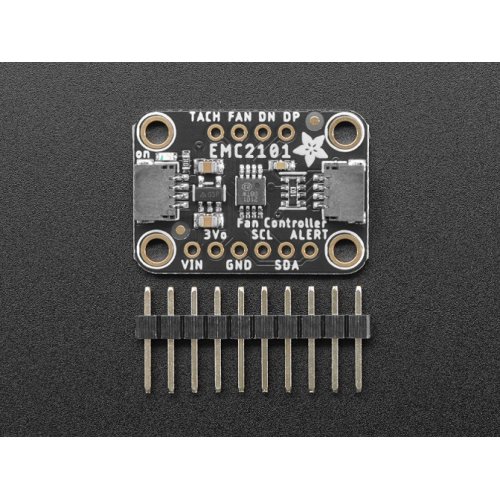

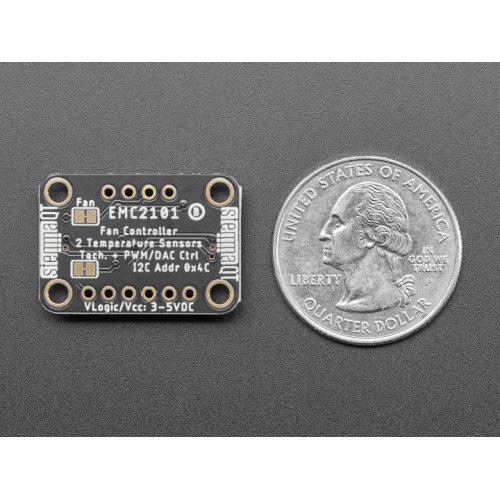

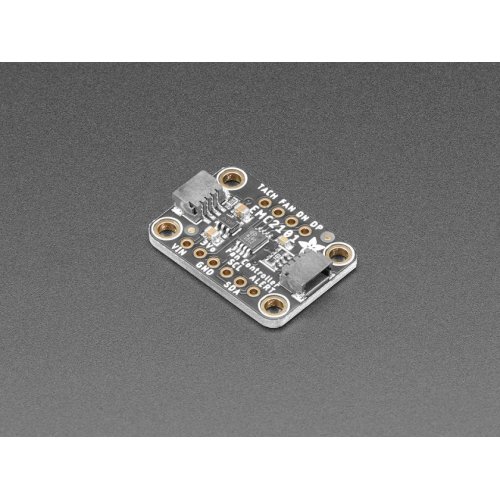

Adafruit 4808 EMC2101 I2C PC Fan Controller and Temperature Sensor
- Brand: Adafruit
- Product Code:Ada-4808-Fan-Controller
- Reward Points:6
- Availability:In Stock
-
रo 594.00
- Price in reward points:626
-
- 50 or more रo 519.00
- 260 or more रo 517.00
Available Options
Tags: Fan, Controller, Temperature, Sensor
