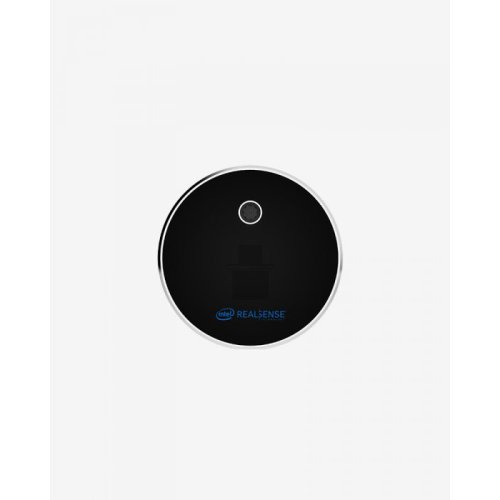

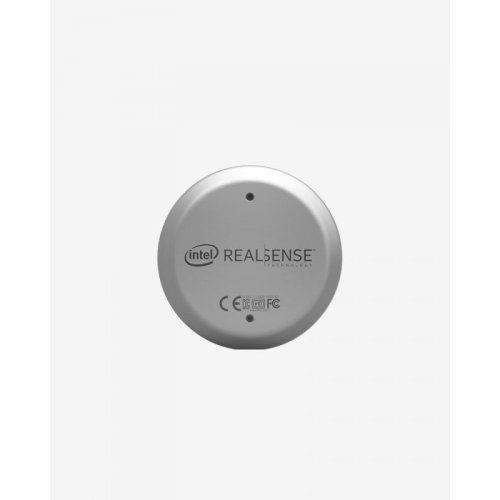

The Intel RealSense L515 is a revolutionary solid state LiDAR depth camera which uses a proprietary MEMS mirror scanning technology, enabling better laser power efficiency compared to other time‑of‑flight technologies. With less than 3.5W power consumption for depth streaming, the Intel RealSense LiDAR camera L515 is the world’s most power efficient high‑resolution LiDAR camera.

With its internal vision processor, motion blur artifact reduction and short photon to depth latency, the L515 is the right solution for capturing even rapidly moving objects with minimal motion blur.

Technical Specifications :

Use Environment	Indoor
Depth Technology	LiDAR
Main Intel® RealSense™ component	- Intel® RealSense™ Vision ASIC - MEMS Mirror
Depth Field of View (FOV)	70° × 55° (±2°)
Depth Stream Output Resolution	Up to 1024 × 768
Depth Stream Output Frame Rate	30 fps
Minimum Depth Distance (Min-Z)	0.25 m
Technology	Laser Scanning
Maximum Range	Approx. 9 meters at VGA resolution, with a maximum Z‑error of 15.5 mm at that distance
RGB Sensor Resolution and Frame Rate	1920 × 1080 at 30 fps
RGB Sensor FOV	70° (±3°) × 43° (±2°)
Camera Dimension (Diameter × Height)	61 mm × 26 mm
Connectors	USB-C* 3.1 Gen 1*
Mounting Mechanism	- One 1/4-20 UNC thread mounting point - Two M3 thread mounting points - Tripod
