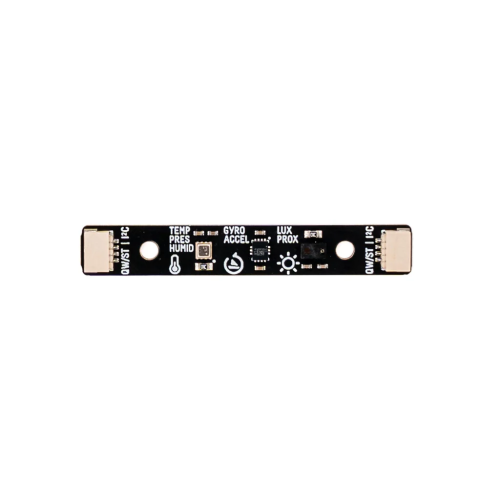

A 3-in-1 super sensor suite for environmental, light and movement sensing, with Qw/ST for easy, solderless connectivity.

We heard you like sensors (we definitely like sensors!). So we combined three of our favourite ones into a convenient, small, stick-shaped format that's perfect for adding additional smarts to a bunch of different projects. The onboard I2C sensors can detect:

Temperature
Pressure
Humidity
Light
Proximity
Orientation
Motion (including steps, single and double taps and freefall )

It has a Qw/ST (also known as STEMMA QT and Qwiic) connector at each end to make it easy to connect it up to Qw/ST compatible microcontrollers, HATs and other boards via cable. Qw/ST cables are sold separately.

Click here to view all things Qw/ST!

Features:

Bosch BME280 temperature, pressure, humidity sensor (datasheet)

Great for sensing conditions around your home
I2C interface (address: 0x76)

Lite-On LTR-559ALS-01 sensor (datasheet)

I2C interface (address: 0x23)
IR/UV-filtering
50.60Hz flicker rejection
0.01 lux to 64,000 lux light detection range
~5cm proximity detection range

STMicroelectronics LSM6DS3TR-C accelerometer and gyroscope (datasheet)

I2C interface (address: 0x6a)
±2/±4/±8/±16 g full scale
±125/±250/±500/±1000/±2000 dps full scale
Tap and double-tap detection
Free-fall detection
Pedometer / step detection

2x Qwiic/STEMMA QT connector
3.3V compatible
Compatible with Raspberry Pi computers
Compatible with Raspberry Pi Pico

Software

If you're planning on using the Multi-Sensor Stick with Raspberry Pi Pico (or another RP2040/RP2340 microcontroller) there are drivers for BME280 and LTR559 baked into our custom MicroPython builds. We've spun up a new standalone MicroPython library for LSM6DS3 - search for lsm6ds3-micropython in Thonny's 'Manage Packages' to install it.
