Features of the weather resistant MB8450, Car Detection Sensor, include centimeter resolution, short to long distance detection, range information from 500mm to 5000mm for the nearest detectable target, a ~4Hz read rate, and an easy to use USB interface.
The MB8450 Car Detection Sensor is a low‑cost vehicle detection sensor that uses ultrasonic technology for non-contact sensing. The MB8450 is designed to be an easy to use sensor for applications where vehicle detection is desired. This sensor is great for applications such as vehicle kiosks, ATMs, and bank drive throughs.
The MB8450 is factory calibrated to match sensor beam patterns and provide reliable long-range detection zones.
In addition, the MB8450 offers virtually noise free distance readings through the use of high-output acoustic power combined with continuously variable gain, real‑time background automatic calibration, real‑time waveform signature analysis, and noise rejection algorithms. This holds true even in the presence of many of the various acoustic or electrical noise sources.
Specifications:
- USB interface
- ~4 second target acquire time*
- ~5 second target release time*
- Multi-sensor operation
- ~250mS between range readings
- Maximum range of 500 cm (196 inches)
- Preset proximity detection zone of 150cm
- Vehicle detection sensor
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS compliant
- Virtually no sensor dead zone, objects closer than 50 cm typically range as 50 cm
- Small, light weight module
- Designed for easy integration into your project or product
Base :
| M B 8 4 5 0 |
Three-digit product code :
| CELL 1 | CELL 2 | CELL 3 |
Example :
| 0 | 0 | 0 |
CELL 1:
Housing Style :
| 0 | Not Applicable |
| 1 | 3/4" NPS WR |
| 2 | 3/4" NPS WRC |
| 3 | Ultra Compact |
| 4 | Ultra Compact Flush Mount |
| 5 | 1" NPS |
| 6 | 1" BSPP |
| 7 | 30MM 1.5 |
| 8 | Extended Horn |
CELL 2 :
Options Selected :
| 0 | No Options(Bagged) |
| 1 | F-Option |
| 2 | P-Option |
| 3 | F-Option and P-Option |
| 4 | No Options(Trayed) |
| 5 | TTL(Bagged) |
| 6 | TTL(Trayed) |
CELL 3 :
Wire Attach :
| 0 | No Wire Attach |
| 1 | Wire Attached |
The following table displays all of the active and valid part numbers for this product.
Active Part Numbers :
MB8450-000
Documents:
- Car Detection Sensor-datasheet
- Terminal.zip
- Terminal Configuration
- Sensor Selection Guide
- RoHS Declaration of Conformity
- CE Declaration of Conformity
- MTBF Report
- High Resolution Pictures.zip
Package Includes:
- 1 x Maxbotix MB8450 Car Detection Sensor

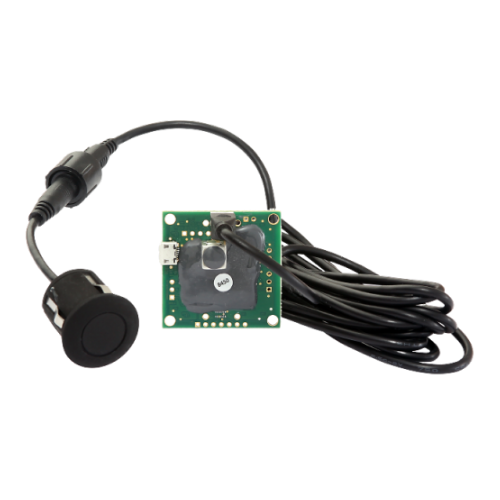

Maxbotix MB8450 Car Detection Sensor
- Brand: Maxbotix
- Product Code:Maxbotix-MB8450
- Reward Points:134
- Availability:In Stock
-
रo 13,276.00
- Price in reward points:13383
-
- 2 or more रo 13,169.00
- 5 or more रo 13,062.00
- 10 or more रo 12,955.00
