Soil moisture is the water stored in the soil. Soil temperature is the warmth of the soil. Soil electrical conductivity (EC) is the level of salts in soil (salinity). These parameters are very important indicators of soil fertility and health, which ultimately affect the plants. When there is a high soil salinity, the salt will make it difficult for the plants to consume water even though there is a high moisture level in the soil. This will ultimately "burn" the plants. Meanwhile, too much moisture in the soil is not only bad for the plants but also wastes water and adds extra burdens to our planet earth.

Features:

High Performance: high accuracy, reliability, and stability
Compact Design: 3-in-1, soil moisture, temperature, and EC sensor
Universal Protocol: MODBUS-RTU RS-485
Wide range power supply: 3.6V ~ 30V
Industrial-grade Robustness: IP68 rated, suitable for long-term applications
Widely Applicable: can be used in soil, water, nutrient solution, and other substrates
Strong Anti-interference: made of flame-retardant epoxy resin
High Durability: anti-corrosion, with excellent performance for long-term use
User-friendly: easy to use, install and integrate

Specifications:

Product Model	S-Temp&VWC&EC-02B
Interface	RS-485
Protocol	MODBUS-RTU RS485
Power Supply	3.6 ~ 30V DC
Current Consumption	6mA@24V DC (quiescent dissipation)
Operating Temperature	-40℃ ~ +85℃
Probe Material	Anti-corrosion special electrode
Sealing Material	Black flame-retardant epoxy resin
IP Rating	IP68
Cable Length	5 meters
Installation	All buried or probe into the media to be measured
Device Weight	210g
Soil Temperature	Range	-40℃ ~ +80℃
	Accuracy	± 0.5 ℃
	Resolution	0.1℃
Soil Moisture	Range	From completely dry to fully saturated (from 0% to 100% of saturation)
	Accuracy	±2% (0~50%) ±3% (50~100%)
	Resolution	0.03% (0~50%) 1% (50~100%)
Electrical Conductivity	Range	0 ~ 10000 μs/cm
	Accuracy	± 3%
	Resolution	10 μs/cm
	Temperature Compensation	Built-in temperature compensation sensor, Range: 0-50°C

Applications

Water-saving irrigation
Scientific Experiments
Greenhouse Management
Horticulture and Gardening
Golf turf Management
Grassland Management
Smart Agriculture
Soil Testing
Other Environmental Monitoring Scenarios

Documents:

Warranty: 12 months

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

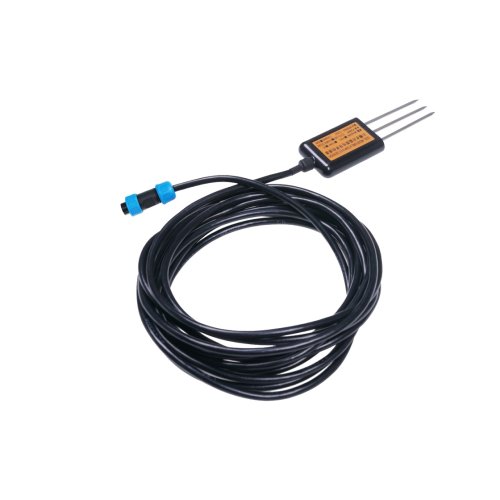

1 x Industrial Soil Moisture & Temperature & EC Sensor MODBUS-RTU RS485 (S-Soil MTEC-02B), with waterproof aviation connector

Industrial Soil Moisture and Temperature and EC Sensor MODBUS-RTU RS485, with waterproof aviation connector

Brand: Seeed Studio
Product Code:Seeed-S-Soil-MTEC-02B
