The EC & TDS Sensor measures the conductivity, salinity, and total dissolved solids (TDS) in a liquid. The output signal can be RS485 or Analog Voltage. Determining the conductivity, salinity, and TDS of a liquid has many important applications. The EC & TDS Sensor is widely used in monitoring water quality.
Features:
- High performance: high accuracy, fast response, good repeatability
- Universal protocol: MODBUS RS485, 0-2V
- Wide-range power supply: 3.9V ~ 30V
- Robustness: suitable to be immersed in water for a long time
- Durable: anti-corrosion, automatic temperature compensation
- User-friendly: Easy to install and integrate
Specifications:
| Output Interface |
Analog Voltage 0-2V
(Output resistance ~0ohm)
|
RS485
Modbus-RTU
|
| Power Supply |
3.9-30V/DC
|
3.9-30V/DC |
| Power Consumption |
6mA@24V DC
|
6mA@24V DC |
| EC Measurement |
Range: 0 - 20000us/cm
Resolution: 0-10000us/cm, 10us/cm; 100000-20000us/cm, 50us/c
Accuracy: 0-10000us/cm, ±3%; 10000-20000us/cm, ±5%
EC temperature compensation: 0-50°C
|
|
| Temperature Measurement |
Range: -40~80°C,
Resolution: 0.1°C,
Accuracy: ±0.5°C
|
|
| IP Ratings |
Electrode：IP68
Transmitter：IP65
|
|
| Operating Temperature | -40 ~ +85°C | |
| Installation |

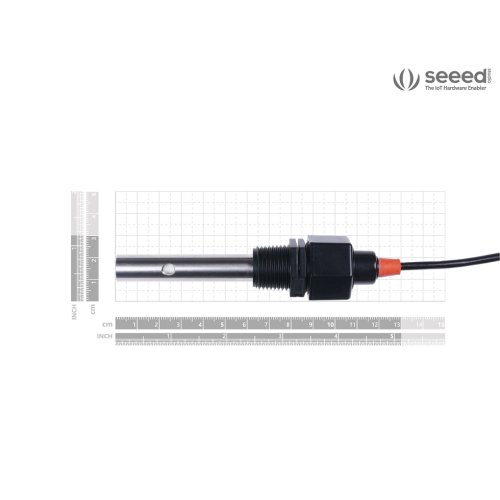

Electrode：1/2"NPT screw threads
Transmitter：Mounting hole
|
|
| Cable Length |
Power and Signal Cable：2 meters or Customize
Electrode Cable：5 meters
|
|
| Dimension |
Electrode：1/2"NPT screw threads
Transmitter：128*70*42mm
|
|
Applications:
- Agriculture
- Hydroponics and Aquaponics
- Sewage treatment
- Research
- Environmental monitoring
Documents:
Warranty: 12 months
- Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.
Package Includes:

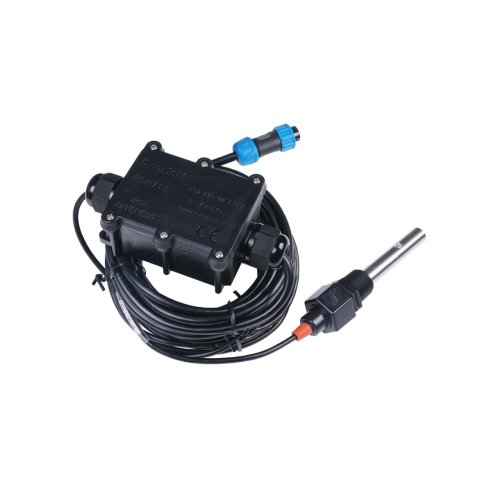

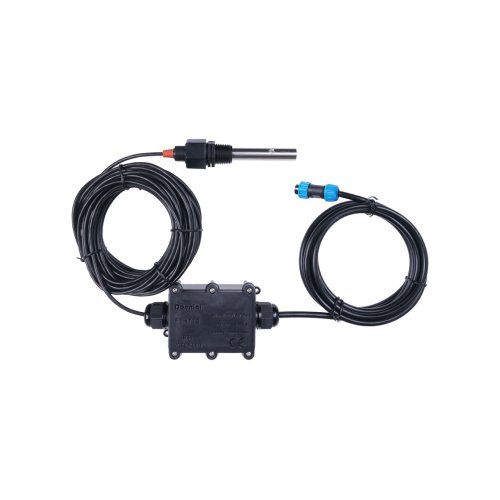

- 1 x Industrial ECTDS Sensor B MODBUS-RTU RS485 (B), with Waterproof Aviation Head
Industrial ECTDS Sensor B MODBUS-RTU RS485 (B), with Waterproof Aviation Head
- Brand: Seeed Studio
- Product Code:Seeed-ECTDS-Sensor-B
- Reward Points:172
- Availability:In Stock
-
रo 17,197.00
- Price in reward points:17197
-
- 85 or more रo 15,162.00
