| Property | Value | Notes |
| Size Range | 1" Diameter. | See line diagram for overall dimensions. |
| Force Sensitivity Range | .4 lbs. to 40 lbs. | With force spread across active area. |
| Pressure Sensitivity Range | .5 psi to 50 psi | Mechanical Interface dependent |
| Part-to-Part Force Repeatability | approx. +/- 15% of average resistance | With consistent actuation |
| Maximum Current | .5 mA | |
| Single Part Force Repeatability | +/- 5% of established nominal resistance | With consistent actuation |
| Force Resolution | 1% full scale | |
| Stand-Off Resistance | 10M ohm or greater | |
| Switch Travel | .005" | |
| Device rise time | 15 kHz or faster | |
| Lifecycle | 1 million plus actuations | |
| Temperature Range | -15°F to + 200° F | |
| Device Thickness | .017" | |
| Pliability |
- 1 x Force Sensitive Resistor - One InchThruMode

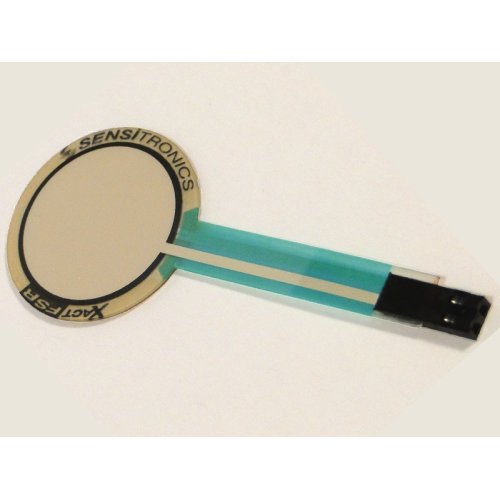

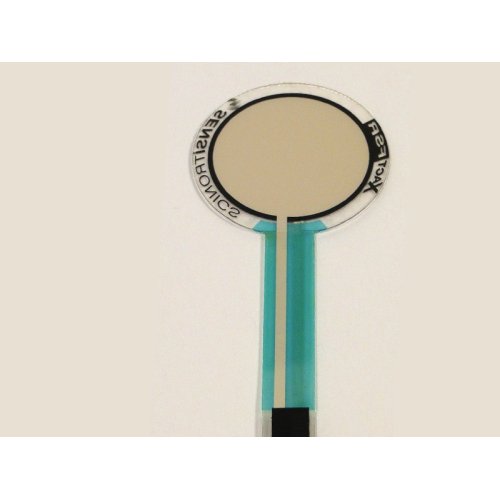

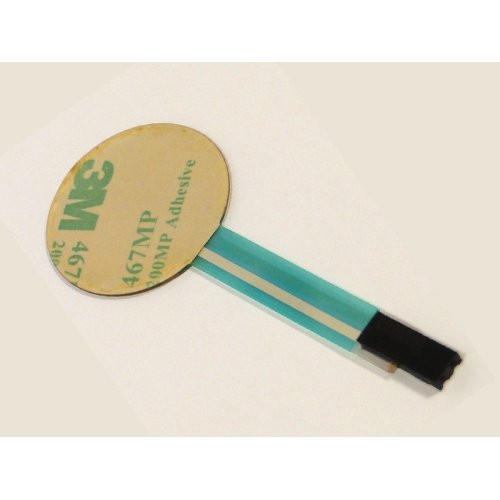

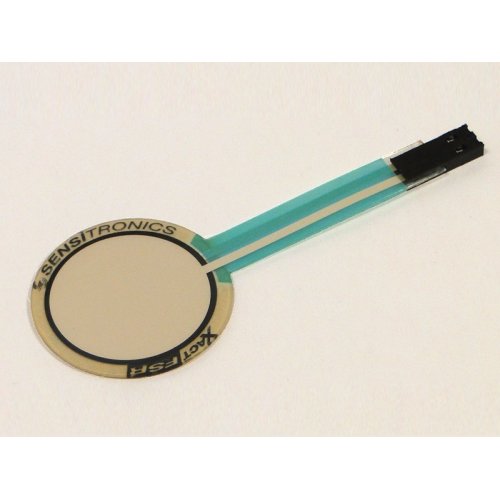

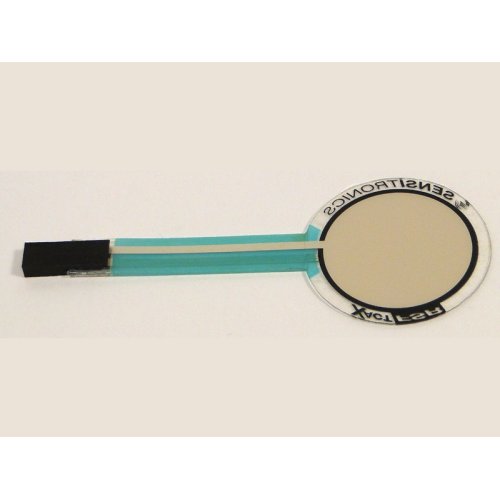

1 Inch ThruMode FSR
- Brand: Sensitronics
- Product Code:SEN-FSR-1-Inch-Thru-Mode
- Reward Points:12
- Availability:In Stock
-
रo 1,242.00
- Price in reward points:1242
-
- 15 or more रo 1,232.00
- 25 or more रo 1,222.00
- 65 or more रo 1,212.00
- 125 or more रo 1,202.00
Available Options
