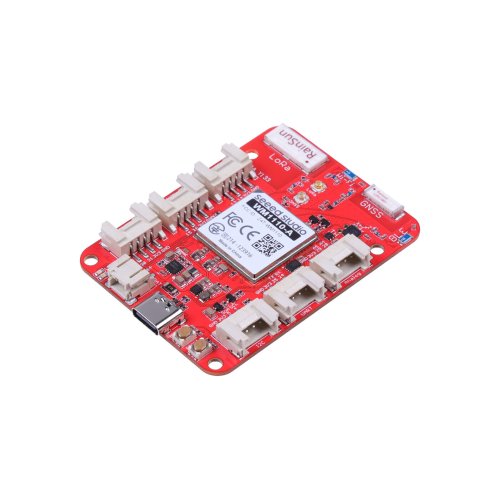

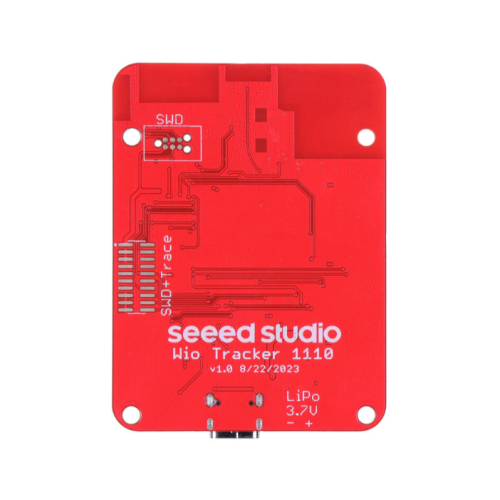

The Wio Tracker 1110 Dev Board is based on Wio-WM1110 Wireless Module and integrates Semtech's LR1110 LoRa® transceiver and a multi-purpose radio front-end for geolocation, it's a user-friendly, LoRa-based tracking development platform.

With its compact size and rich Grove interfaces, the Wio Tracker 1110 Dev Board is conveniently equipped with onboard antennas for easy deployment. It supports the Arduino development environment and LoRaWAN® protocol stack, making it ideal for tracking-related IoT projects.

Low Power LoRa Transceiver

Benefiting from Semtech's LR1110, the Wio-Tracker 1110 Dev Board provides long-distance, low-power LoRa communication. To learn about Long Range and its features such as network architecture and applications, you can check out An introduction of LoRa and LoRaWAN technology, It explains what Long Range is, how it works, and its pros and cons.

Multiple positioning technologies

The Wio-Tracker 1110 Dev Board integrates Multi-Purpose Radio Front-End Targeting Geolocation Purposes. It's equipped with GNSS(GPS/BeiDou) dedicated to outdoor positioning, as well as Wi-Fi Sniffer and Bluetooth scanning for indoor positioning. It's able to automatically transition between outdoor and indoor activities, replacing the need to build different trackers for indoor or outdoor use, this provides all-around location coverage while reducing complexity and cost.

Rich peripherals

In addition to the onboard temperature and humidity sensor(SHT41) and 3-axis accelerometer(LIS3DHTR), it features a series of peripheral interfaces, and supports ADC/UART and IIC transmission protocols, which can be connected to 300+ Grove modules, enabling easy upgrades to smarter solutions.

Quick Start Demo

We provide a plug-and-play demo, where users can simply scan a QR code, connect the power, get location and sensor data on the SenseCAP Mate APP within 5 minutes.

Develop User Applications

Wio-Tracker 1110 Dev Board is a fully open-source powerful IoT development platform, compatible with Arduino IDE, it comes with a set of example applications and code samples to help you get started smoothly and quickly.

Features:

• Powerd by Nordic nRF52840 and Semtech LR1110
• Offers multiple connectivity options including: LoRa®, GNSS(GPS/BeiDou), Bluetooth, Wi-Fi Sniffer
• Supports over 300+ Seeed Grove Sensors: making it highly adaptable for different tracking and sensing requirements.
• Onboard temperature sensor, humidity sensor, and a 3-axis accelerometer: capturing a wide range of environmental and motion data
• Fully Open Source Platform: Leverage the extensive LR1110 and nRF52840 open-source ecosystem for infinite application possibilities.
• Arduino IDE compatibility: allowing ease of programming and a familiar environment for developers.

Specifications:

LoRa® and Positioning (Semtech LR1110)

LoRaWAN® Protocol V1.0.3

Frequency Plan 863~928MHz

Sensitivity -125dBm @125K/SF7

                         -141dBm @125K/SF12

Output Power 20dBm max @LoRa®

Positioning Technology GNSS(GPS/BeiDou), WiFi Sniffer

Range 2~10km(Depends on antenna and environment)

Bluetooth(Nordic nRF52840)

Bluetooth Bluetooth 5.3

Flash 1MB

RAM 256KB

Protocol Bluetooth LE, Bluetooth mesh, Thread, Zigbee,

802.15.4, ANT and 2.4 GHz proprietary stacks

Output Power 6dBm max @Bluetooth

General

Voltage - supply 5V (USB 2.0 Type-C)

Battery Connector-4.5V

RFIO GNSS Antenna Connector x 1

LoRa Antenna Connector x 1

USB type-C x 1

Grove Interface ADC x 1

                                I2C x 1

                                UART x 1

                               Digital x 3

Button USER-Configurable button

RESET-Reset

Onboard Sensors

TH Sensor (SHT41)

Range Accuracy

Temperature        -40~125°C

                                 0.2°C

Humidity 0~100%RH

                        ±1.8%RH

3-Axis Accelerometer(LIS3DHTR)

Range ±2g, 4g, 8g, 16g

Bandwidth 0.5Hz ~ 625Hz

Sensitivity (LSB/g) 1000 (±2g) ~ 83 (±16g)

ECCN/HTS

• HSCODE 8543709990
• USHSCODE 8543708800
• UPC
• EUHSCODE 8543709099
• COO CHINA

Documentations:

• Wio Tracker 1110 Dev board v1.0_SCH.pdf
• Wio-WM1110_Module_Datasheet_V1.3

• Semtech LR1110 Datasheet

• Nordic nRF52840 Datasheet

• GitHub - Seeed-Studio/Adafruit_nRF52_Arduino at dev/wio_tracker
• Wio Tracker 1110 Introduction
• Quick Start for Using Wio Tracker 1110

Package Includes:

• 1 x Wio Tracker 1110 Dev Board
• 1 x Plastic Packing Box
