The Wio-E5 series is a high-powered long-range module designed with a convenient Stamp Hole form factor, allowing easy integration into a device's mainboard without requiring extra components. It supports a variety of frequency plans, including EU868/US915/AU915/AS923/KR920/IN865, and is compatible with LoRaWAN® Class A/B/C protocols. What's more, this module is pre-certified, making it cost-effective and swift for your entire device to obtain certifications and approvals from any regulatory agency.

The Wio-E5 has built-in AT command firmware, making it easy to create prototypes or applications with just a few simple commands for beginners. Experienced developers, on the other hand, can use the SDK to develop customized products.

This ultra-compact module has extremely low power consumption and is capable of supporting both (G)FSK and Long Range. With its built-in AT command firmware, makes it easy for developers to build their prototypes or applications. It can easily support LoRaWAN® protocols and a variety of frequency plans, making it an ideal solution for Long Range sensor nodes and a range of wireless communication applications. Whether you need to set up Wireless Meter Reading, IoT Nodes, or a Sensor Network, the Wio-E5 is perfectly suited for low power wide area IoT scenarios.

  • With this module, you can connect to different LoRaWAN server platforms like TheThingsStack, Chirpstack, and others.

Seeed is the official ST Authorized Partner to bring you STMicroelectronics solutions from Modules to Development Boards, one-stop prototyping services with Seeed Fusion, and integration customization.

  • If you want to learn about Long Range and its features such as network architecture and applications, you can check out this article LoRapedia, which introduces Long Range and Long Range in detail, It explains what Long Range is, how it works, and its pros and cons.
  • If you're looking for a tool for both Long Range sensor network management and Car Hacking, our newly released Wio-E5 CAN Development Kit is based on the Wio-E5 module, with a built-in CAN controller MCP2515 that supports CAN FD, CAN2.0, and RS485 communication. It's a versatile and useful tool that provides an excellent user experience.

Note:

  • If your primary goal is to minimize power consumption, and your operating range is relatively short, then Wio-E5-LE is the right choice.

We've enhanced our development platform by updating the integrated Wio-WM1110 Module, built on LoRaWAN® communication. This module offers not just the LoRa communication technology found in the Wio-E5 but also includes a radio front-end with multiple positioning features, such as GNSS (GPS/ BeiDou), Wi-Fi, and Bluetooth. It's ideal for both the indoor and outdoor positioning needs of developers.

If you have an interesting concept for Wio-E5 or Wio-E5-LE and are willing to share it, we can help you make it a reality with Seeed Fusion’s one-stop-shop capabilities. You can receive up to two PCBA boards absolutely FREE for one design, covering PCB production, parts, assembly, and shipping. The design must include Wio-E5 or Wio-E5-LE. For more information, please click here.

Note:

  • Our Wio-E5 LoRa module is now IC-certified for Canada!
  • Currently shipped Wio-E5 modules may come with either new or old labels, but product functionality remains consistent, and certification is universally applicable.

Note:

  • In the antenna selection for Wio-E5, we provide the following two references to ensure improved RF performance and compliance with CE/FCC regulations:
  • Dipole Antenna (up to 2.0 dBi): This antenna is utilized for Wio-E5 certification. For more information, please refer to the certification report or SKU 113070002.
  • Spring-loaded Antenna (up to 1.1dBi): This is the antenna employed by the SenseCAP S210X LoRaWAN sensor.

Features:

  • High Performance: The transmit power up to 22dBm @868/915MHz; -136.5dBm sensitivity for SF12 with 125KHz BW.
  • Long Distance Use: 158dB link budget.
  • Wireless Connectivity: Embedded Long Range protocol, supports global Long Range frequency plan.
  • Abundant peripherals: Equipped with a variety of GPIO interfaces like UART, I2C, and ADC, this module offers great flexibility for developers looking to expand peripherals.
  • Easy to Use: Has built-in AT command firmware and supports custom product development using an SDK.

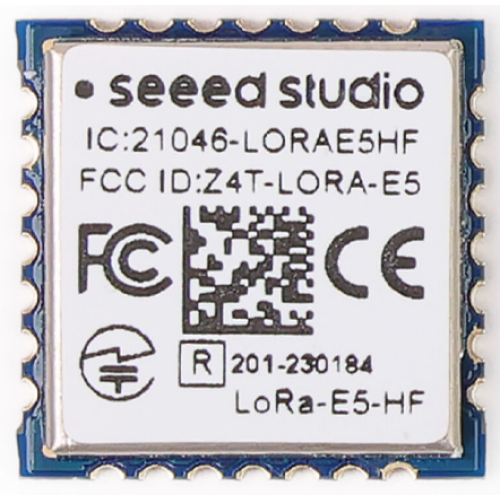

  • FCC, CE, IC and TELEC Certified

Specifications:

ITEMs Parameter Specifications Unit
Core MCU ARM Cortex M4
Storage 256KB Flash, 64KB SRAM KB
Structure Size 12(W)*12(L)*2.5(H) mm

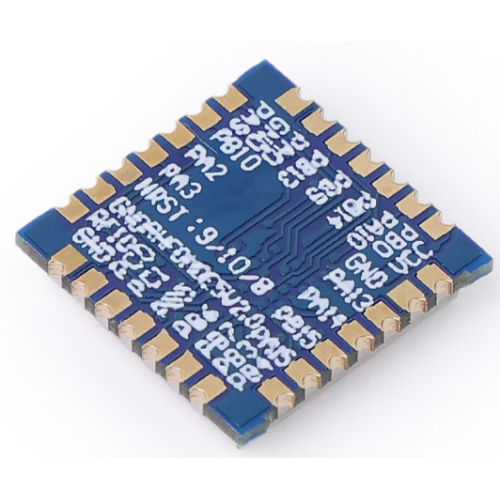

Package 28 pins, SMT
Electrical Characteristics power supply 3.3V type V
Minimum sleep current 2.1uA(SOC) uA
Operation current (Transmitter+MCU) 50mA @10dBm in 434MHz type mA
111mA @22dBm in 470MHz type
111mA @22dBm in 868MHz type
Operation current (Receiver+MCU) 6.7mA @BW125kHz, 868MHz type mA
6.7mA @BW125kHz, 434MHz type
6.7mA @BW125kHz, 470MHz type
Output power 10dBm max @434MHz dBm
22dBm max @470MHz
22dBm max @868MHz
Sensitivity @SF12, BW125kHz dBm
Fr(MHz) min type max
434 - -135 -136
470 - -137 -138
868 - -135 -137
Harmonics < -36dBm below 1GHz dBm
< -40dBm above 1GHz dBm
Interface RFIO RF port
UART 3 groups of UART, include 2 pins
I2C 1 group of I2C, include 2 pins
ADC 1 ADC Input, include 1 pin, 12-bit 1Msps
NRST Manual reset pin input
SPI 1 group of SPI, include 4 pins
Working Temperature -40℃ ~ 85℃

Applications:

Would like to learn more about the application scenarios of the Wio-E5 module? Please check out the following real-world use cases:

  • Solar-Powered Outdoor LoRaWAN Air Quality Monitor
  • Low-Power Snow Depth Sensor Monitoring for IoT Smart City Based On Wio-E5 Applied in Norway
  • Developed Stream Runoff Monitoring Sensors Using Wio-E5 to Measure The Temperature, Quality and Flow
  • Smart City: Wio-E5-based Indoor Air Pollutant Detection Project
  • Wio-E5 & ESP32 Powered WiLoBlIno
  • Loko: The Tiniest GPS Tracker with Built-In Wio-E5 Module Can Track Any Wild Animals and Drones

Development Tools:

To facilitate your development, we have designed Wio-E5, Grove Wio-E5, Wio-E5 mini Dev Board, Wio-E5 Dev Kit that you can choose according to your needs to speed up your project development.

Package:

We provide two packaging options for the LoRa-E5 module, differing mainly in the number of packages. Please choose the version that best aligns with your requirements.

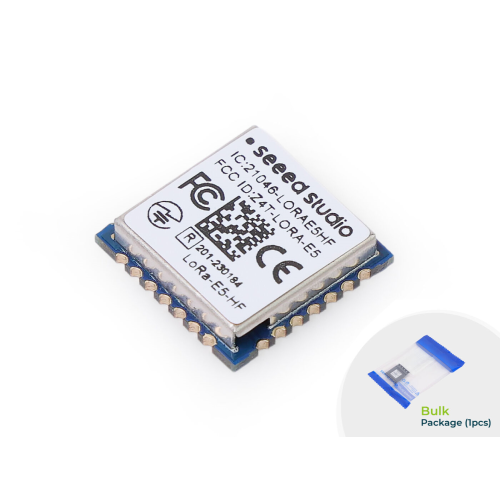

  • This one is the Bulk version, the modules are packaged individually, and we can deliver any quantity of modules in bulk. Please note that there is a potential moisture risk with this separate packaging option.
  • Another version is the Tape Reel version, it is recommended for automated SMT assembly, as it comes in reel form. Please note that if you select the Tape Reel version and quantities less than 1000 pieces will be sent in cut tape form and quantities of 1000 pieces or more will be sent on reels of 1000 pieces, with the remainder sent in tape form.

ECCN/HTS:

  • HSCODE 8517709000
  • USHSCODE 8517180050
  • UPC
  • EUHSCODE 8517180000
  • COO CHINA
  • CE 1
  • EU DoC 1
  • FCC 1
  • RoHS 1
  • UK DoC 1

Documentation:

Package Includes:

  • 1 x Wio-E5 Wireless Module

Write a review

Please login or register to review

Wio-E5 Wireless Module (Bulk) - STM32WLE5JC, ARM Cortex-M4 and SX126x embedded, supports LoRaWAN frequency plan on EU868, US915 and more

  • Brand: Seeed Studio
  • Product Code:Seeed-Wio-E5-Wireless-Module
  • Reward Points:9
  • Availability:In Stock
  • रo 852.00

  • Price in reward points:852

  • 100 or more रo 825.00
