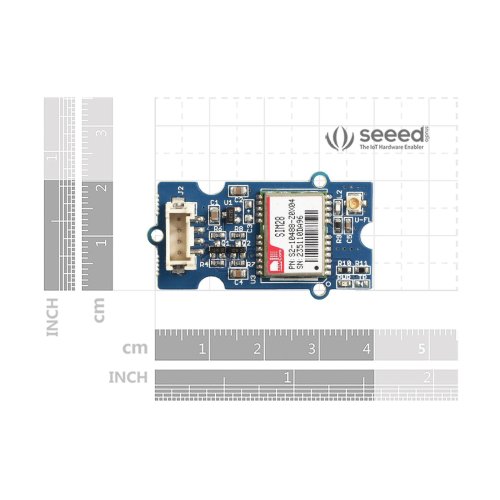

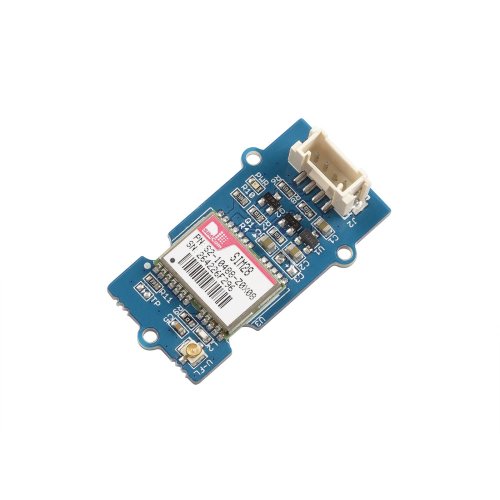

The Grove - GPS module is a cost-efficient and field-programmable gadget armed with a SIM28 module and serial communication configuration. Similar to other Grove series sensors, it plugs directly into the Grove UART interface development board and provides a precise, sensitive, low power GPS module for position recognition anywhere in the world. It features 22 tracking / 66 acquisition channels GPS receiver. The sensitivity of tracking and acquisition both reach up to -160dBm, making it a great choice for personal navigation projects and location services, as well as An outstanding one among products of the same price class.
How do GPS modules work?
Satellite Technology. GPS modules contain tiny processors and antennas that directly receive data sent by satellites through dedicated RF frequencies. From there, it’ll receive timestamp from each visible satellites, along with other pieces of data. If the module’s antenna can spot 4 or more satellites, it’s able to accurately calculate its position and time.
This GPS module can be used to locate your Raspberry Pi and Arduino. To realize its tracking function, some basic elements will be needed, here is a table to introduce them.
Grove – GPS Module vs Grove – GPS (Air530)
Specifications |
Grove – GPS Module |
Grove – GPS (Air530) |
---|---|---|
Size |
40mm x 20mm x 13mm |
40mm x 20mm x 13mm |
Update Rate |
1Hz, max 10Hz |
– |
Baud Rate |
9,600 – 115,200 |
9600 –921600 |
Navigation Sensitivity |
-160dBm |
–166dBm |
Power Requirements |
3.3/5V |
3.3/5V |
Number of Channels |
22 tracking, 66 channels |
– |
Time to first start |
Cold start: 13sWarm start: 1-2sHot start: <1s |
Cold start: 30 secondsWarm Start: 4 seconds |
Antennas |
Antenna included |
Antenna included |
Accuracy |
2.5m GPS Horizontal Position Accuracy |
2.5m Horizontal positioning accuracy |
Applications :
- GPS tracker
GPS navigation :
- Distance measurement
Specification :
- Input Voltage: 3.3/5V
- BaudRate: 9600 - 115200
- Default BaudRate: 9600
Document:
- SIM28_DATA_File
- U-Blox u-center GPS evaluation software
- U-Blox6 Receiver Description Protocol Spec
- GPS Eagle File
- E-1612-UB Datasheet
- GPS Schematic(PDF)
- SIMCom_GPS_DEMO_V1.07
Technical details :
- Dimensions: 40mm x20mm x13mm
- Weight: G.W 17g
- Battery : Exclude
ECCN/HTS:
- HSCODE 8529101000
- USHSCODE 8473305100
- UPC 841454108290

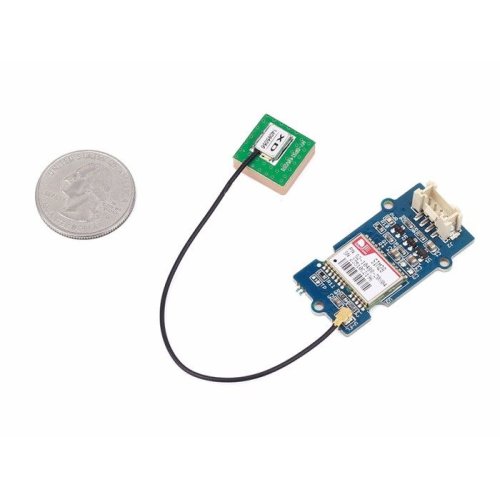

Package Includes:
- 1 x Grove - GPS
- 1 x Grove - Cable
Grove - GPS Module
- Brand: Seeed Studio
- Product Code:Seeed-Grove-GPS-Module
- Reward Points:19
- Availability:In Stock
-
रo 1,865.00
- Price in reward points:1865
-
- 85 or more रo 1,585.00
