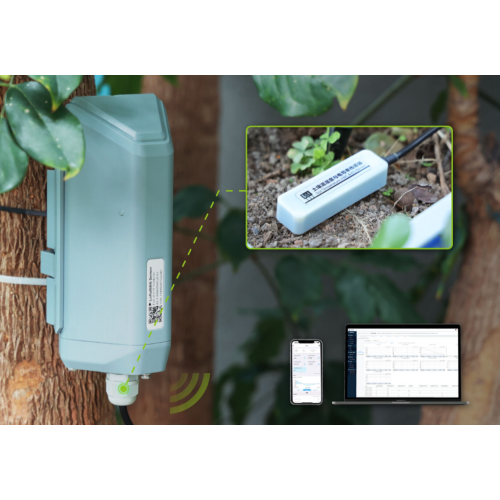

A battery-powered IP66 wireless soil moisture, temperature, and  pore EC sensor, range from 0 ~ 100% (m³/m³), -40 ~ 80℃, and 0 to 20 ms/cm(Bulk), 0 to 32ms/cm(Pore) equipped with built-in Bluetooth and APP service for OTA configuration and remote device management. Used in smart farming, smart yard, and environment monitoring solutions.

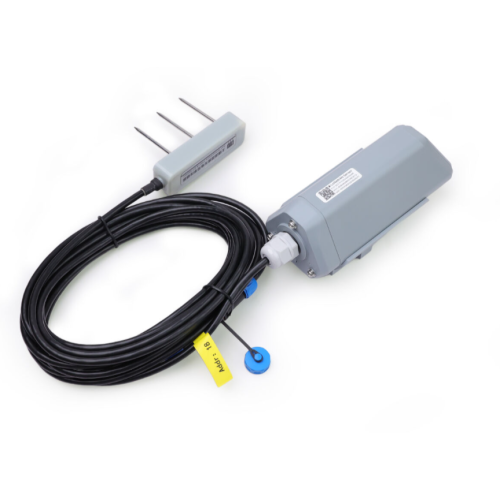

SenseCAP LoRaWAN S2108 Sensor measures moisture, temperature and Pore EC at the range of 0 ~ 100% (m³/m³), -40 ~ 80℃,and 0 to 20 ms/cm(Bulk), 0 to 32ms cm(Pore) respectively. Soil electrical conductivity (EC) is a metric of the salt content in the soil which will affect crop yield and quality, plant nutrient availability, and the activity of soil microbes. S2108 can be widely applicable in soil sensing scenarios. It is specifically optimized for OTA with built-in Bluetooth, which enables quick setup and update. Benefiting from LoRa and IP66 design, this sensor features stability and reliability and can cover a long transmission range while keeping lower power consumption. Unlike wireline devices, it is battery-powered, reducing the workload and complexity of the deployment, and can be disassembled and installed in a few minutes.

SenseCAP S210X is a series of wireless LoRaWAN sensors.


It can cover a transmission range of 2km in urban scenes and 10km in line-of-sight scenes while keeping lower power consumption during the transmission process. Together with a replaceable battery that supports up to 10 years of usage and an industrial IP66 enclosure. It supports -40 ~ 85℃ operating temperature and can be deployed in harsh environments. SenseCAP S210X is compatible with LoRaWAN V1.0.3 protocol and can work with LoRaWAN gateway.


LoRaWAN gateways can provide LoRaWAN network coverage which is required when using such sensors. S210X can be connected to different LoRaWAN  gateways while what Seeed provides offers you a seamless user experience.

Helium Network: Sensors work in areas covered by Helium Network (Check on Helium Explorer). You can check the SenseCAP M1 and SenseCAP M2.

LoRaWAN Network: Sensors work in LoRaWAN® networks, like The Things Network, Loriot, Chirpstack, etc. You can check the SenseCAP Outdoor Gateway and the SenseCAP M2 Multiplatform Gateway.

We highly recommend that you use our SenseCAP M2 Multi-Platform LoRaWAN Gateway, which is a standard LoRaWAN® gateway that supports connection to different network servers. With its affordable price of $99, its cost-effectiveness becomes a standout advantage, especially when building your private LoRaWAN network.

Seeed provides the SenseCAP Portal platform and SenseCAP Mate APP to help users better manage and check data remotely

SenseCAP Portal is a web service to enable users to manage SenseCAP devices and view data through the web.

  • Bind and manage all devices in one account
  • Includes Dashboard, Device Management, Data Management, and Access Key Management
  • Provides MQTT and HTTP API to users for further development

SenseCAP Mate is a powerful APP for data visualization and remote device management.

  • Save time - provides a scan-and-play experience to enable users to complete the whole configuration in 4 steps
  • Works for people with less or no technical background to get started with sensor data easily
  • Acquire and view data on clean user interfaces
  • Set time intervals: improve the battery efficiency
  • Set threshold values: focus on the data you need to take action for - coming soon
  • Send alarms if data is out of the safe range - coming soon


High-performance Guarantee


We are well aware that the sensors may work under harsh outdoor conditions. To ensure that the performance and durability of the sensors are consistent with their specifications throughout the complete lifecycle, SenseCAP S210X went through 6 reliability tests before releasing and met the requirements to perform perfectly in extreme conditions.

  • High-Low Temperature Test - determine performance under adverse temperature conditions.
  • Conformance Test - whether the collected values of multiple devices are consistent
  • Waterproof Test
  • Freezing Test
  • Long-Range Communication Test - whether the device loses packets under long-distance transmission
  • R&D and Production Test - to test the pass rate of multiple devices under factory conditions

Features:

  • Compatible with Worldwide LoRaWAN Networks: Compatible with different types of LoRaWAN® gateways to enable fast connection with LoRaWAN networks (support the universal frequency plan from 863MHz ~928MHz).
  • Long Range & Battery powered: Ultra-wide-transmission range of 2km in urban scenes and 10km in line of sight scenes. Powered by easily replaceable standard Li-SOCl2 battery (type: ER34615)  with Max.10 years of battery life.
  • Designed to Use in Harsh Environments: -40℃ ~ 85℃ operating temperature and IP66-rated enclosure, suitable for outdoor use, high UV exposure, heavy rain, dusty conditions, etc.
  • Simple Configuration: SenseCAP provides a no-code experience that enables users to finish configuration with 4 steps through SenseCAP Mate APP.

Specifications:

Soil Temperature

  • Range -40 to +80 ℃
  • Accuracy ±0.5 ℃
  • Resolution 0.1 ℃

Soil Moisture (VWC-Volumetric Water Content)

  • Range 0 to 100%
  • Accuracy 0 to 50%: ±2%

                           50 to 100%: ±3%

  • Resolution 0 to 50%: 0.03%

                              50 to 100%: 1%

Electrical Conductivity (Bulk EC)

  • Range 0 to 20 mS/cm
  • Accuracy 0 to 10 mS/cm: ±3%

                            10to 20 mS/cm: ±5%

  • Resolution 0.01mS/cm

Electrical Conductivity (Pore EC)

  • Range 0 to 32 mS/cm
  • Accuracy Calculation by the Hilhorst model is for reference only
  • Resolution 0.01mS/cm

General Parameters

  • Product Model S2108
  • Microcontroller Wio-E5
  • Support Protocol LoRaWAN v1.0.3 Class A
  • Built-in Bluetooth App Tool to change parameters
  • LoRaWAN Channel Plan IN865/EU868/US915/AU915/ AS923/KR920/RU864
  • Max Transmitted Power 19dBm
  • Sensitivity -136dBmSF12 BW=125KHz
  • Communication  Distance 2 to 10 km (depending on gateway  antenna and environments
  • IP Rating IP66
  • Operating Temperature -40 to +85 °C
  • Operating Humidity 0 to 100 %RH (non-condensing)
  • Cable Length 5 meters(The connector in the cable is used to separate the probe for easy installation)
  • Certification CE / FCC / RoHS / TELEC

Battery (Contained in equipment)

  • Battery Life Up to 10 years**
  • Battery Capacity 19Ah (non-rechargeable)
  • Battery Type Standard D-size SOCl2 Battery

A device supports different frequencies and can be configured via the Bluetooth App.

The battery life varies from data upload interval and distance between gateway.

LoRaWAN Frequency

Note: No Frequency limitation. The sensor can be switched to other frequency plans at any time.

S210x Devices are manufactured to support the universal frequency plan from 863MHz ~928MHz in one SKU. That is to say, every single device can support the frequency plans below:

Frequency Plan  Common Name      Sub-band

EU863-870           EU868                           ___

US902-928          US915                Sub-band from 1 to 8

AU915-928         AU915                Sub-band from 1 to 8

AS923                  AS923                 AS923_1, AS923_2, AS923_3, AS923_4

IN865-867          IN865                                    ___

KR920-923         KR920                                   ___

RU864-867        RU864                                  ___

The frequency plan setting is none by default and it will not transmit RF signal until it has been set by App via Bluetooth at the first power-up. And it can be changed to other frequency plans at any time.

Applications:

  • Agriculture Irrigation, Greenhouse, Garden Planting, Drought Monitoring, Turf and Lawn Management

Documentations:

Package Includes:

  • 1 x Sensor Node
  • 1 x Bracket
  • 1 x Quick Start Guide
  • 4 x KA4*20mm Self-drilling Screw
